No spark, wiring diagram needed

1996 JEEP CHEROKEE
303,000 MILES • 4.6L • 6 CYL • 4WD • AUTOMATIC
Avatar
BILLIAM GABBARD
  • MEMBER
  • 1 POST

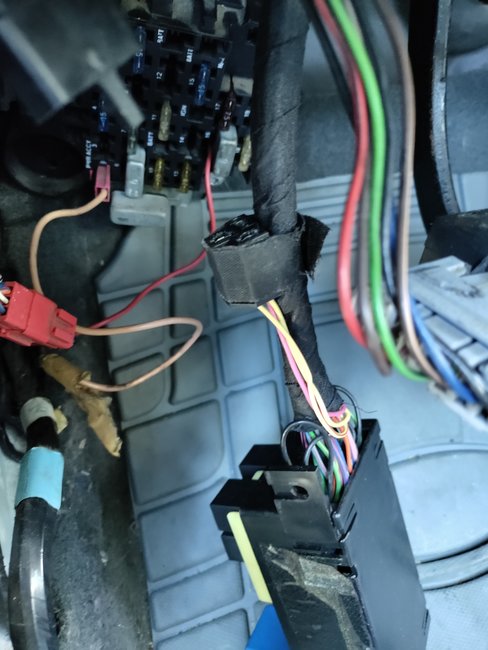

My vehicle was stolen and the person disabled it by removing a wire (or wires) from under the dash, I'm almost certain there are single wires from the fuse box that is missing. I found a plug that isn't plugged into anything but I have no idea where it plugged into nor can I find anything that it plugs into. can you help me with some wiring schematics or with some insight to where these wires plug into?
Image (Click to enlarge)
Attached Media
May 29, 2021 at 3:53 AM
Advertisement
Avatar
AL514
  • ✓Experienced Mechanic
  • 5,644 POSTS
Hello, sorry to hear about your bad experience there. That black plug with the 2 tan wires and the pink one from what i can see, that looks like a test point by the way it's taped up against the harness like that. Can you provide some more pictures of the fuse panel, and the back of it if possible to get a better look at what happened?
Images (Click to enlarge)

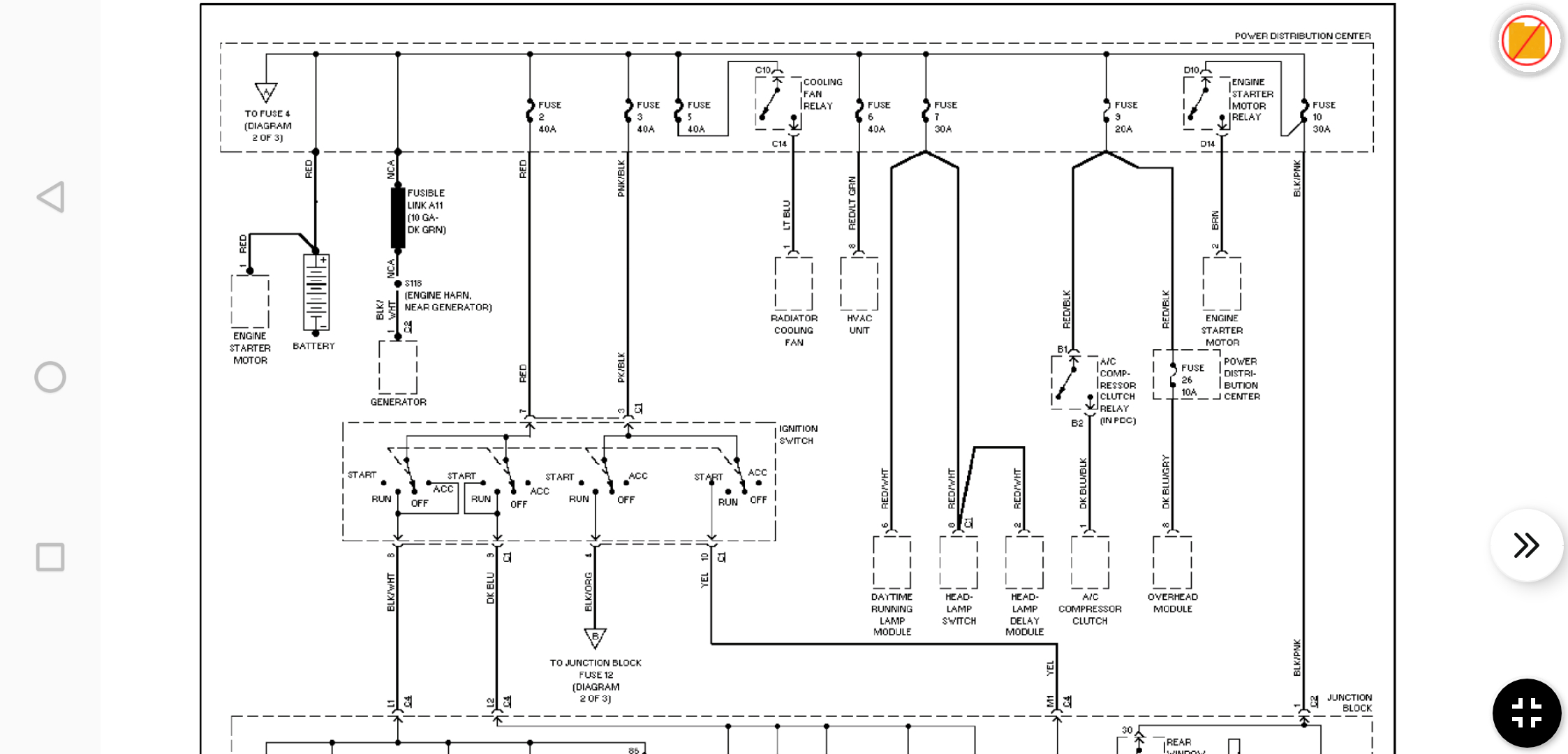

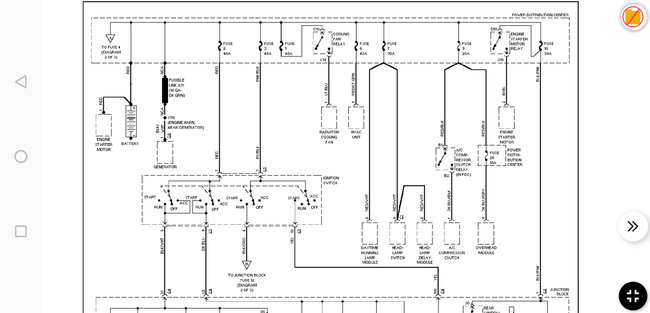

Professional Diagram for 2CarPros Members
Click here to log in and view diagram.

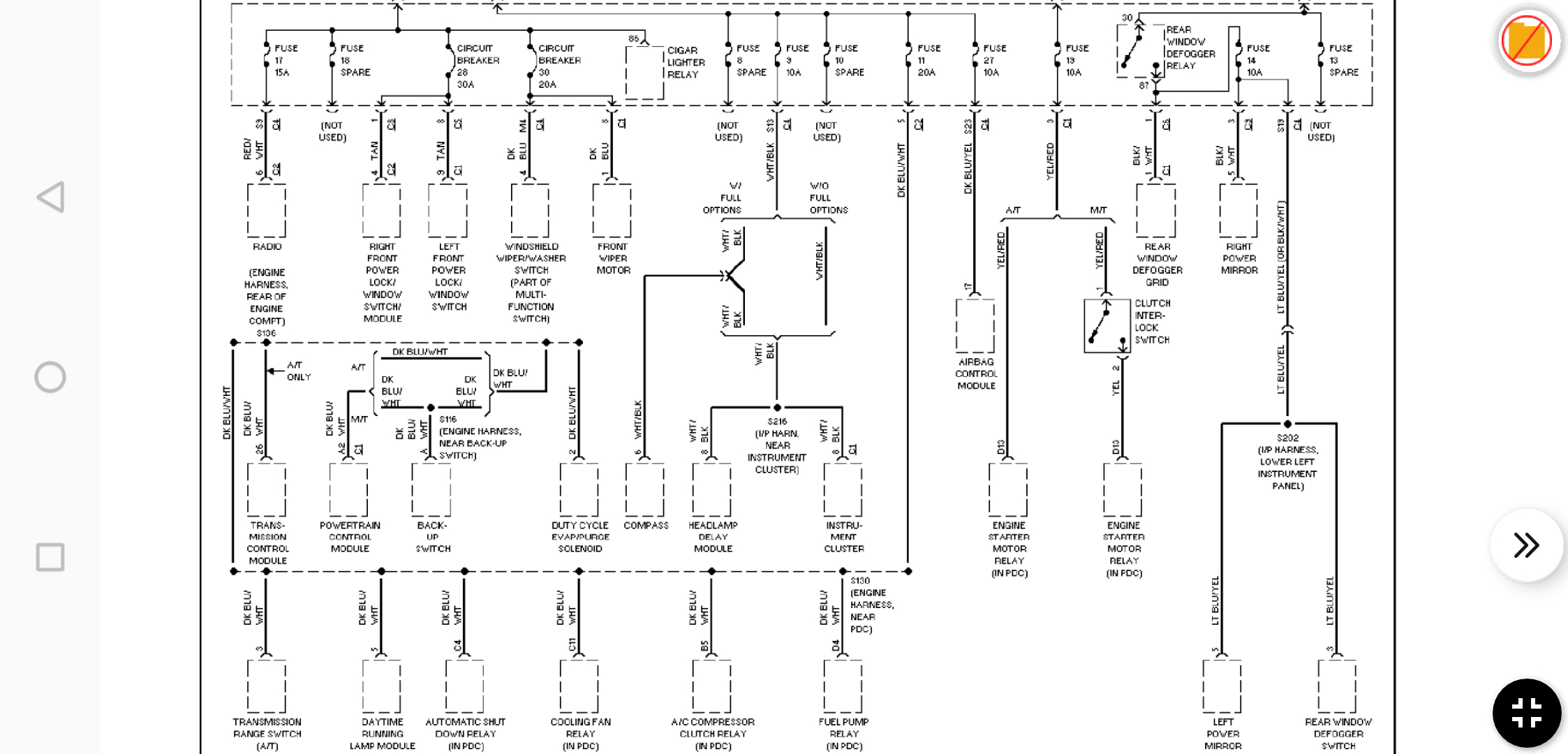

Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
