Tachometer screen is dead

2005 JEEP GRAND CHEROKEE
155,567 MILES • 4.7L • V8 • 4WD • AUTOMATIC
Avatar
SHOEY MCGRIZZLY
  • MEMBER
  • 3 POSTS
The screen located on the tachometer that would show mileage, error codes, door ajar, is dead. I looked at some fuses and they are all fine. I did the hold reset button and it still did not come on. Where is the specific fuse for it or would I just have to replace a bulb or something? I would have just replace the whole dash, but I want to make sure it wont happen again.
Jul 30, 2016 at 8:04 AM
Advertisement
Avatar
RIVERMIKERAT
  • ✓ASE Certified Mechanic
  • 6,110 POSTS
  • ASE Certified Mechanic
Is this the Laredo or the Limited?
Jul 30, 2016 at 8:27 AM
Avatar
SHOEY MCGRIZZLY
  • MEMBER
  • 3 POSTS
Limited.
Jul 30, 2016 at 8:45 AM
Avatar
RIVERMIKERAT
  • ✓ASE Certified Mechanic
  • 6,110 POSTS
  • ASE Certified Mechanic

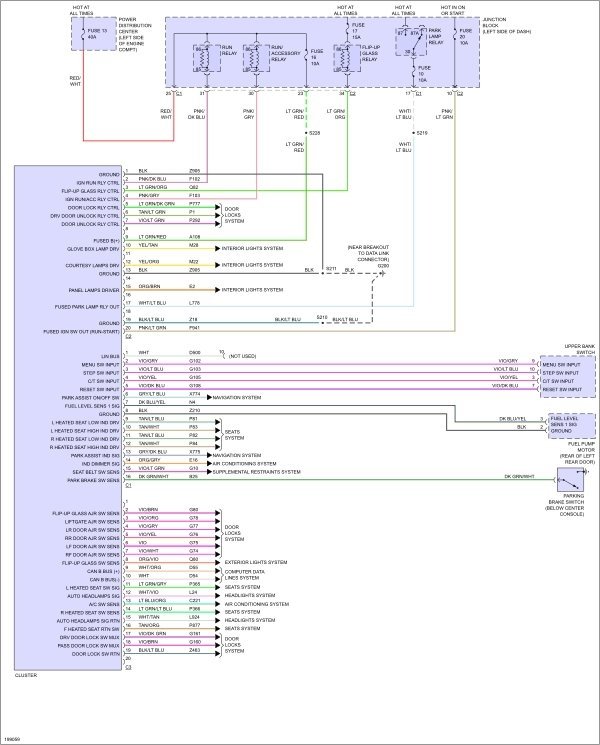

Here is a schematic that shows everything for the instrument panel. Find and trace out the affected circuit to locate the problem.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jul 30, 2016 at 9:08 AM
Avatar
SHOEY MCGRIZZLY
  • MEMBER
  • 3 POSTS
All the fuses and stuff looks fine.
Jul 30, 2016 at 9:28 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
Then the instrument cluster has gone bad and need replacing.

Best, ken
Aug 10, 2016 at 11:24 AM
