2000 Volvo S40 Turn Signal Wiring

Tiny
BRYAN2529
  • MEMBER
  • 2000 VOLVO S40
Electrical problem
2000 Volvo S40 4 cyl Front Wheel Drive Automatic

I am trying to replace the driver side turn signal for a 2000 Volvo S40. The wires going to the turn signal were bluntly cut. I have the turn signal assembly. I need the wire harness that attaches these 3 wires to the bulb socket. I do not have the actual socket that the bulb goes into either. On the passenger side it looks like a black plastic piece attached to three wires that fits into a rectangular slot in the circular gray piece that holds the actual orange turn signal bulb. I am having trouble finding this wire harness and bulb socket because I do not know the correct part names. Any help in naming them and finding them would be greatly appreciated. I have attached a picture of the part from the working passenger side with turn signal assembly removed to show the wiring and bulb. Thanks.
Thursday, April 9th, 2009 AT 11:36 AM

3 Replies

Tiny
JAMES W.
  • MECHANIC
  • 2,394 POSTS

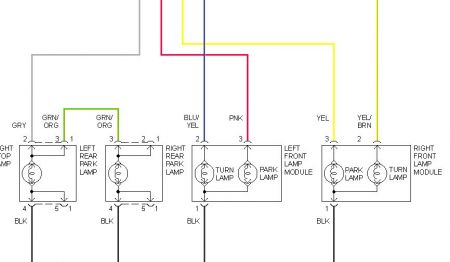

I'm not quite sure what you need, but lets start with the wiring diagram.


https://www.2carpros.com/forum/automotive_pictures/248092_volvo_turn_circuit_1.jpg

Was this
answer
helpful?
Yes
No
+3
Thursday, April 9th, 2009 AT 2:36 PM
Tiny
BRYAN2529
  • MEMBER
  • 2 POSTS
Yes, I have all 3 wires coming all the way to the turn signal assembly. I just need the wire harness for these 3 wires and the bulb socket that the wire harness attaches into.
Was this
answer
helpful?
Yes
No
Thursday, April 9th, 2009 AT 4:05 PM
Tiny
JAMES W.
  • MECHANIC
  • 2,394 POSTS
NAPA and most major parts stores usually carry a selection of "universal" lamp sockets. For a Volvo, it may be difficult, but they should have something you can use
Was this
answer
helpful?
Yes
No
Thursday, April 9th, 2009 AT 4:30 PM
