Hi! I am seeking a wiring diagram. An ECU pinout, or ecu wiring schematic for the 2008 Chevy Aveo LS sedan, Manual transmission. I have called dealers, who told me to call GM, who told me to call a dealer, who told me they can't give out wiring schematics. So, I've been getting the runaround. All I need is a pdf or jpeg of the ecu wiring. Can ya'll please help? I appreciate the time and any information.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, October 14th, 2020 AT 2:47 PM (Merged)
Tiny
SATURNTECH9
  • MECHANIC
  • 30,869 POSTS

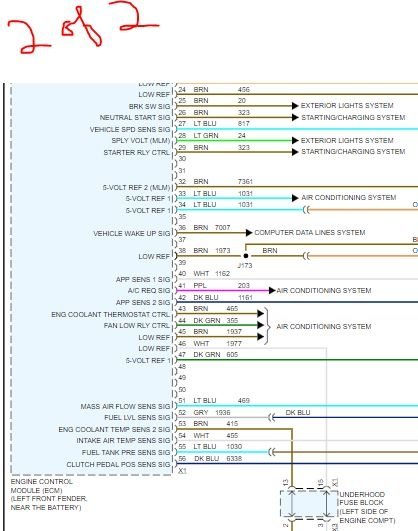

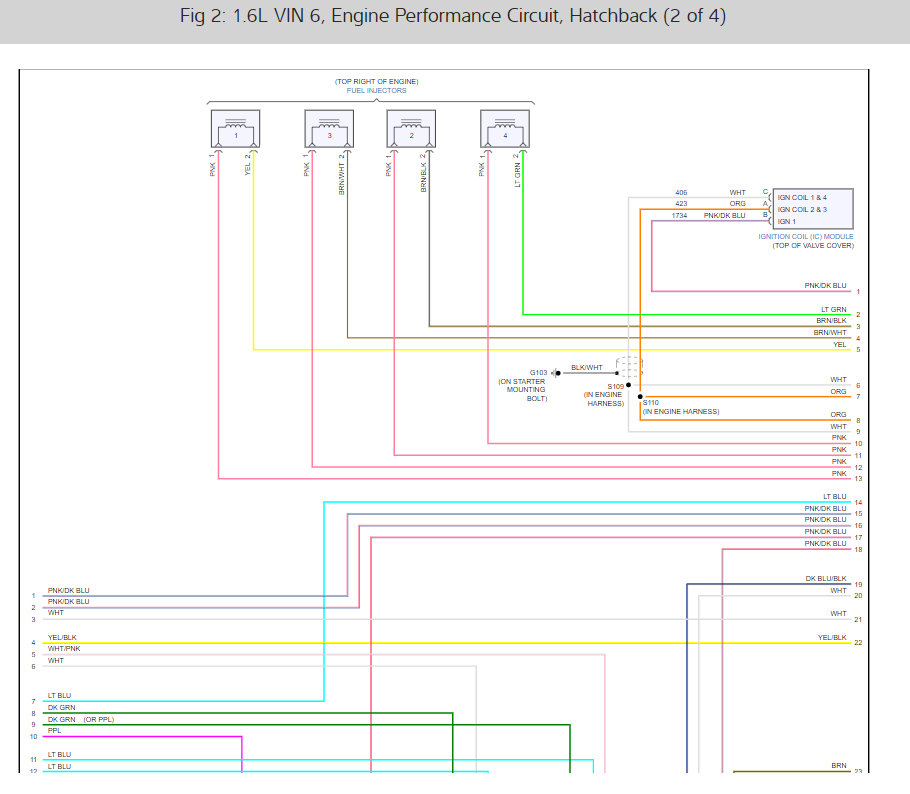

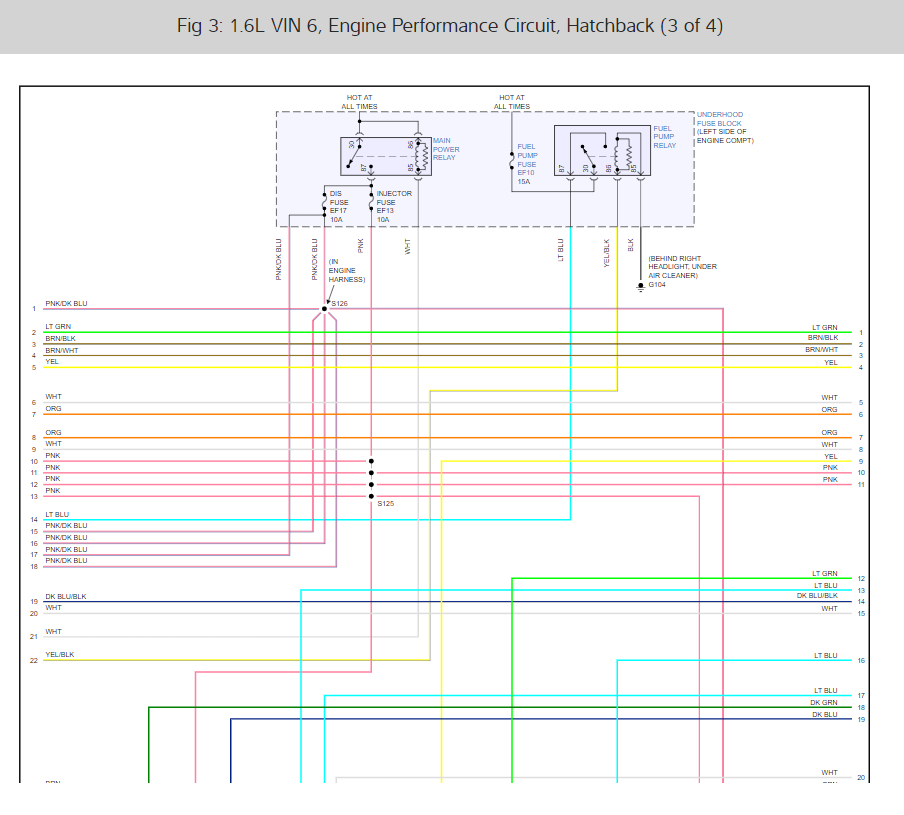

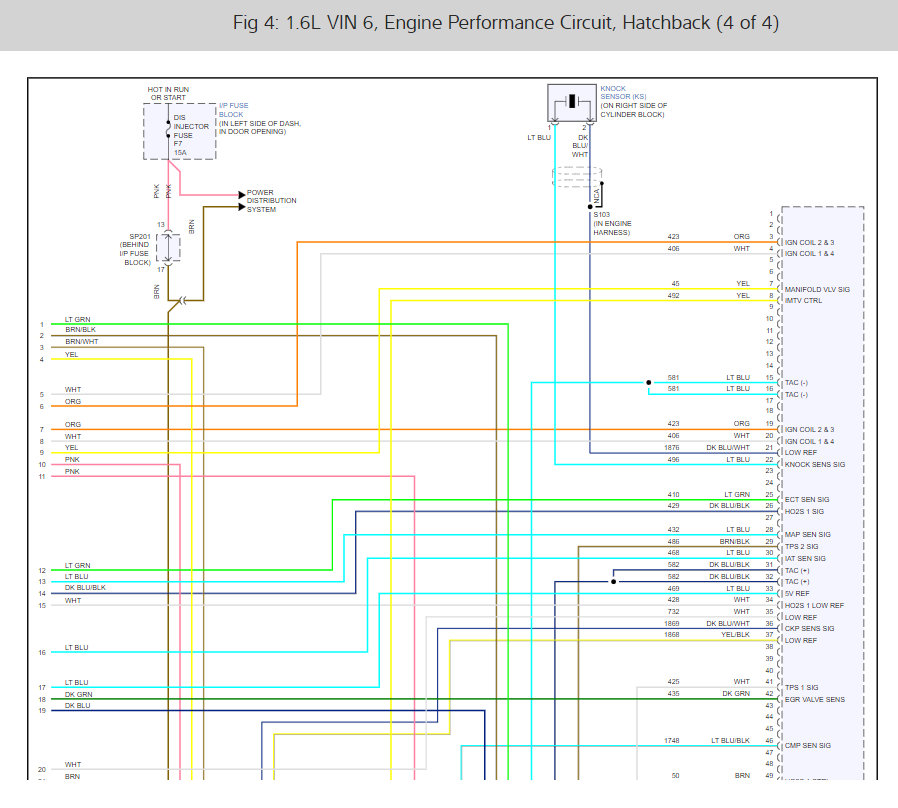

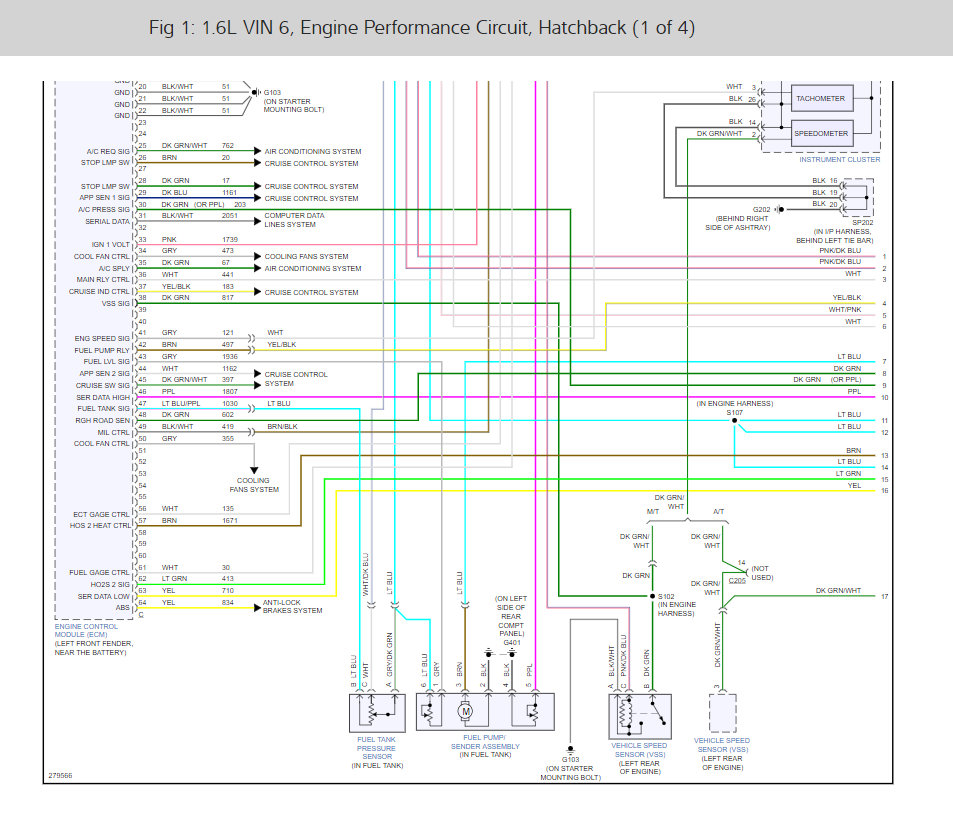

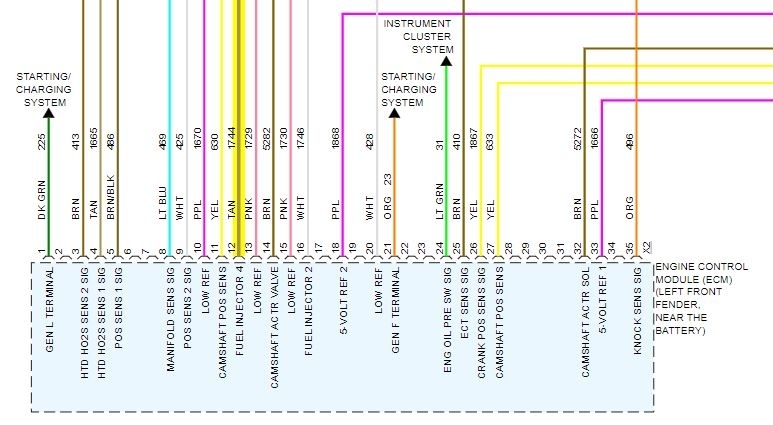

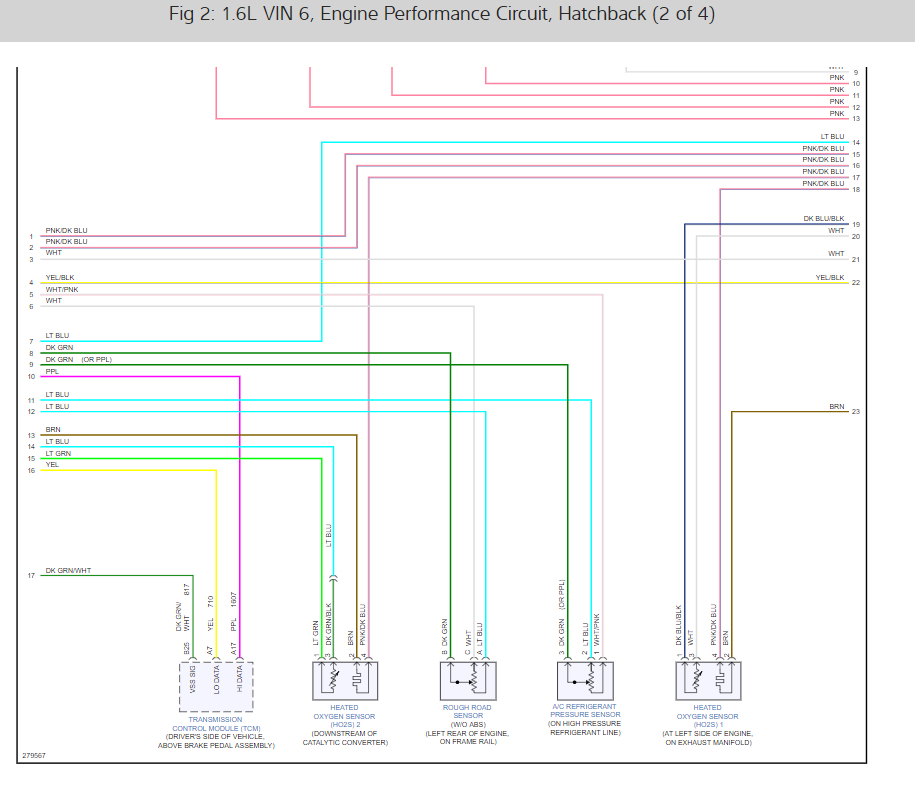

Here is the wiring diagrams for the engine ECU and a guide to help you check the connections.

https://www.2carpros.com/articles/how-to-check-wiring

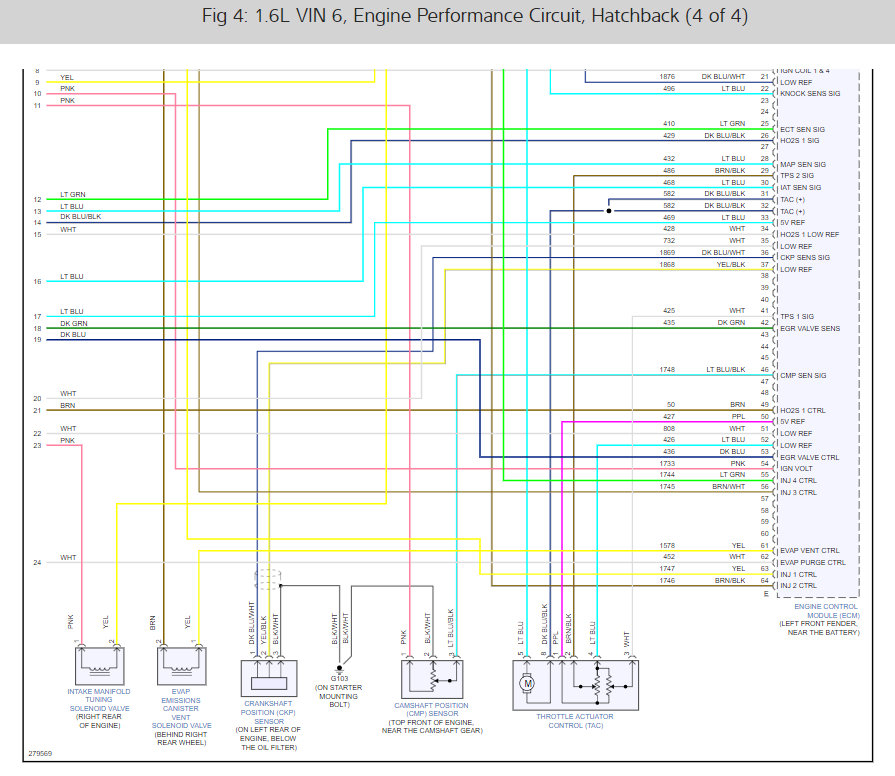

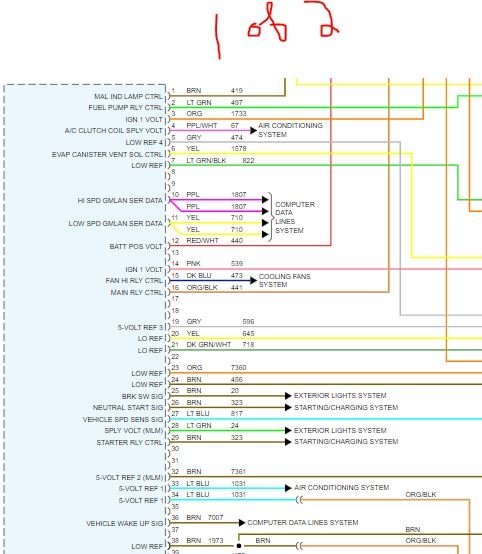

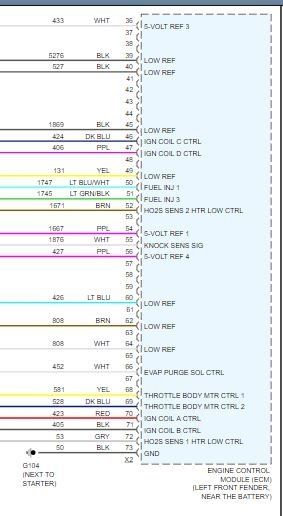

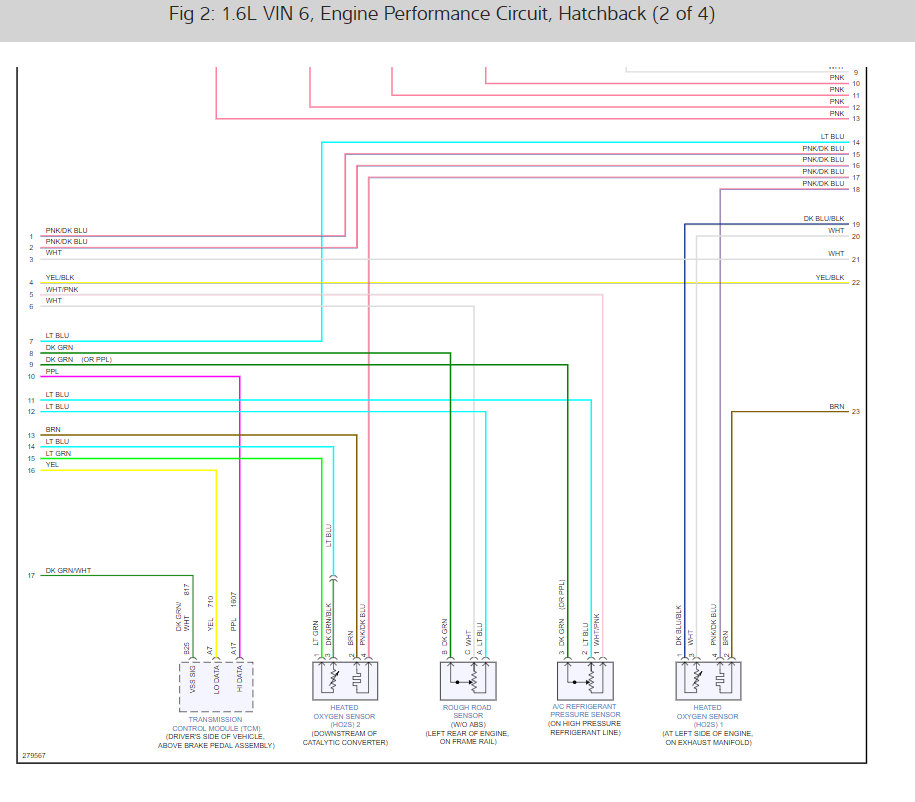

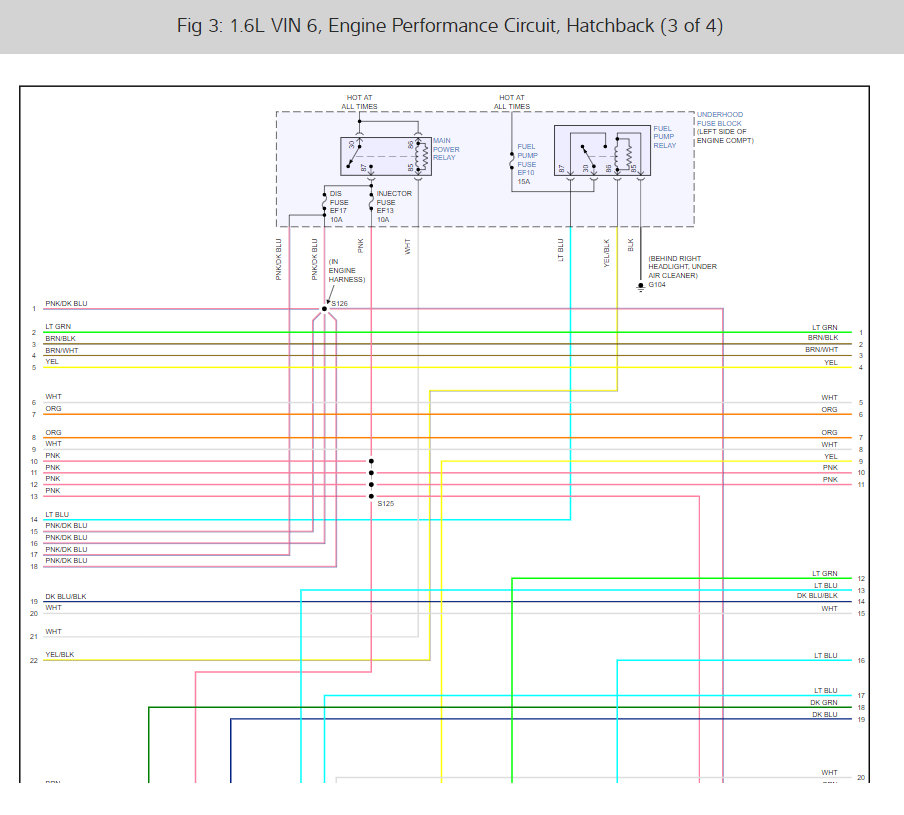

Check out the diagrams (Below). Please let us know what happens.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+6
Wednesday, October 14th, 2020 AT 2:47 PM (Merged)
Tiny
BOBBYPUE DOPEHI
  • MEMBER
  • 40 POSTS
If there's a electrical wiring diagram for my car this would be greatly appreciated.
Was this
answer
helpful?
Yes
No
Wednesday, October 14th, 2020 AT 2:47 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,700 POSTS
Welcome back:

Honestly, there are so many different variations based on specific components. There isn't one that covers the entire vehicle. I would be sending hundreds.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, October 14th, 2020 AT 2:47 PM
Tiny
BOBBYPUE DOPEHI
  • MEMBER
  • 40 POSTS
Ecm, and ignition switch wiring under dash board?
Was this
answer
helpful?
Yes
No
Wednesday, October 14th, 2020 AT 2:47 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,700 POSTS

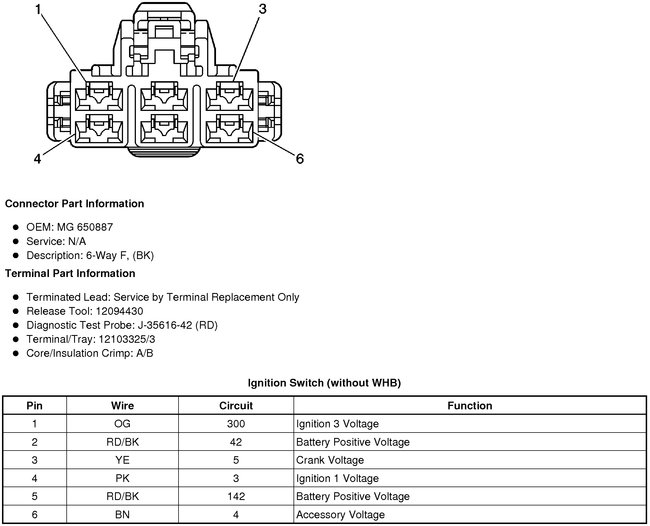

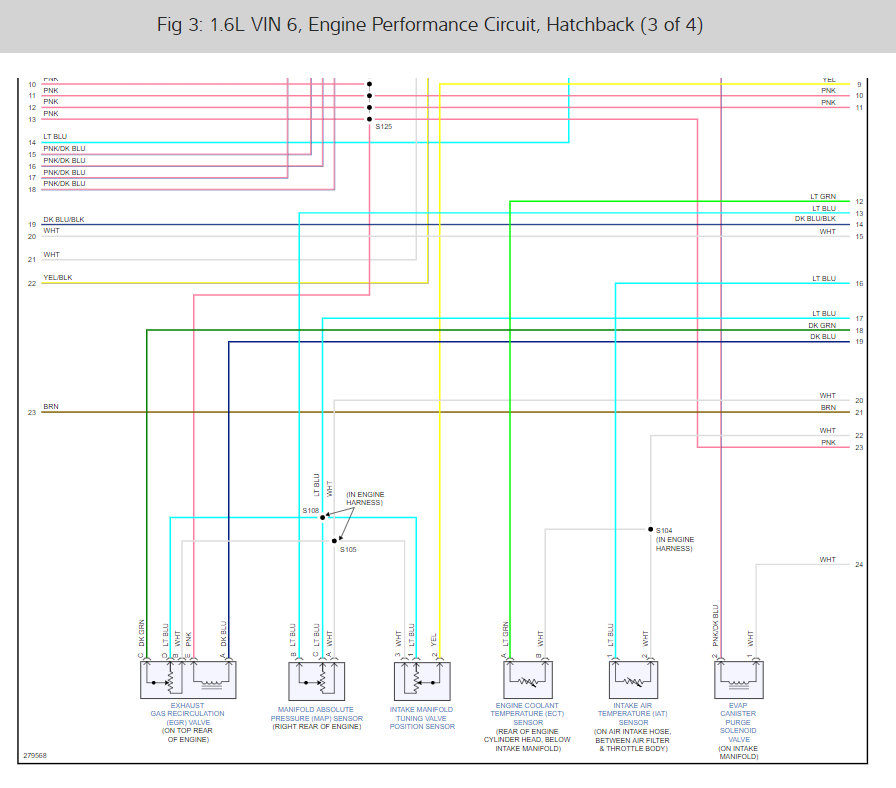

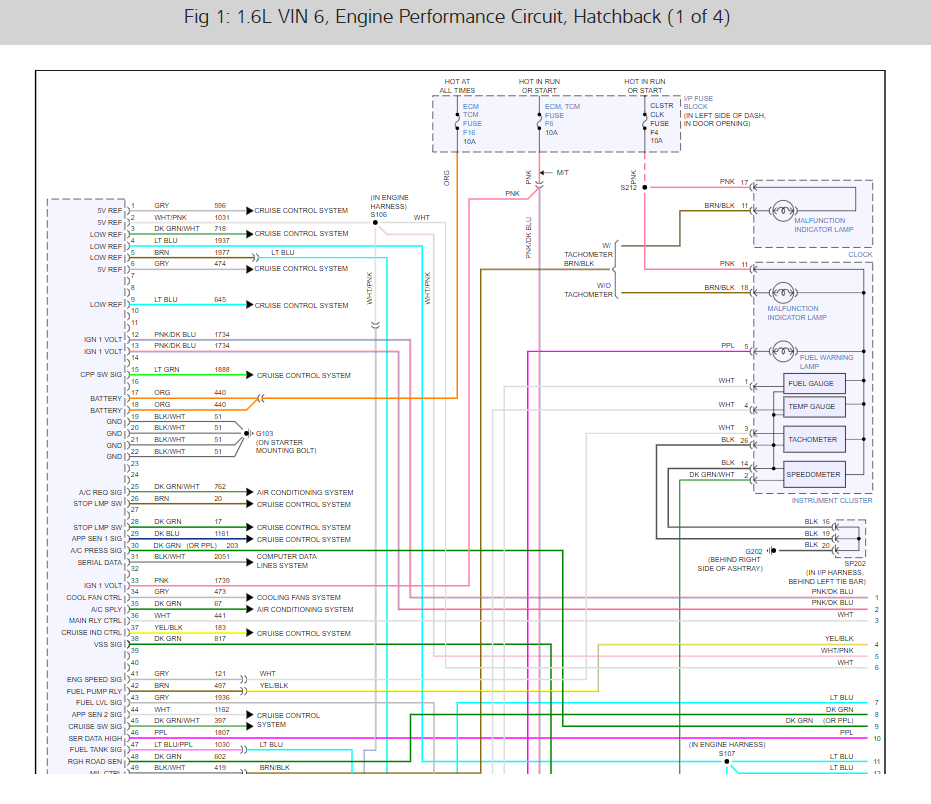

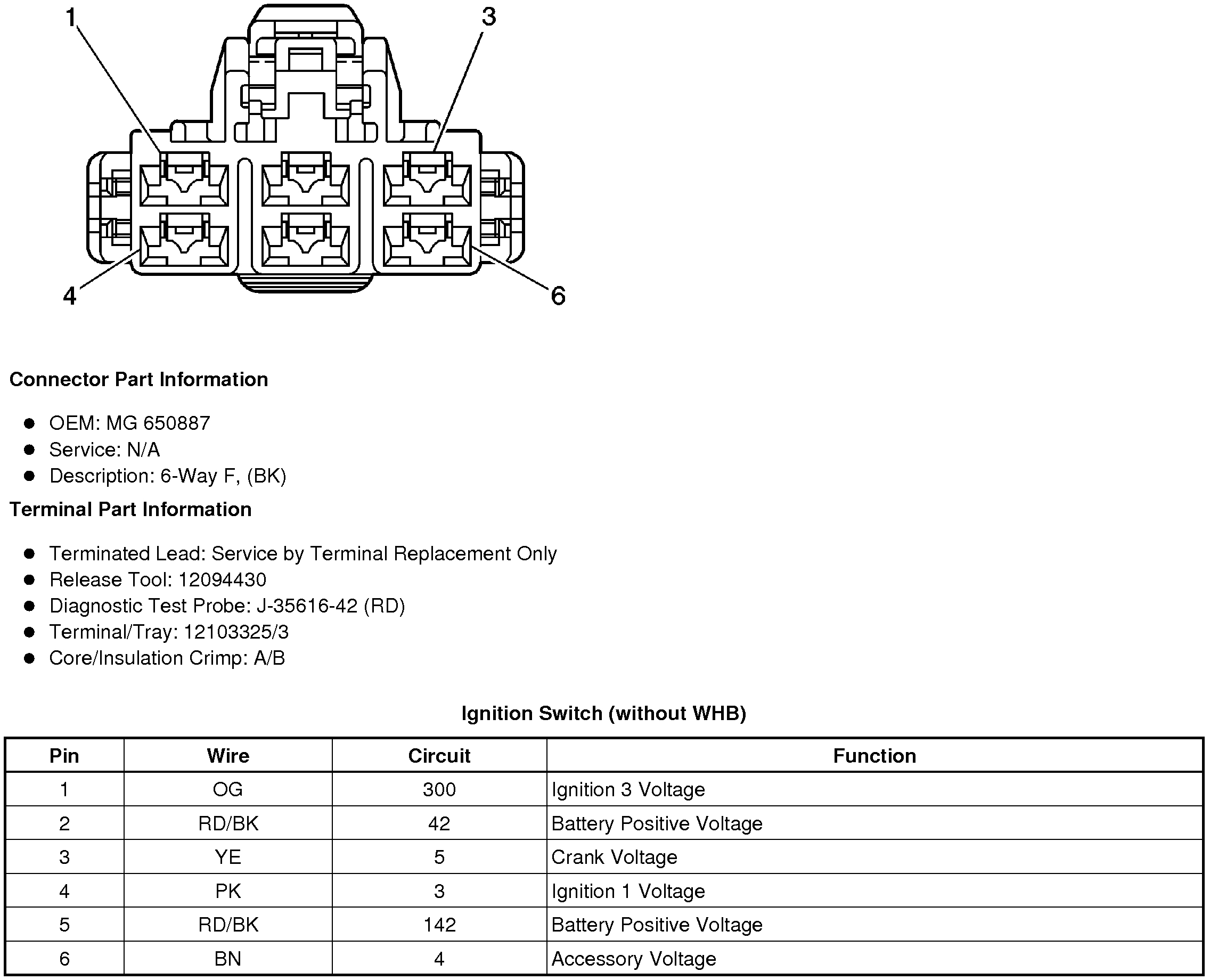

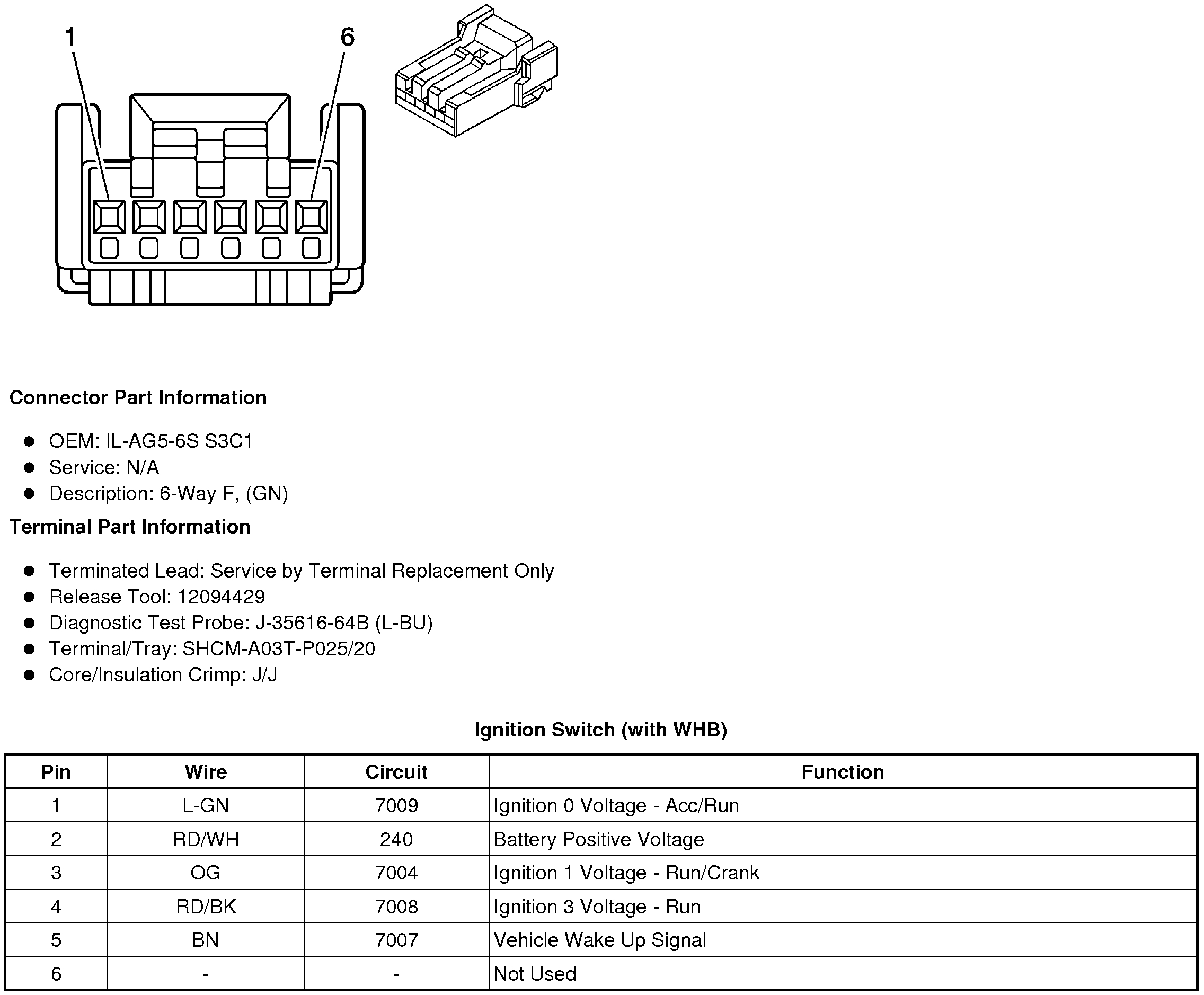

Let me know if this helps. There are multiple pics. The last 2 are the ignition pins. Note, one is for with and one without WHB. The last one is without (pic 6). Basically "with WHB" requires a CANdi interface module for the Tech 2 to communicate with. Nothing more than an industry protocol change in OBD2 interface which requires the module to work.

I hope this is helpful.

Joe
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+1
