Can I get the fuel line diagram?

DANNY1231

MEMBER
2003 CHEVROLET TAHOE
4.8L
V8
4WD
AUTOMATIC
150,000 MILES

I bought a truck with gas tank out I need a fuel line diagram.

Saturday, October 5th, 2024 AT 5:44 PM

1 Reply

KEN L

MASTER CERTIFIED MECHANIC
47,702 POSTS

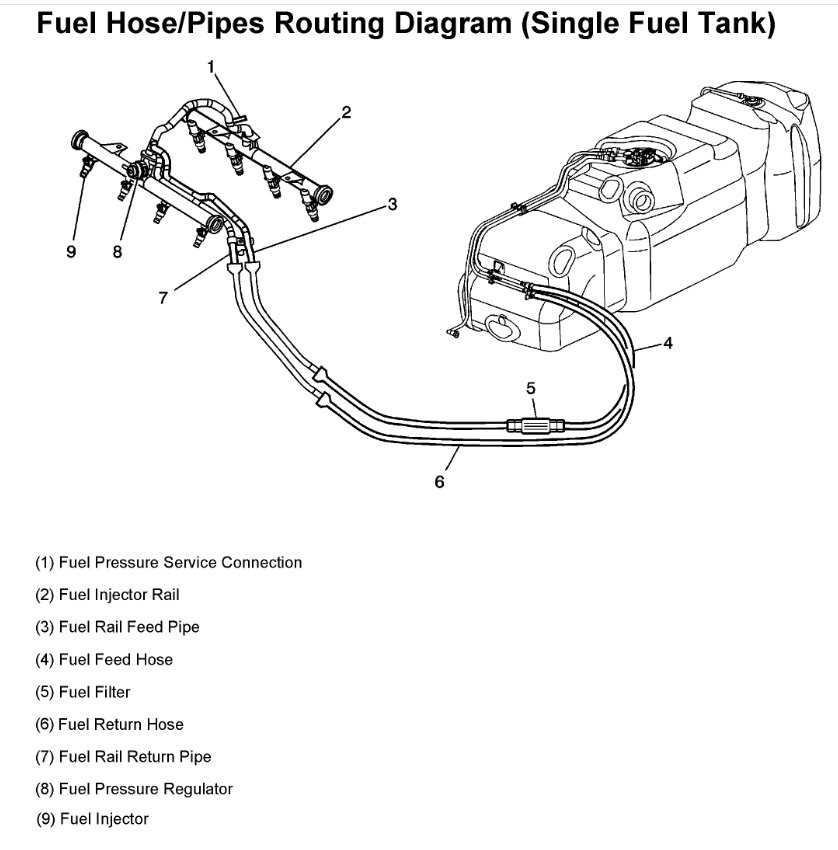

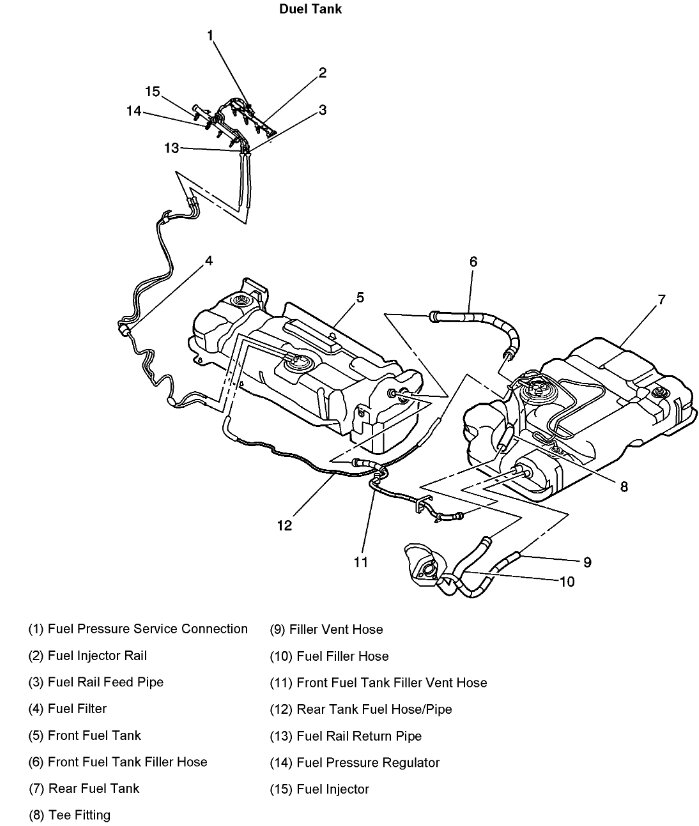

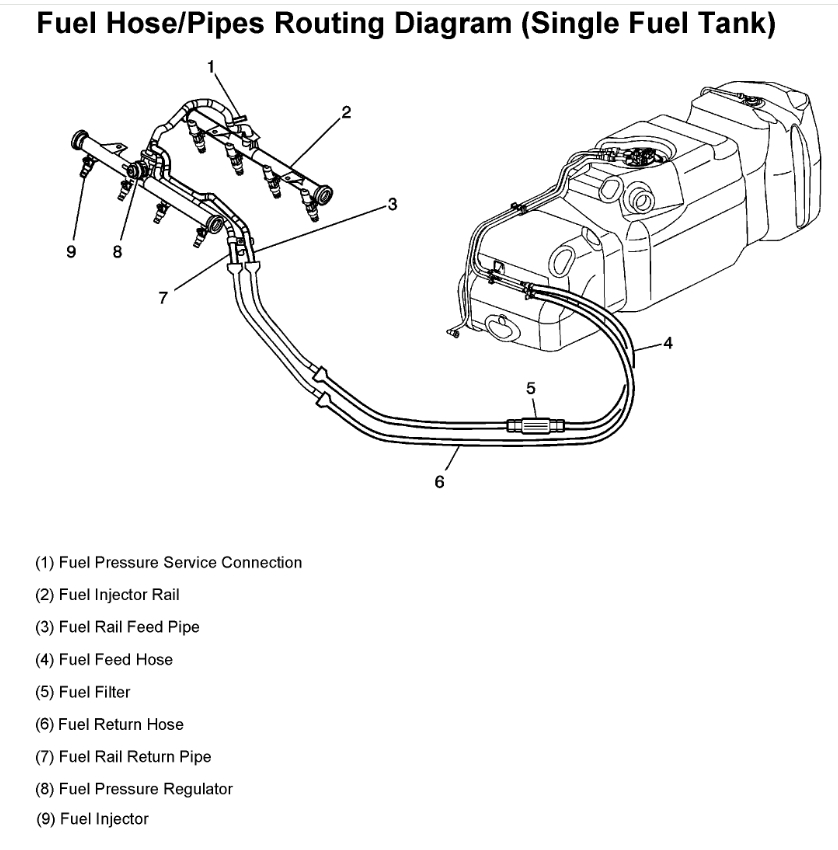

Sure, here are the fuel lines for the single and dual tanks. Check out the images (below). Let us know if you need anything else.

Images (Click to make bigger)
