Where exactly is the turn signal flasher located? I've heard it's under the steering column, I've looked, but don't see it. I'm talking about the little two prong round device.

I looked on the fuse panel on the left side of the I/P no flasher unit there (we are talking about one of those two prong round things they keep trying to sell me at the auto parts store arn't we?)

I've pulled the fuse panel out a little bit, there is a plastic cover that connects to the fuse panel itself, can't see any flasher behind that. I've even taken the shrouds off under the wheel and looked up behind everything, no luck there either.
Nov 29, 2009 at 9:40 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • CAR REPAIR CONTRIBUTOR
  • 54,189 POSTS
Hello,

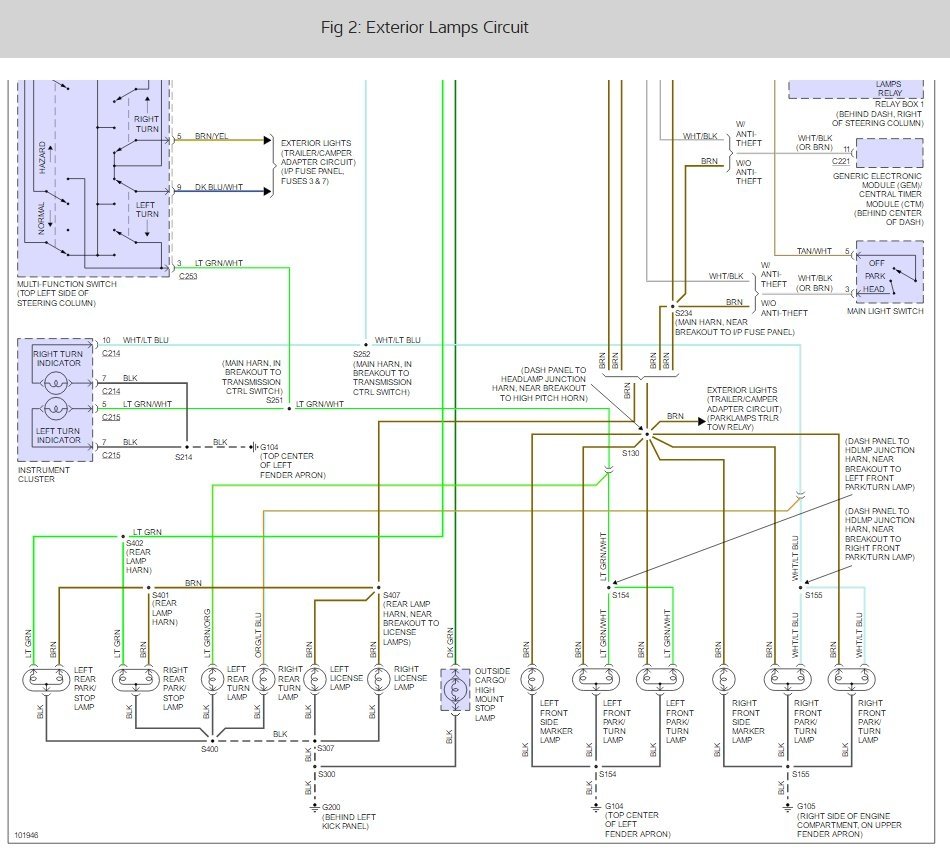

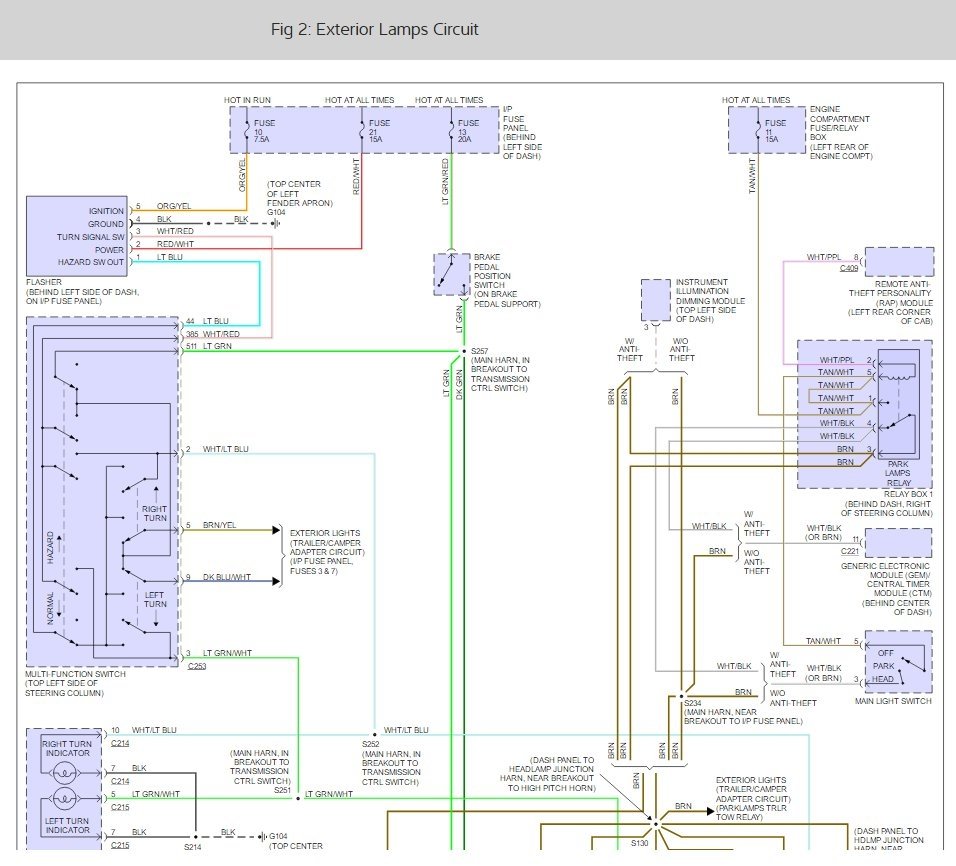

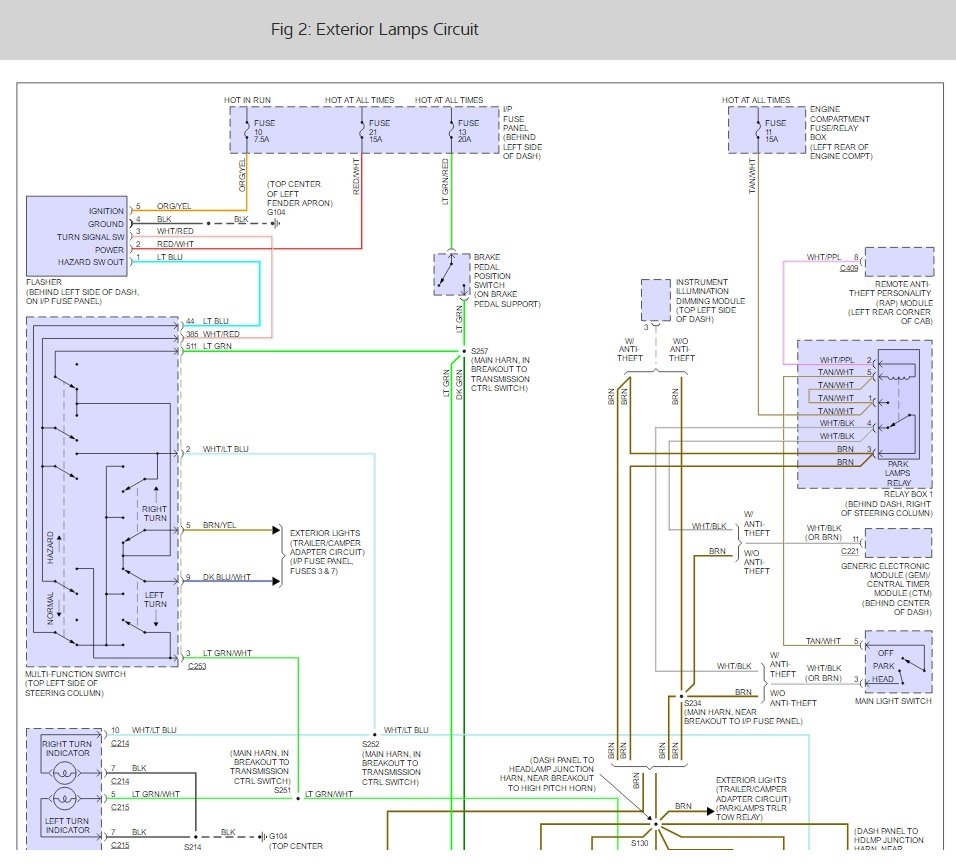

I have found the turn signal wiring and flasher location (below) here is a guide on how to check the wiring

https://www.2carpros.com/articles/how-to-check-wiring

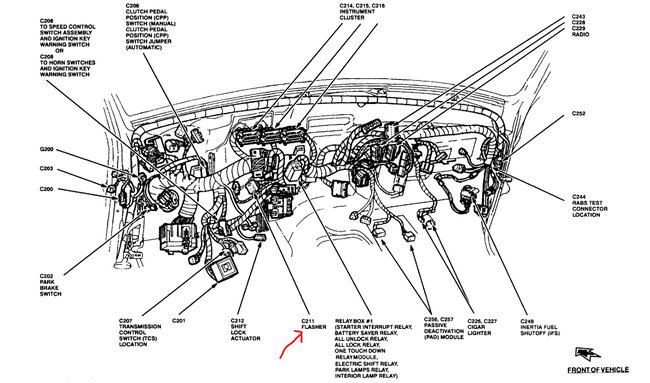

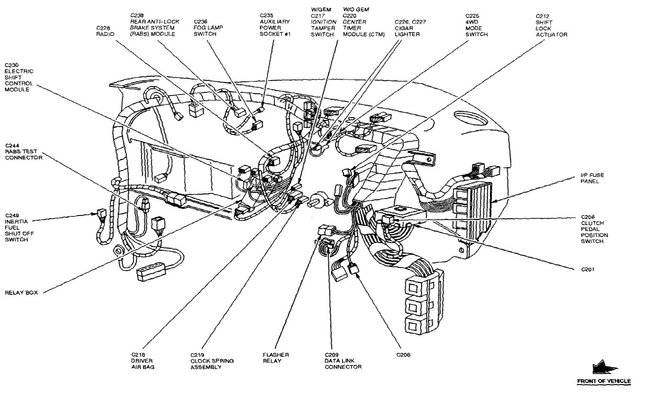

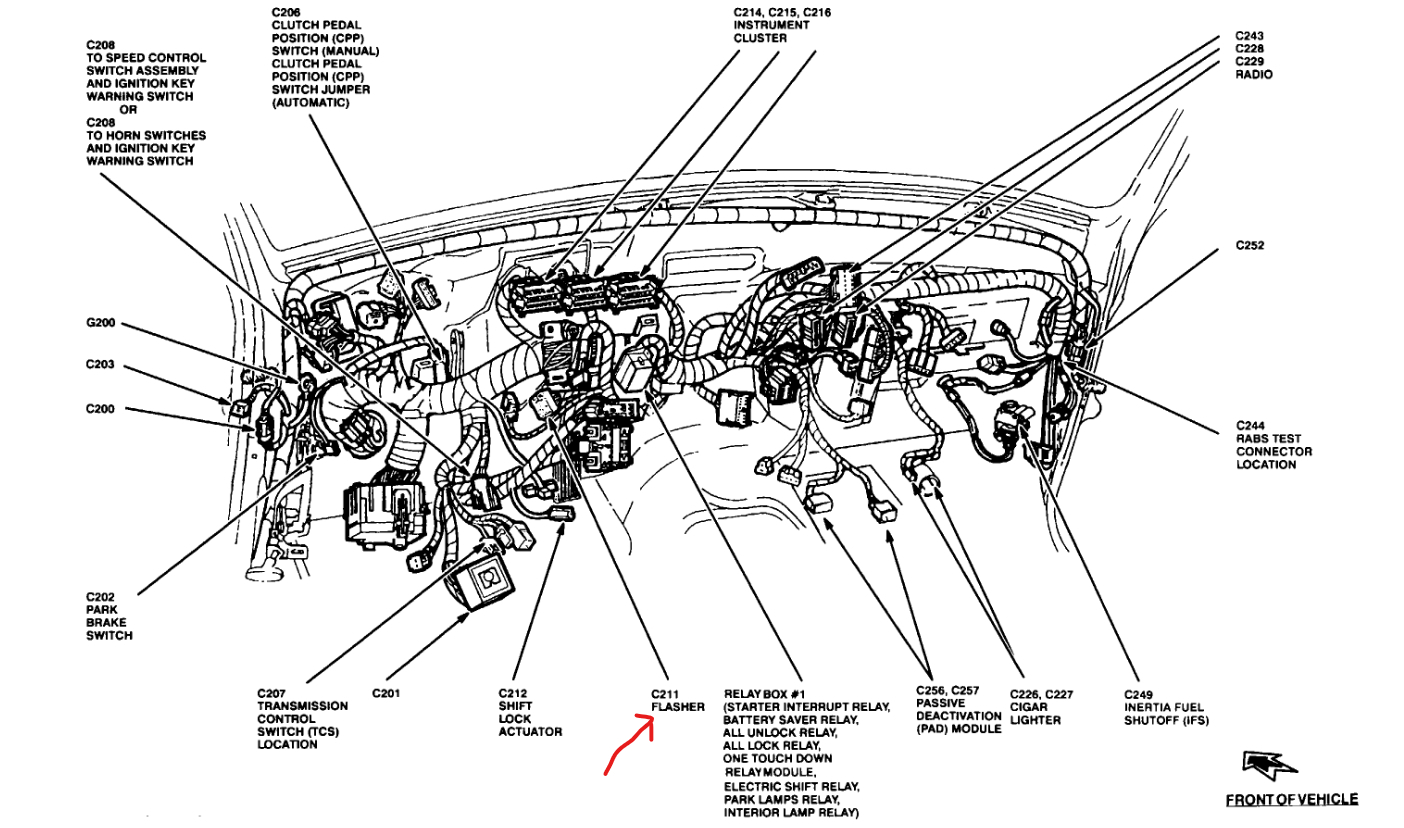

I see the turn flasher which is under the dash on the drivers side. Check out the images (below). Let us know how it goes



Jun 2, 2021 at 1:51 PM
