Serpentine belt diagram

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
Hello,

Here is a guide and some diagrams (below) to help you get the job done. This guide will give you an idea the diagrams will be fore your car.

https://www.2carpros.com/articles/replace-serpentine-belt

This guide may help too.

https://www.2carpros.com/diagrams/chevrolet/impala/2004

More (below). Please let us know if you need anything else to get the problem fixed.

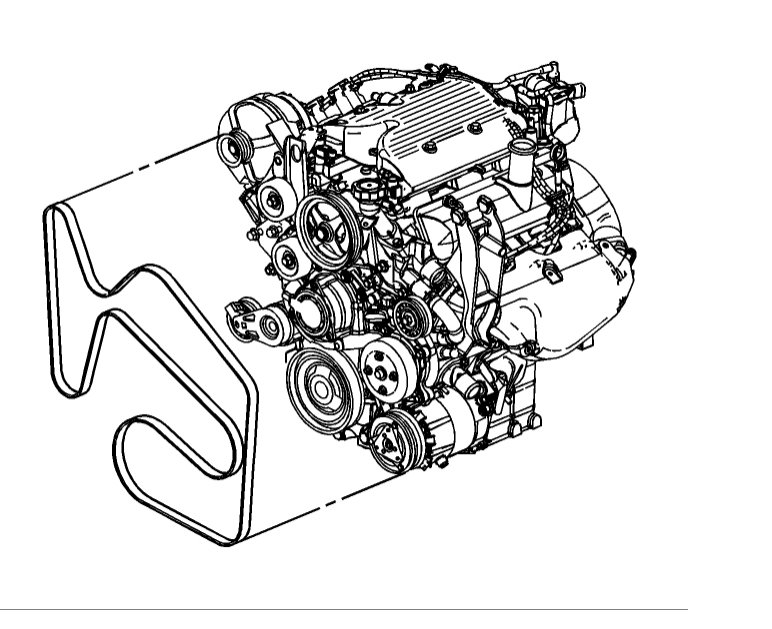

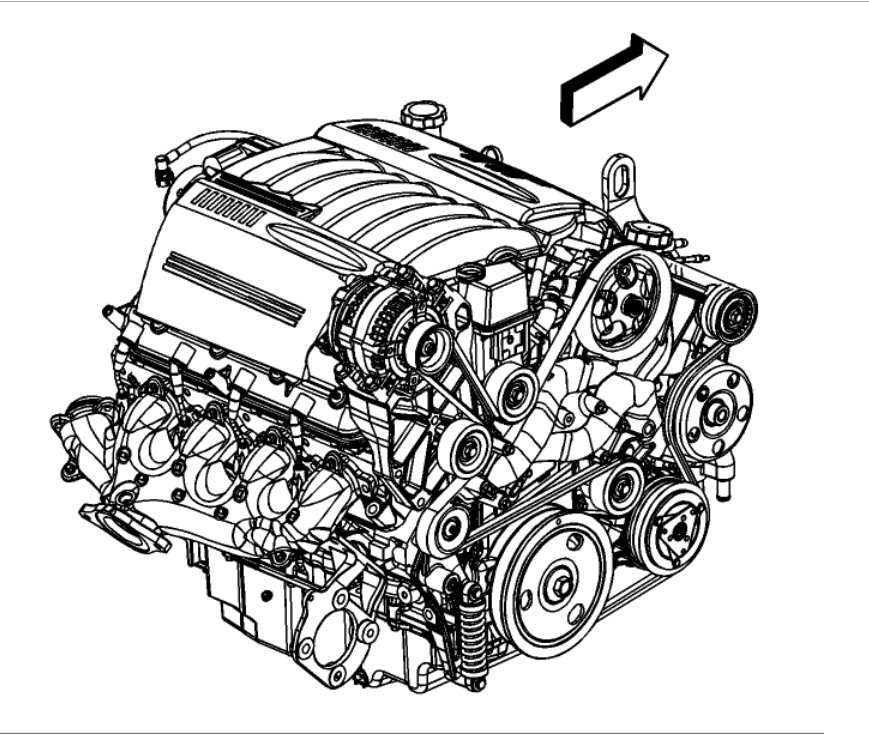

Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Friday, June 19th, 2020 AT 10:23 AM (Merged)
Tiny
EAGLE1966
  • MEMBER
  • 1 POST
  • 2003 CHEVROLET IMPALA
  • 6 CYL
  • FWD
  • AUTOMATIC
  • 90,000 MILES
I need a diagram on how to put the belt back on. The engine is a 3.8
Was this
answer
helpful?
Yes
No
Friday, June 19th, 2020 AT 10:23 AM (Merged)
Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS
See below.


https://www.2carpros.com/forum/automotive_pictures/12900_belt_2.jpg

Was this
answer
helpful?
Yes
No
+1
Friday, June 19th, 2020 AT 10:23 AM (Merged)
