Vacuum hose diagram

Tiny
RUDOLPHTHERED
  • MEMBER
  • 2001 MERCURY SABLE
  • 3.0L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 160,000 MILES
I need to know what kind of hoses are broken. There is one hose that runs along the top side of the fire wall. It looks like it has a splitter at the end but not sure if it was a mistake. It is connected to what looks like a vacuum valve(?) Which that is connected to the EVAP system.


If someone could please tell me or post a picture I would greatly appreciate it.
SPONSORED LINKS
Tuesday, December 5th, 2017 AT 3:13 PM

1 Reply

Tiny
SATURNTECH9
  • MECHANIC
  • 30,869 POSTS

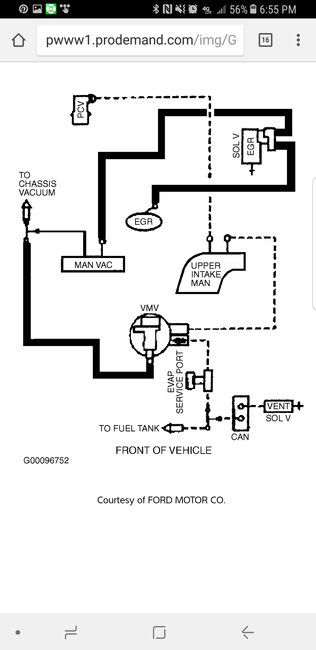

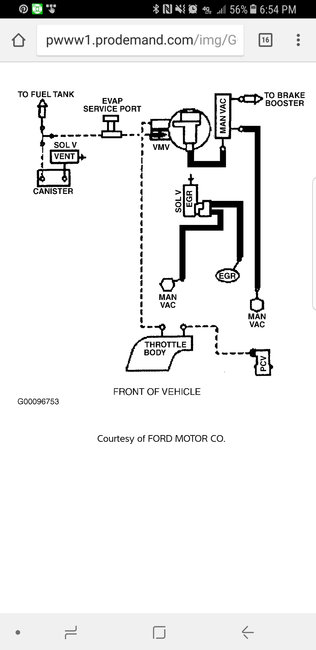

The diagram on the left is the dual overhead cam and the one on the right is for the single cam engine. Let me know what you find also posting some pictures of what you got going with those goes would really help.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
-2
Tuesday, December 5th, 2017 AT 6:57 PM
