Camshaft timing

1990 TOYOTA PICKUP
236,000 MILES • 4 CYL • 2WD • MANUAL
Avatar
OLDSKOOLRAY
  • MEMBER
  • 3 POSTS
Im replacing the timing chain and both sprockets on my 22RE toyota 4cyl. I already have the mortor at tdc.my question is if the marking on the sprockets if they both need to be facing inner top and bottom each other or one facing at 12 oclock and bottom at 6oclock line up.
Mar 8, 2009 at 9:44 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
RASMATAZ
  • CAR REPAIR CONTRIBUTOR
  • 75,992 POSTS

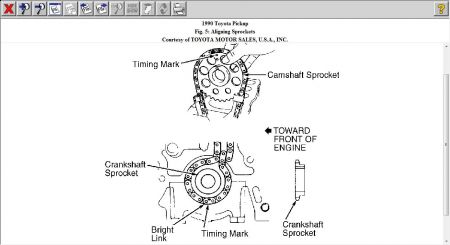

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.


https://images.2carpros.com/forum/automotive_pictures/12900_timing_21.jpg

Mar 8, 2009 at 9:58 PM
