2017 Hyundai Elantra Belt Diagram

50,000 MILES
Avatar
BONNIE W. CAMPBELL
  • MEMBER
  • 2 POSTS
Need diagram.
Jan 29, 2019 at 11:35 AM
Advertisement
Avatar
DANNY L
  • ✓Experienced Mechanic
  • 5,648 POSTS
Hello, I'm Danny.

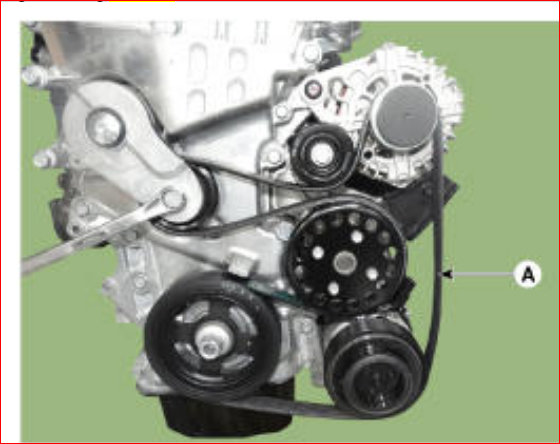

Although you didn't specify if your car is a 1.4, 1.6, or 2.0 liter engine below I've attached a diagram for a 1.4 liter. Here is a tutorial showing how to remove and replace:

https://www.2carpros.com/articles/replace-serpentine-belt

If this doesn't look familiar get back to me with your correct engine size.Hope this helps and thanks for using 2CarPros.
Danny-
Jan 29, 2019 at 1:06 PM
Advertisement
Avatar
BONNIE W. CAMPBELL
  • MEMBER
  • 2 POSTS
It's 2.0.
Jan 29, 2019 at 1:14 PM
Avatar
DANNY L
  • ✓Experienced Mechanic
  • 5,648 POSTS
Hello again,

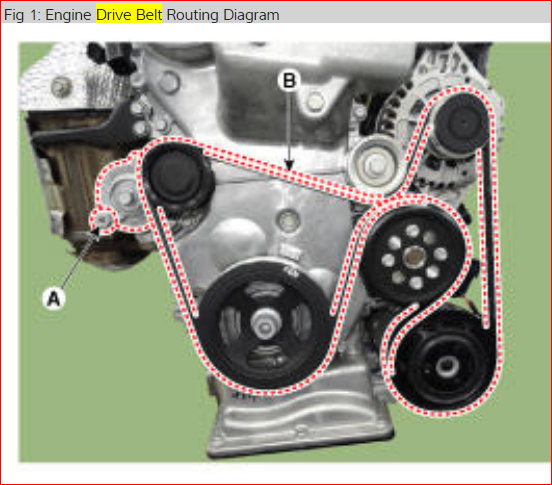

Here is a picture for the 2.0L.
Hope this helps and thanks again for using 2CarPros.
Danny-
Jan 29, 2019 at 2:04 PM
Advertisement
Avatar
CLARA GOTFREDSEN
  • MEMBER
  • 1 POST
Need a vacuum diagram for a 92 s 10 blazer 4 4.3 vortec. I need to go to work. I don't have time to go to the store. Can anyone help?
Jan 19, 2020 at 8:32 PM
Avatar
STEVE W.
  • ✓Experienced Mechanic
  • 15,418 POSTS
Just found your question, Please use this link to ask this as a new question for a new vehicle:

https://www.2carpros.com/questions/new

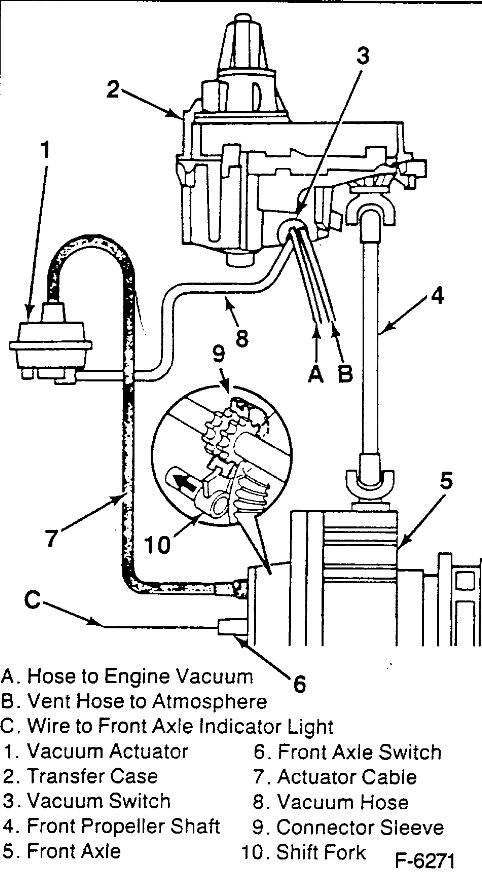

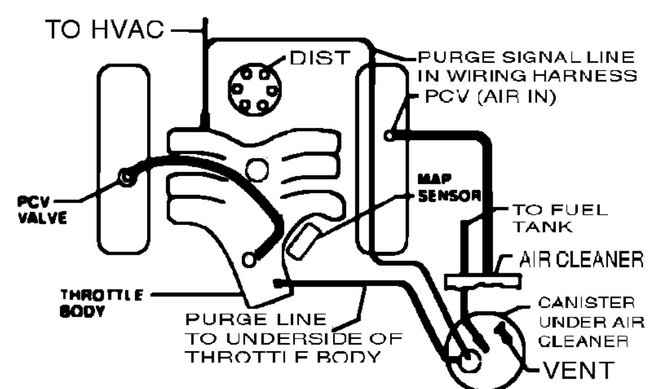

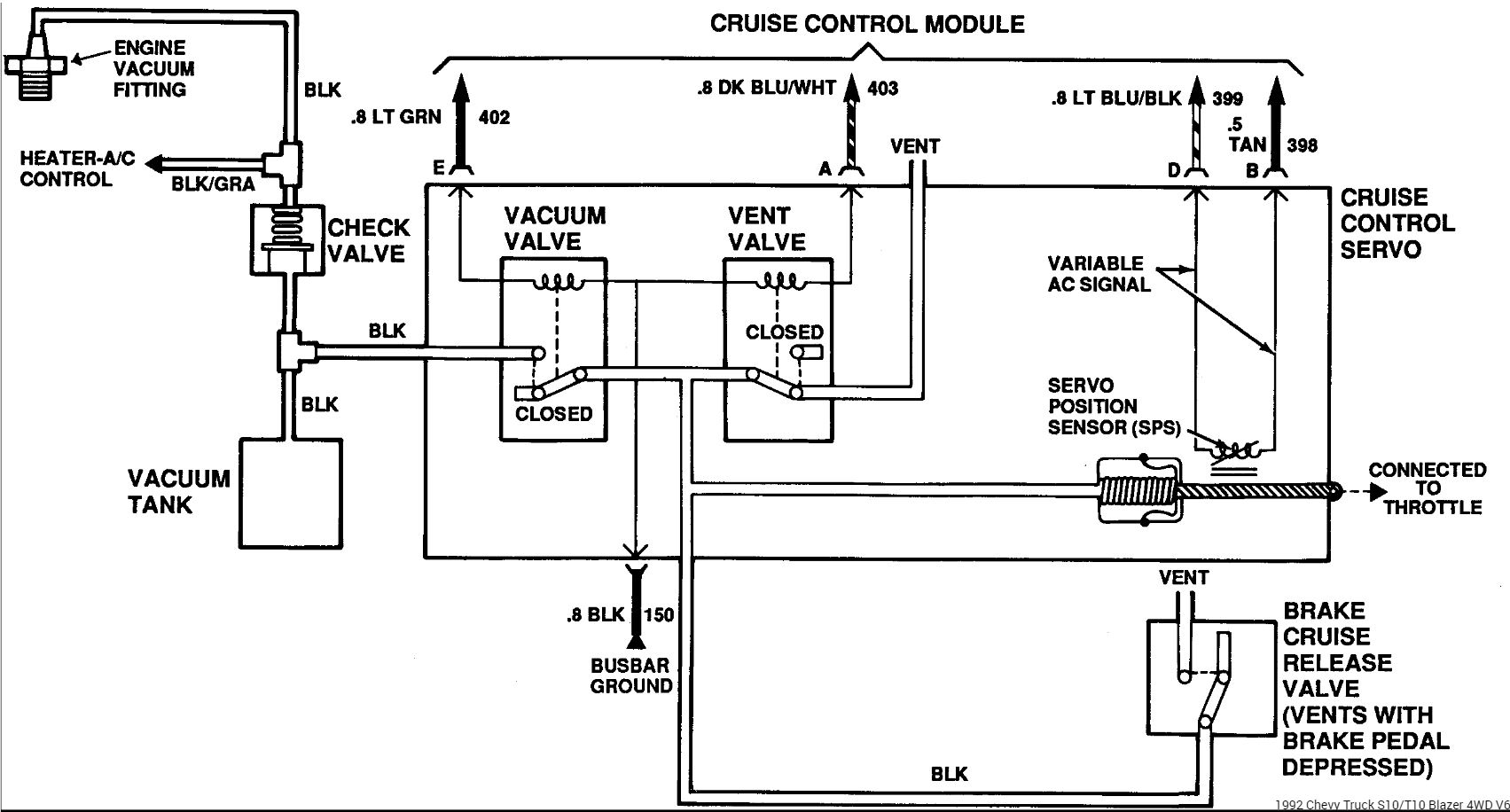

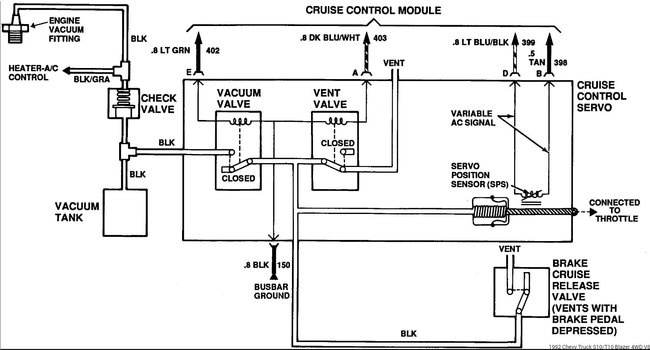

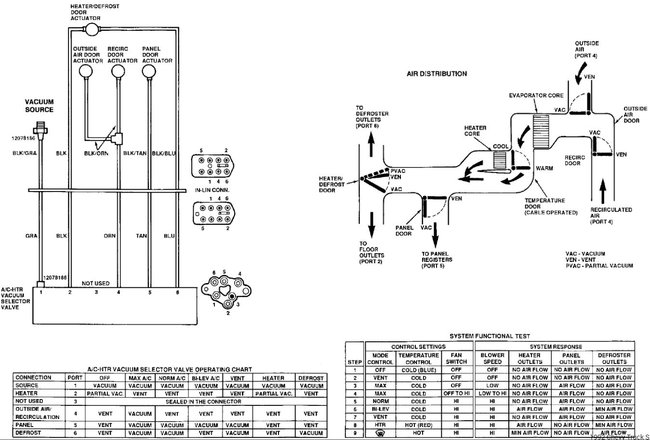

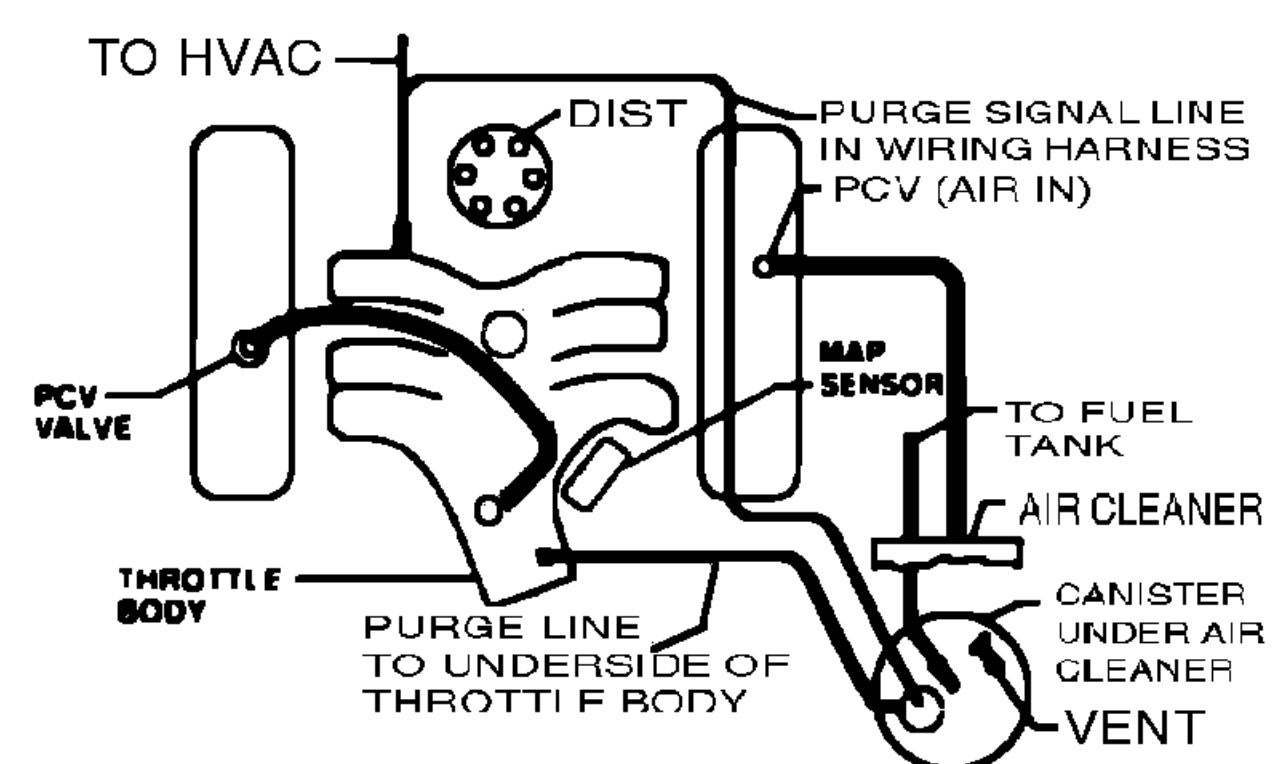

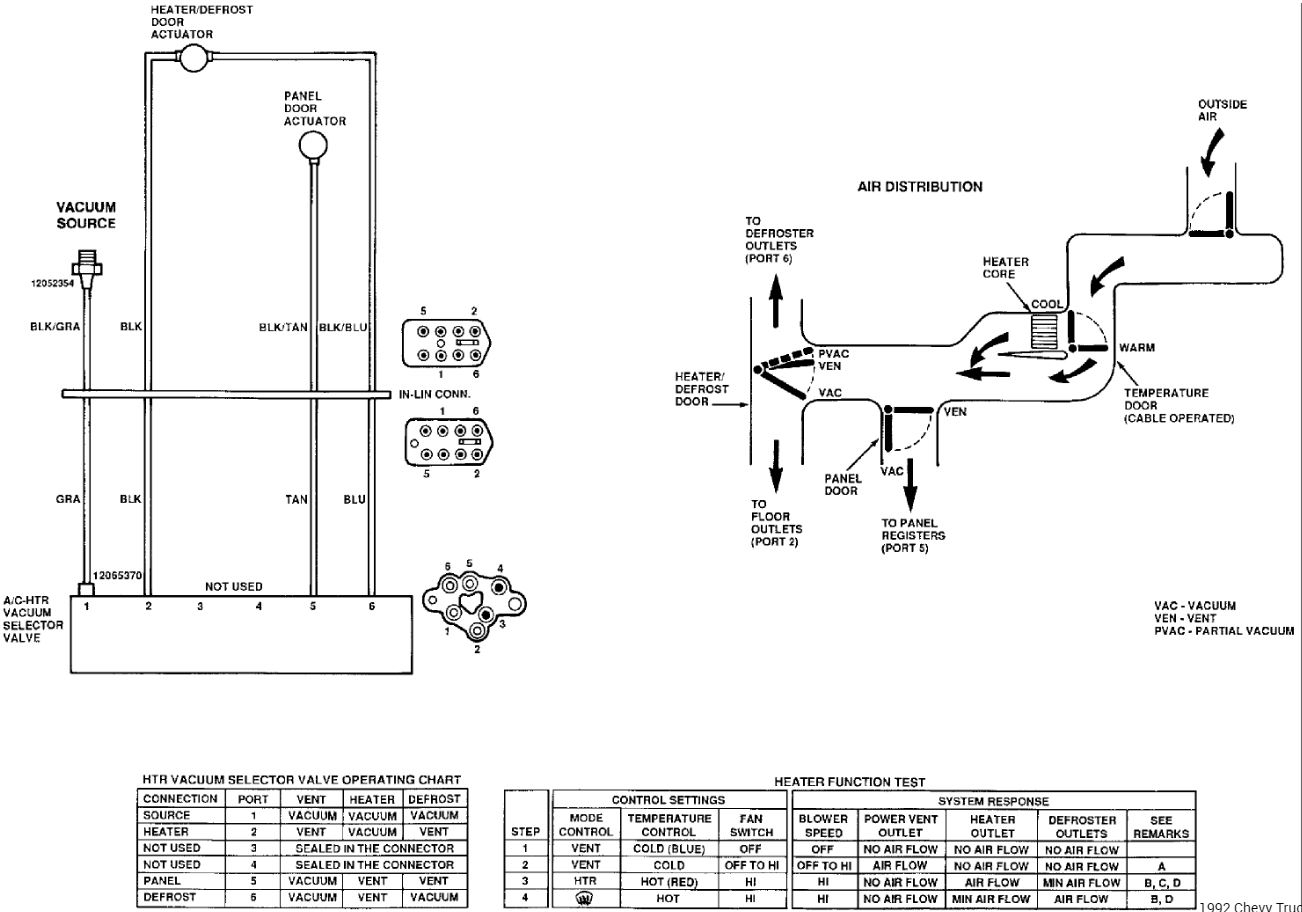

Attached are the diagrams for a 4.3, but if you need more help please use a new question. Thank you.
Jan 19, 2020 at 10:18 PM
Advertisement

Suggested Repair

Confirm the engine is the 2.0L and use the 2.0L serpentine belt routing diagram. Follow the linked belt removal and replacement tutorial if the belt is being replaced.

Conversation Summary

The owner of a 2017 Hyundai Elantra requested a serpentine belt diagram. The expert first provided a 1.4L diagram and a belt replacement tutorial, then supplied the 2.0L diagram after the owner confirmed that engine size. A separate request for a 1992 S10 Blazer vacuum diagram was redirected to a new question.
