I need the diagram for the car listed above, police package.
May 31, 2023 at 9:14 PM
2012 Chevrolet Impala Belt Diagram
BAMBITION OSIRIS
- MEMBER
- 1 POST
Hi,

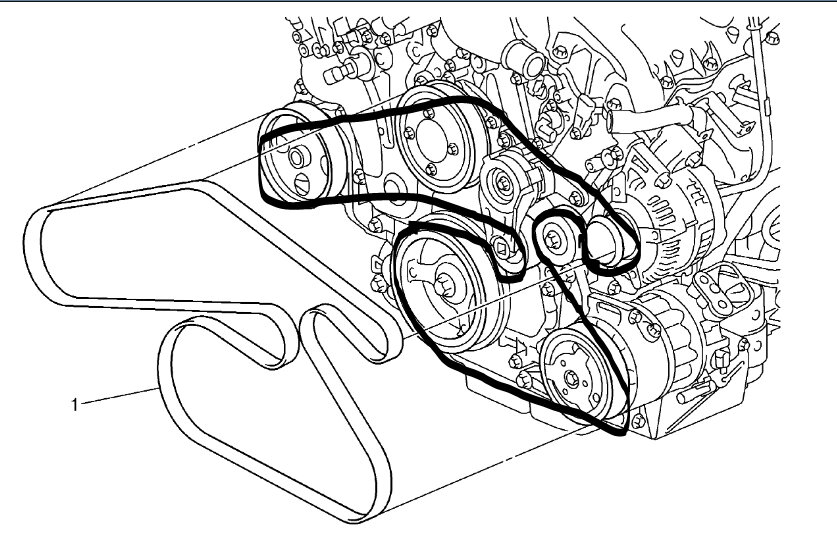

As far as the belt routing, I attached a pic below from the manual. Let me know if the pulleys are set up the same on your vehicle.
Also, here is a link you may find helpful:
https://www.2carpros.com/articles/replace-serpentine-belt
Let me know if this helps.
take care,
See pic below.
As far as the belt routing, I attached a pic below from the manual. Let me know if the pulleys are set up the same on your vehicle.
Also, here is a link you may find helpful:
https://www.2carpros.com/articles/replace-serpentine-belt
Let me know if this helps.
take care,
See pic below.
Image (Click to enlarge)
Jun 1, 2023 at 4:33 PM
Suggested Repair
Use the factory serpentine belt routing diagram and confirm the pulley layout matches the vehicle before installing the belt. Follow a standard serpentine belt replacement procedure if the belt needs to be replaced.
Conversation Summary
The owner of a 2012 Chevrolet Impala police package requested a serpentine belt diagram. The expert shared the manual belt-routing diagram, asked the owner to confirm the pulleys match, and provided a serpentine belt replacement article.
