OBD2 diagram needed
BOBCAT428
MEMBER
2006 FORD CROWN VICTORIA
4.6L
V8
2WD
AUTOMATIC
140,000 MILES
Police P71, wires cut on OBD2 port. I need diagram to see where they go.
Wednesday, May 9th, 2018 AT 10:45 AM
7 Replies
PATENTED_REPAIR_PRO
MECHANIC
1,853 POSTS

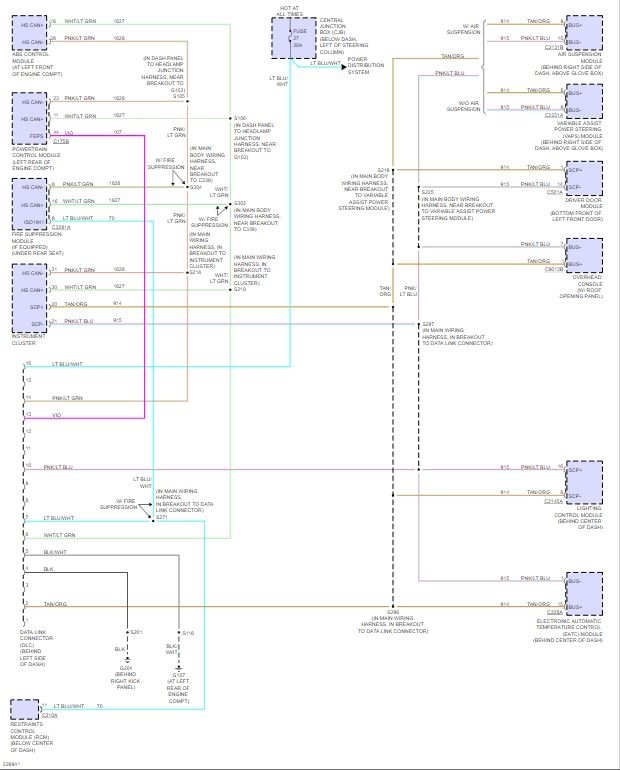

Here is that wiring diagram of the DLC.
Image (Click to make bigger)
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, May 9th, 2018 AT 3:35 PM
BOBCAT428
MEMBER
4 POSTS
Thanks. Hard to see on my phone. I will see if the desktop shows up better. Thanks again!
Was this
answer
helpful?
Yes
No
-1
Wednesday, May 9th, 2018 AT 3:38 PM
PATENTED_REPAIR_PRO
MECHANIC
1,853 POSTS
Can you zoom in?
Was this
answer
helpful?
Yes
No
-1
Wednesday, May 9th, 2018 AT 3:41 PM
BOBCAT428
MEMBER
4 POSTS
Yes, just gets fuzzy.
Was this
answer
helpful?
Yes
No
-1
Wednesday, May 9th, 2018 AT 3:42 PM
PATENTED_REPAIR_PRO
MECHANIC
1,853 POSTS
It should show up better on your desktop.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
-1
Wednesday, May 9th, 2018 AT 3:47 PM
BOBCAT428
MEMBER
4 POSTS
Thanks!
Was this
answer
helpful?
Yes
No
Wednesday, May 9th, 2018 AT 3:52 PM
PATENTED_REPAIR_PRO
MECHANIC
1,853 POSTS
You are welcome.
Was this
answer
helpful?
Yes
No
Thursday, May 10th, 2018 AT 6:25 AM
Please
login
or
register
to post a reply.
