Fuel pump wiring diagram needed?

1995 MAZDA B3000
200,000 MILES • 4WD • MANUAL
Avatar
TRISHIEK
  • MEMBER
  • 1 POST
I need the wiring color/diagram for the fuel pump.
Sep 25, 2025 at 10:37 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS

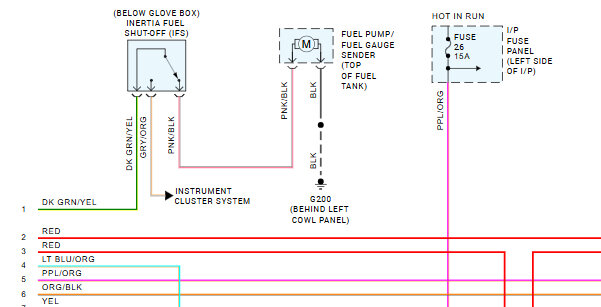

Sure, here you go, just two wires, check out the images (below). Let us know if you need anything else.
