Need the wiring harness/color of wires assign to each injectors.
Dec 11, 2019 at 11:58 PM
Fuel injection wiring diagrams needed
1997 NISSAN TRUCK
PACIFICISLANDER
- MEMBER
- 239 POSTS
Advertisement
SCGRANTURISMO
- ✓ASE Certified Mechanic
- 4,897 POSTS
Hello,

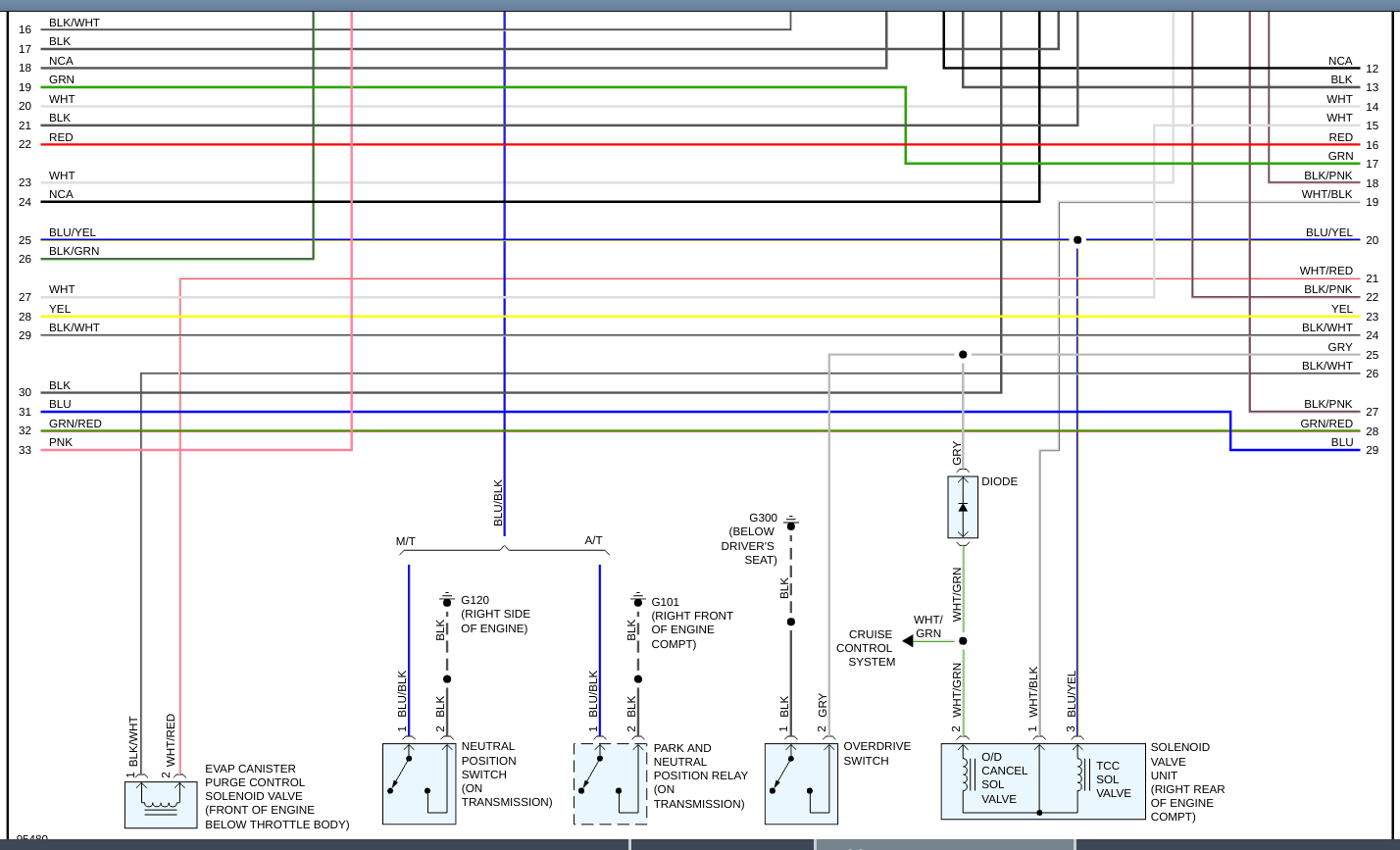

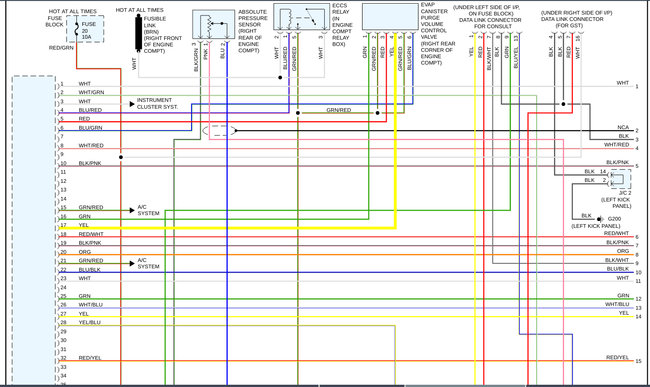

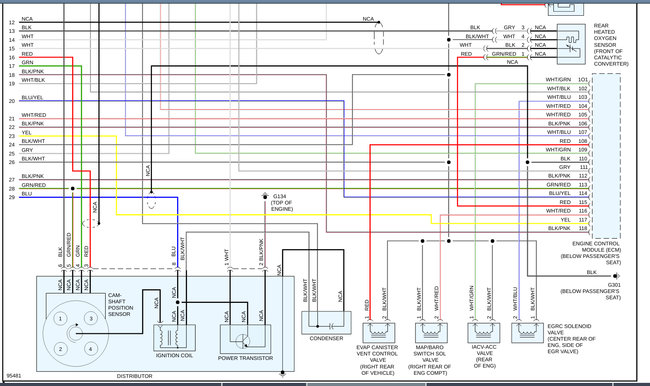

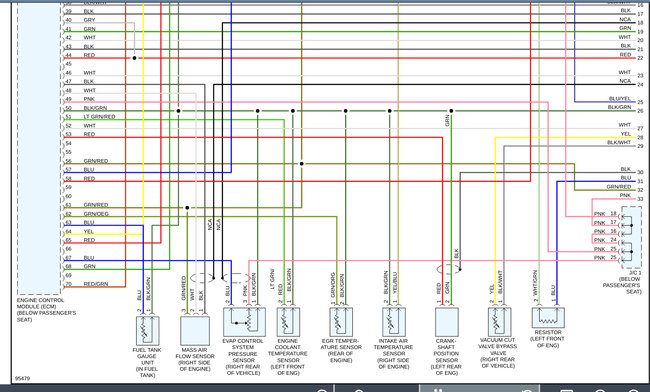

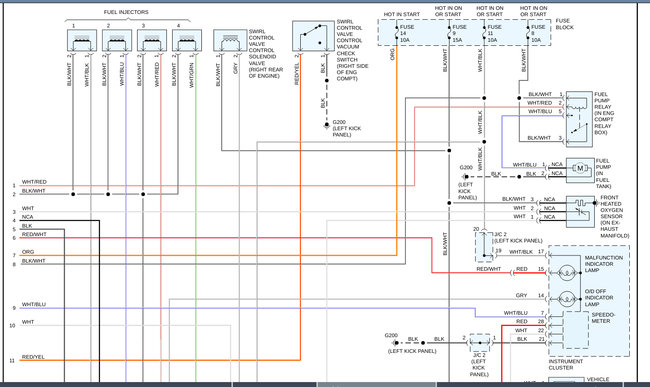

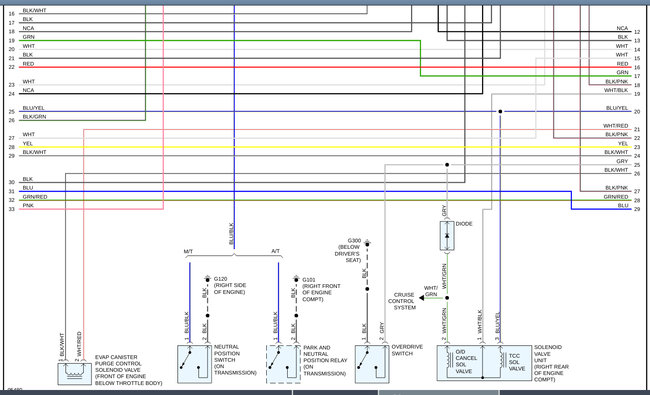

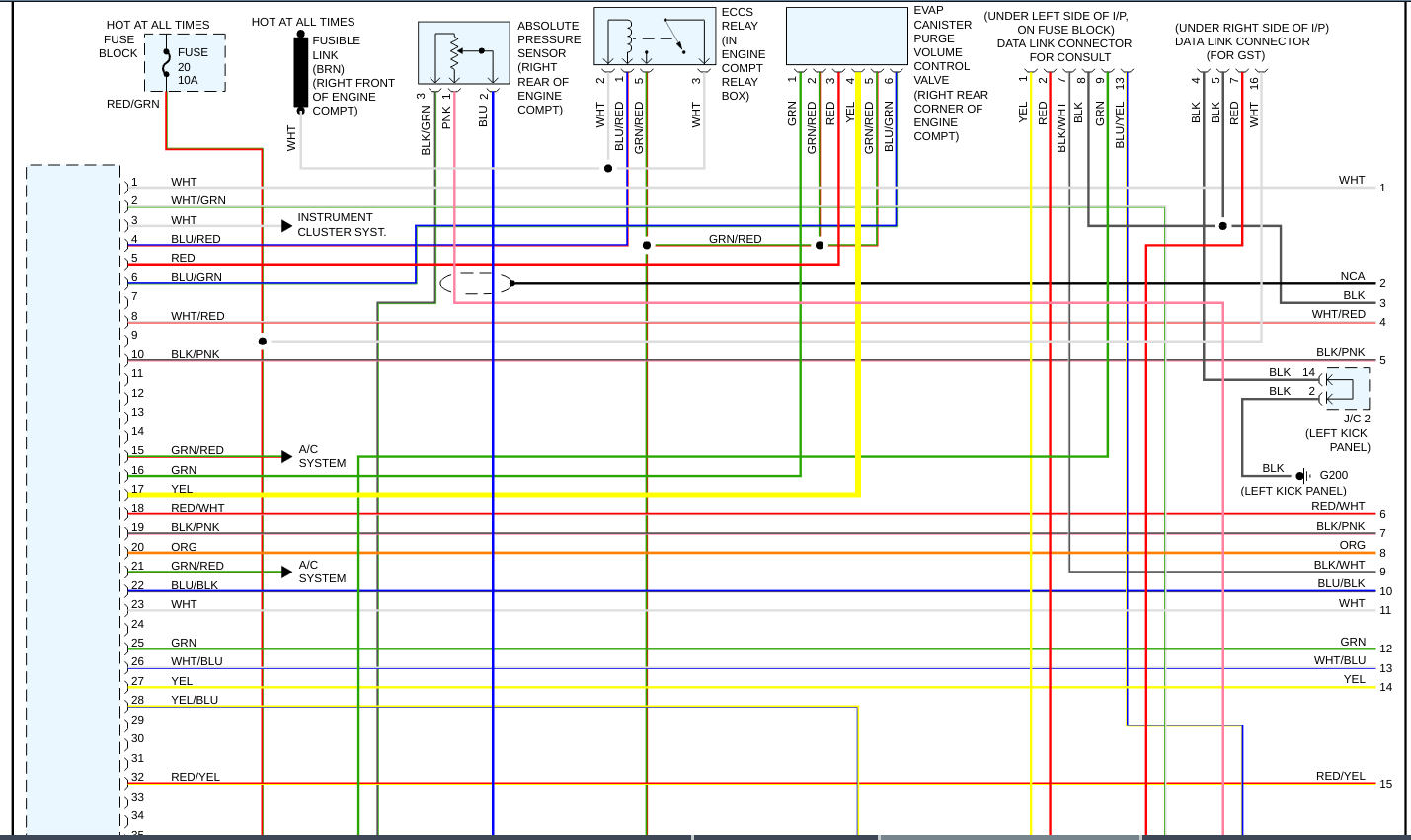

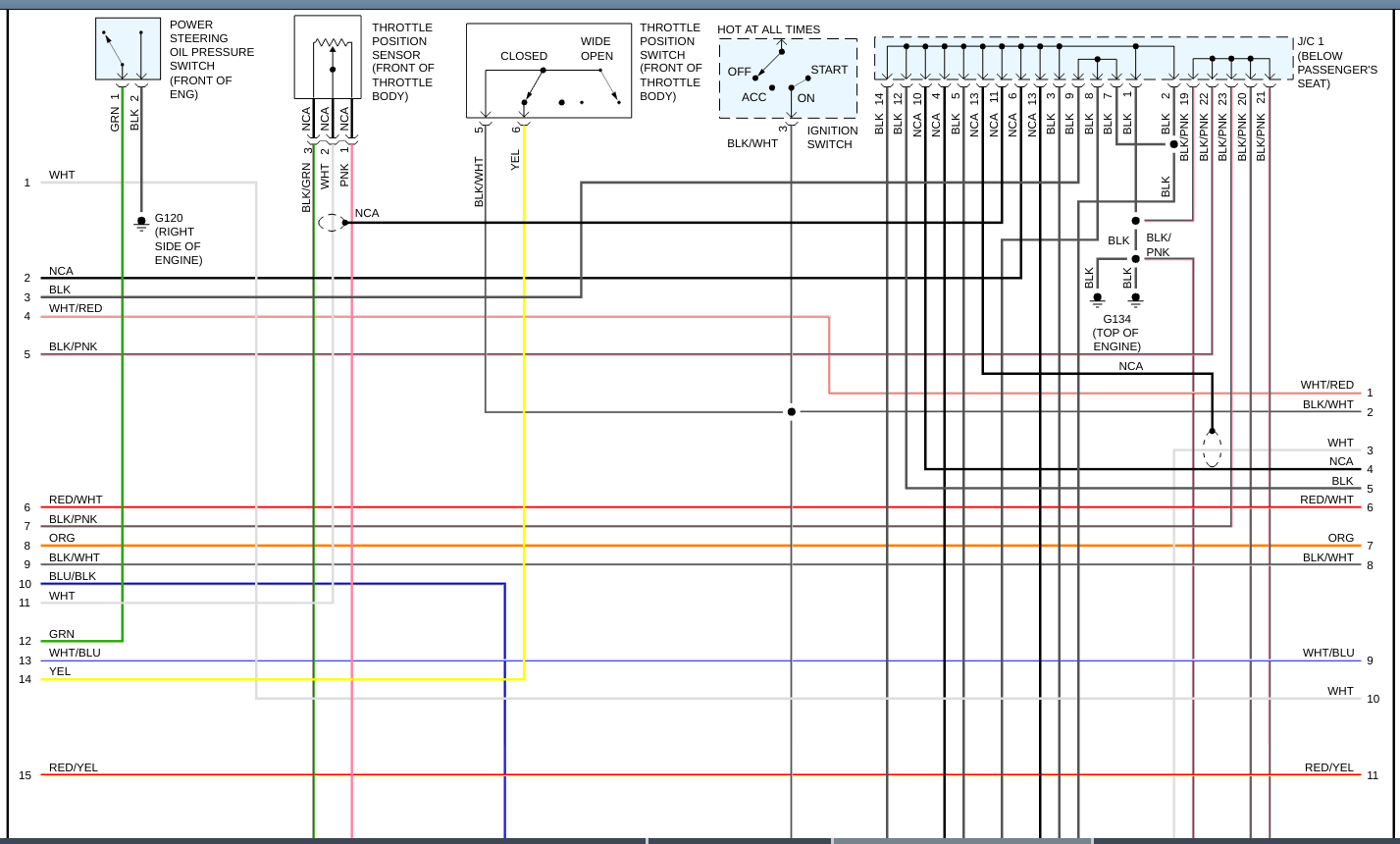

In the diagrams down below I have included the information that you requested. I have included all of the engine management wiring diagrams for you. The fuel injectors are on the top of the third wiring diagram. I hope that this helps.
Thanks,
Alex
2CarPros
In the diagrams down below I have included the information that you requested. I have included all of the engine management wiring diagrams for you. The fuel injectors are on the top of the third wiring diagram. I hope that this helps.
Thanks,
Alex
2CarPros
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
