A/C wiring schematic/diagrams needed

Tiny
LSCHWELLINGER
  • MEMBER
  • 2016 CHEVROLET EXPRESS
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 27,000 MILES
I need to obtain the A/C wiring Diagrams for the vehicle listed above 4500 Cutaway.
Sunday, September 5th, 2021 AT 11:59 AM

3 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,755 POSTS
Hi,

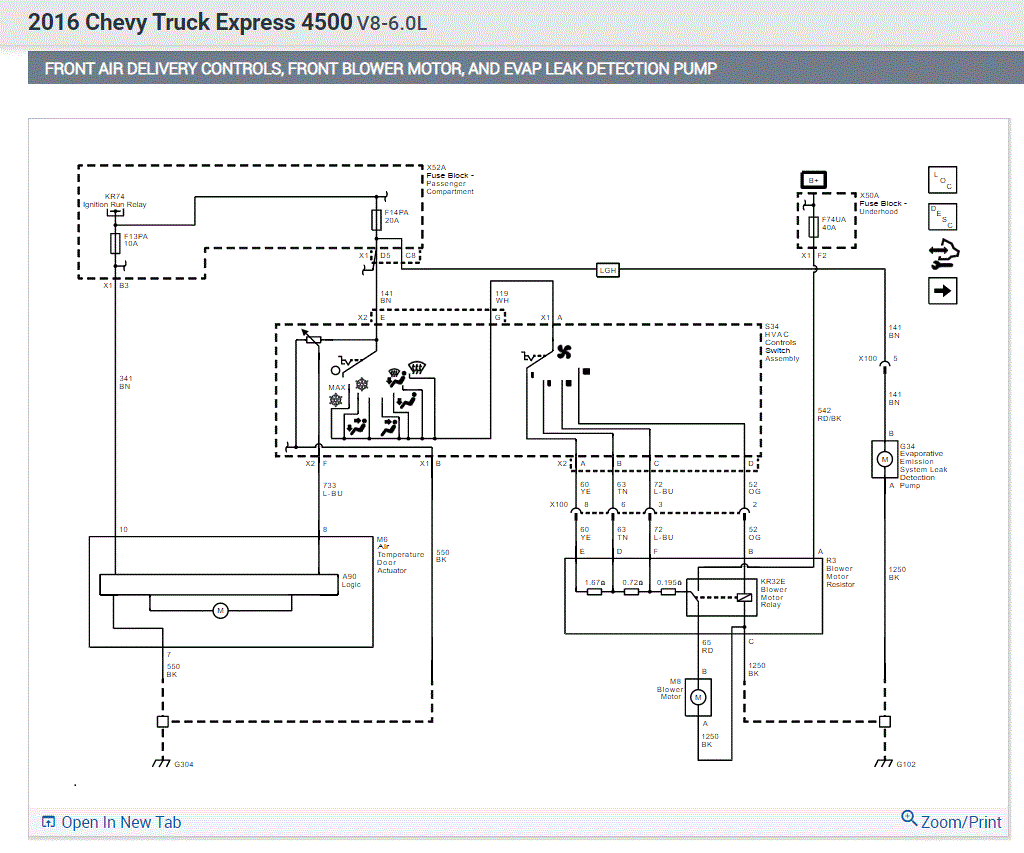

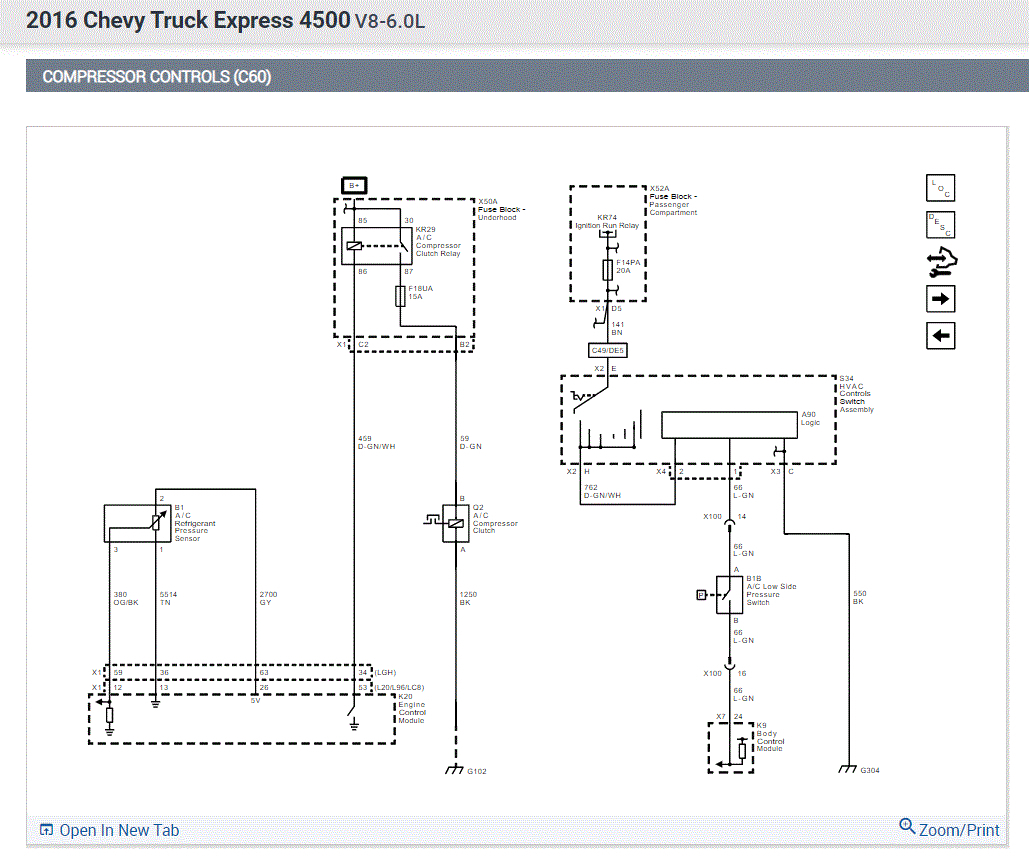

I was able to find wiring from the manufacturer for this vehicle. There are additional schematics for the rear, but since it's a cutaway, I don't believe you need that. LOL

Here are two links you may find helpful.

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/car-air-conditioner-not-working-or-is-weak

Let me know if this helps or if you have other questions.

Take care,

Joe

See pics below.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+1
Sunday, September 5th, 2021 AT 7:32 PM
Tiny
LSCHWELLINGER
  • MEMBER
  • 2 POSTS
Joe, thank you for finding and sharing the information. I appreciate your quick response!
Was this
answer
helpful?
Yes
No
Monday, September 6th, 2021 AT 7:55 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,755 POSTS
Hi,

You are very welcome. Let me know how things turn out for you or if there is something I can do to help.

Take care,

Joe
Was this
answer
helpful?
Yes
No
Monday, September 6th, 2021 AT 6:59 PM
