Air conditioner connections diagram needed

2001 NISSAN XTERRA

71,458 MILES • 3.3L • V6 • RWD • AUTOMATIC

NICANOR

MEMBER
1 POST
FOLLOW

Would you send me diagram on PDF to check my air conditioners connectors? no start A/C that happened the machine was repair and at the last the air does not turn on. thanks so much.r egards from México.

Oct 7, 2016 at 9:06 PM

Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.

HMAC300

CAR REPAIR CONTRIBUTOR
48,601 POSTS

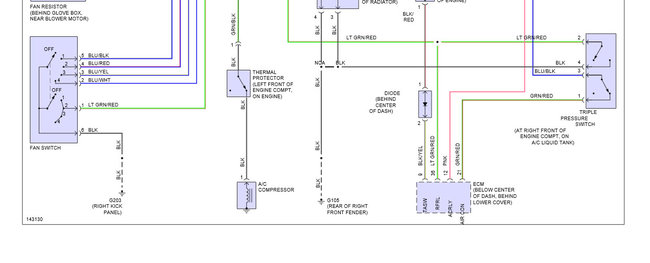

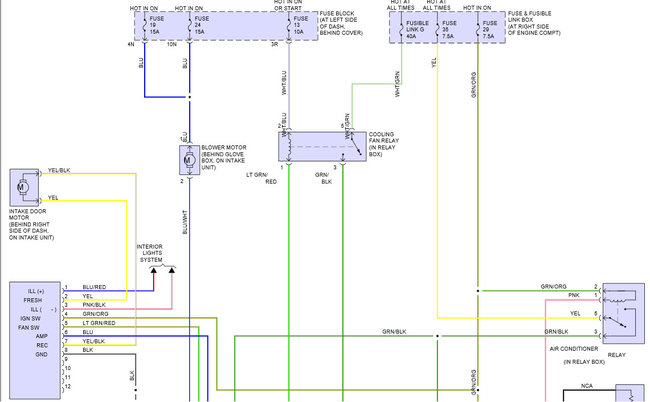

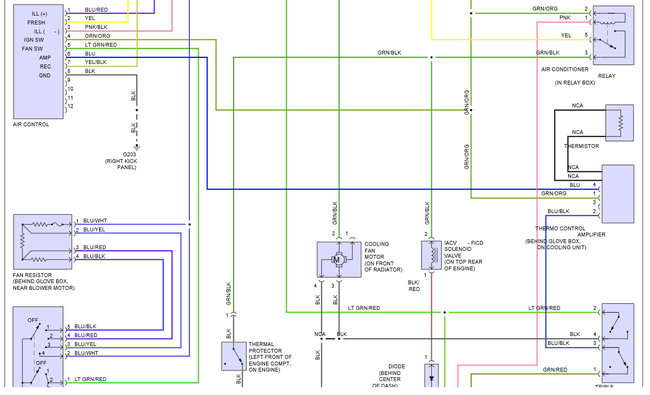

everything we send is in jpg. see pictures. also, this should be scanned for codes to see what is wrong with it. if it is automatic temperature where you set temperature it is mandatory to scan for codes with a professional scanner.
