Power distribution center wiring diagram

HERTEMANB

MEMBER
1999 DODGE RAM
5.9L
6 CYL
TURBO
2WD
MANUAL
100,000 MILES

I am trying to locate a detailed diagram that identifies the colored wires that lead into the power distribution center Engine Inline connector. Can you help?

Wednesday, November 28th, 2018 AT 3:02 PM

4 Replies

KEN L

MASTER CERTIFIED MECHANIC
47,643 POSTS

Hi and thanks for using 2CarPros.

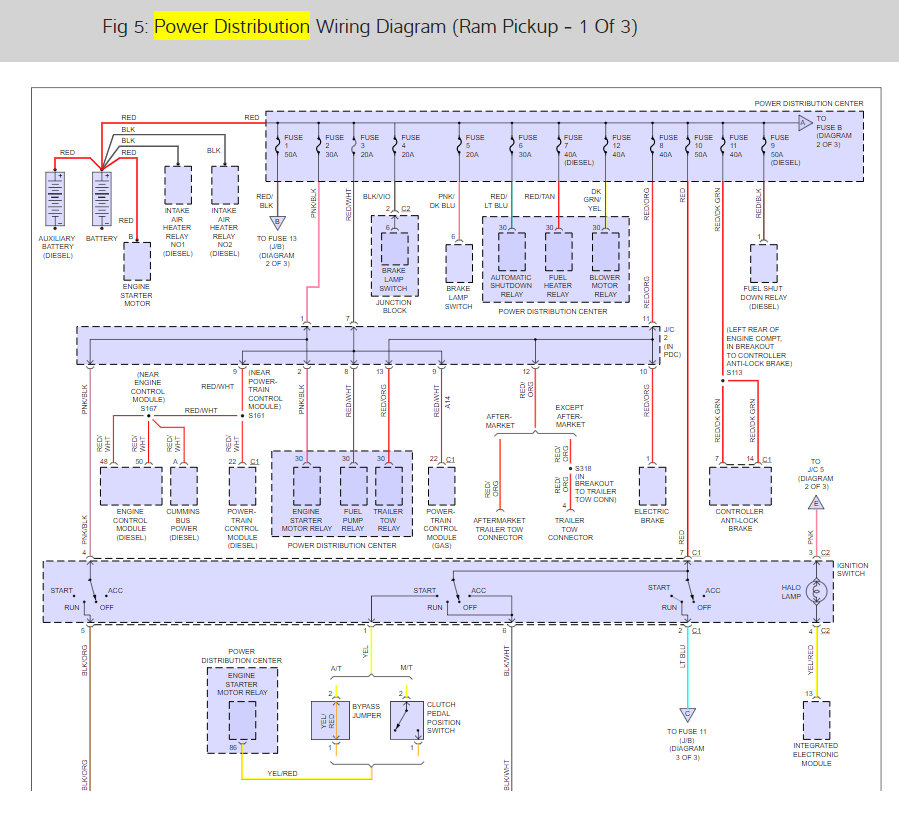

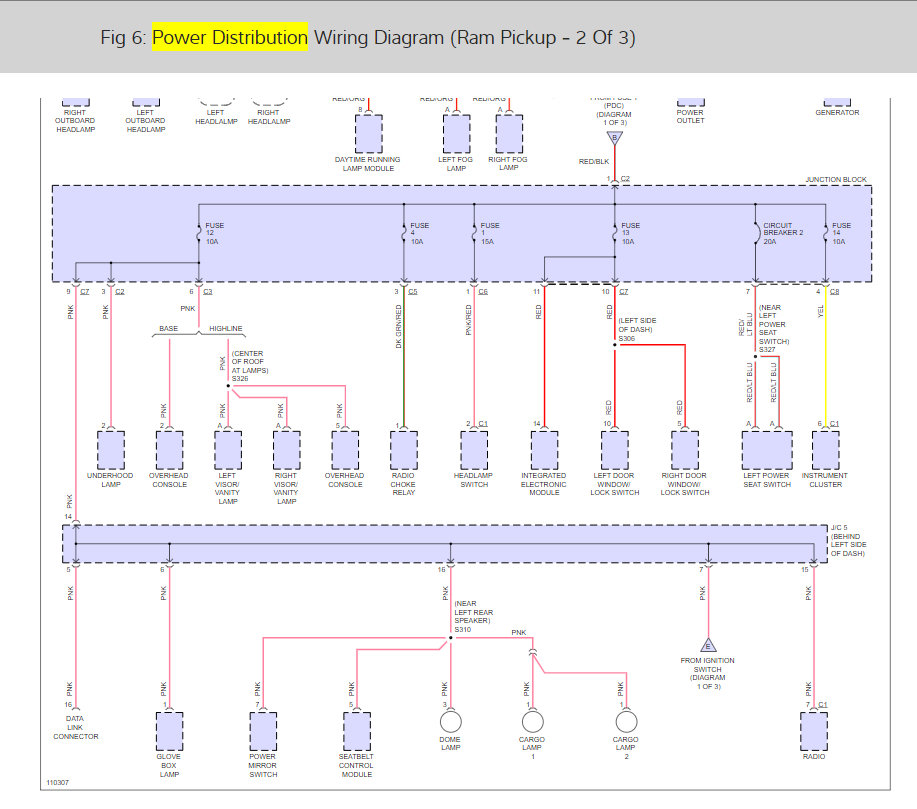

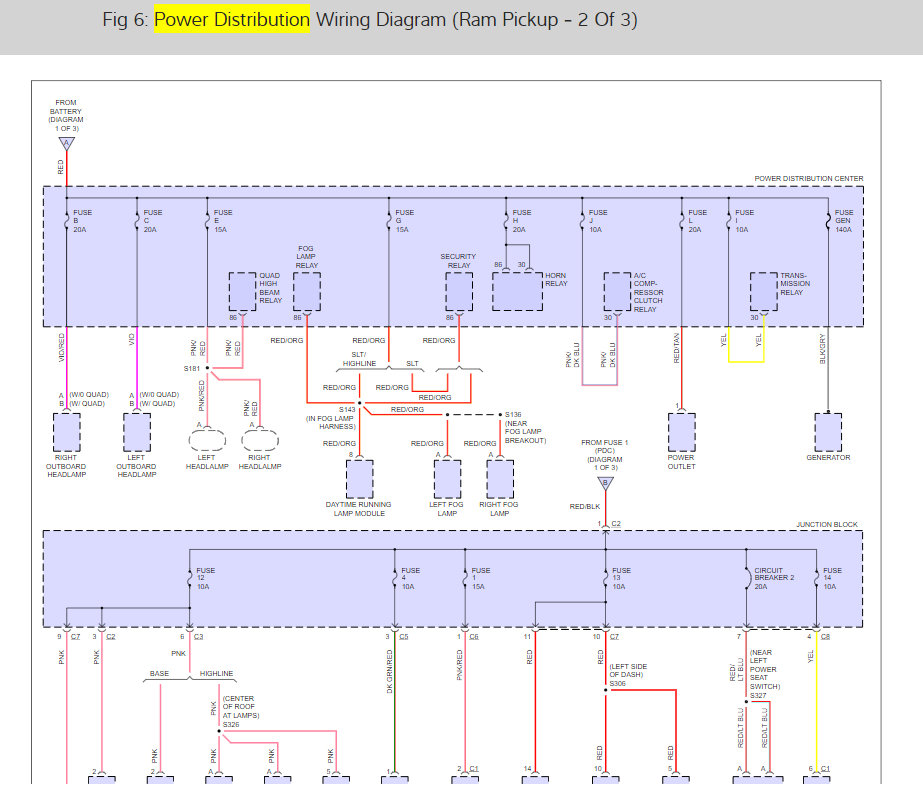

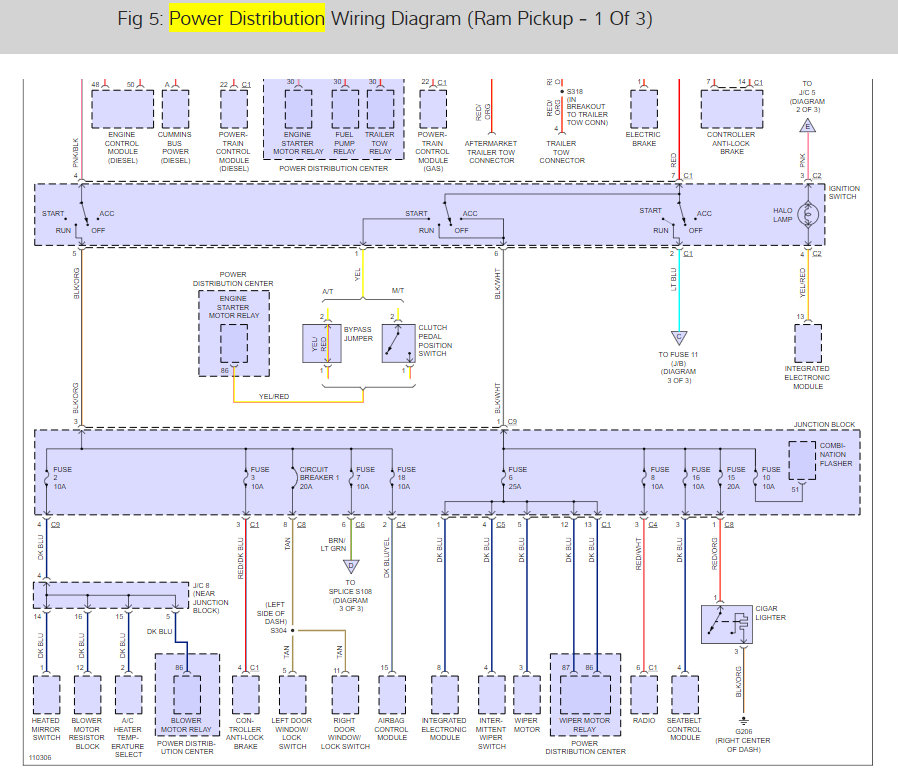

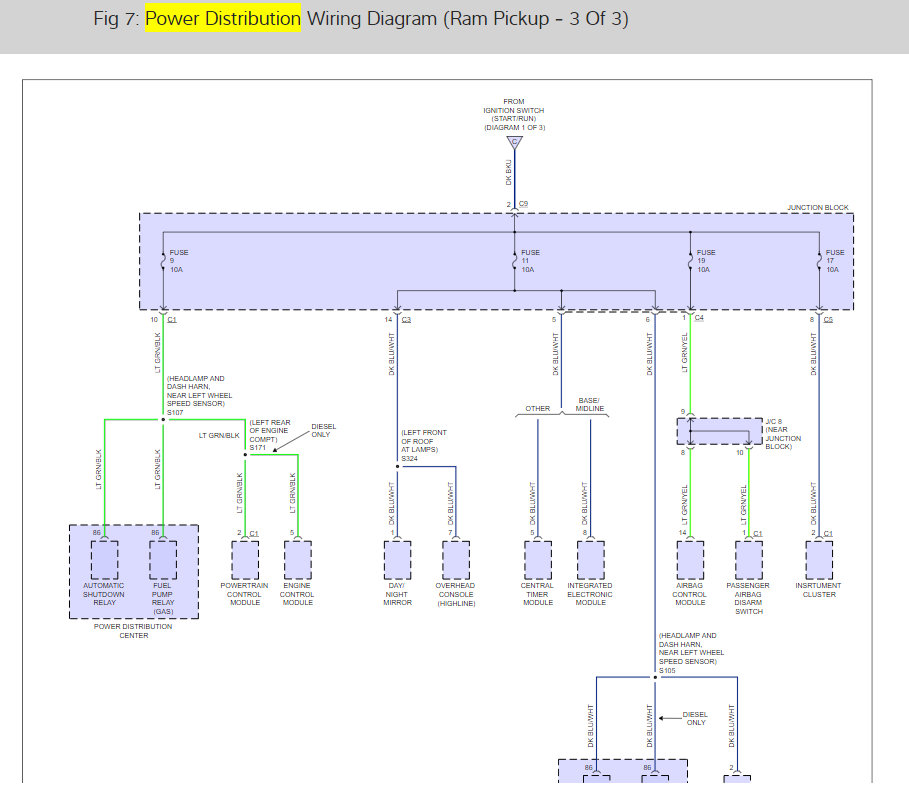

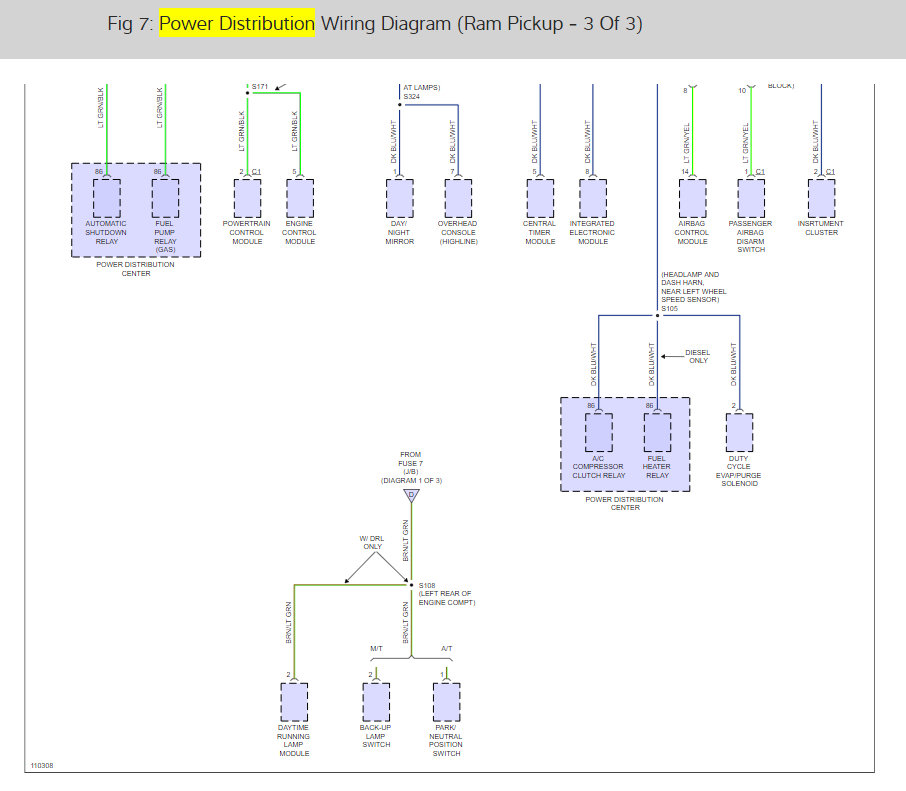

I have attached the entire power distribution system schematics. There are a total of three, but I had to cut each in half because of size. Therefore, you will see a total of six pictures. They are in order. All odd number pictures, 1, 3, 5 are the tops of the schematics and even numbers, 2, 4, 6 are the bottoms. I overlapped the schematics so you can see how they fit together.

Pics 1 and 2 = schematic 1
Pics 3 and 4 = schematic 2
Pics 5 and 6 = schematic 3

They do not list wiring in that way, by system only. If there are many systems leading to the PDC you will need the pertaining diagrams. Here is what they give us which is what Joe found. I hope these are easier to read. Cheers, Ken

Images (Click to make bigger)

SPONSORED LINKS

Was this

answer

helpful?

Yes

No

Friday, November 30th, 2018 AT 11:26 AM

HERTEMANB

MEMBER
1 POST

Thanks, not quite what I was looking for. I have the white plastic connector with wires coming out of the back of it. It is the Engine Inline Connector that plugs into the PDC fuse block with one screw.

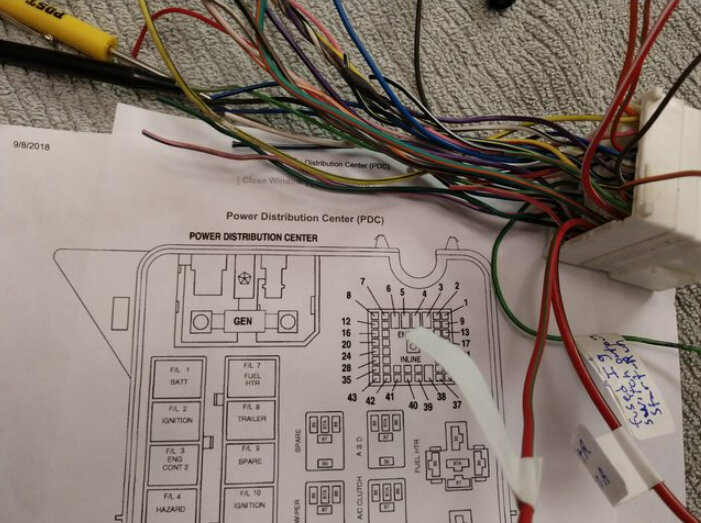

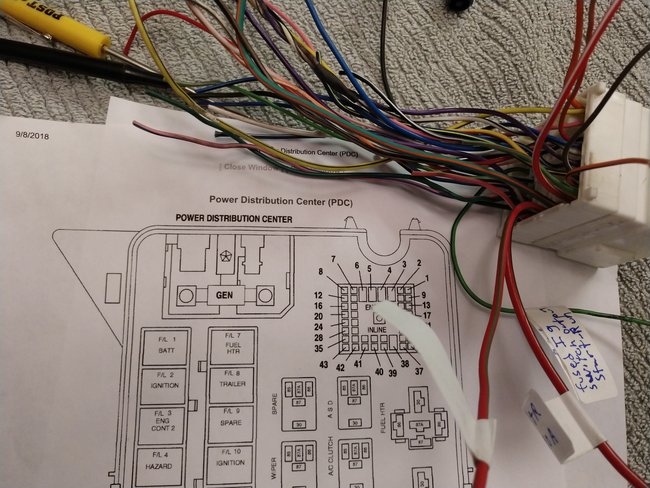

The 43 wires are coming out of it, and I wanted a list of what the wires go to via color or number code. I will attach a photo.

Image (Click to make bigger)
