Wiring harness placement of PCM plugs

Tiny
JESSICABUQUET
  • MEMBER
  • 2005 FORD EXPLORER
  • 4.0L
  • V6
  • 2WD
  • AUTOMATIC
  • 175,000 MILES
I'm trying to hook my wiring harness back up and I have 3 PCM plugs and they all look the same, with no indication of where each one goes. Is there a diagram out there that i'm missing?
Wednesday, September 4th, 2019 AT 6:41 AM

1 Reply

Tiny
ASEMASTER6371
  • MECHANIC
  • 52,797 POSTS
Good morning,

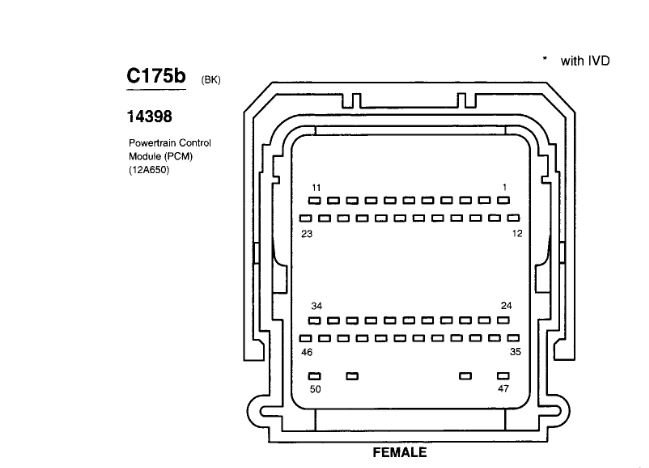

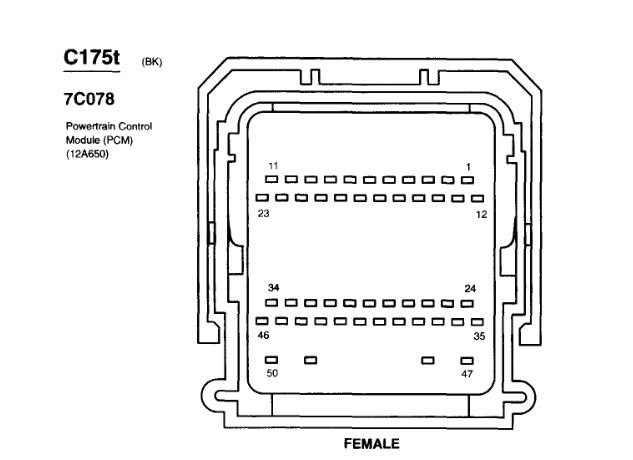

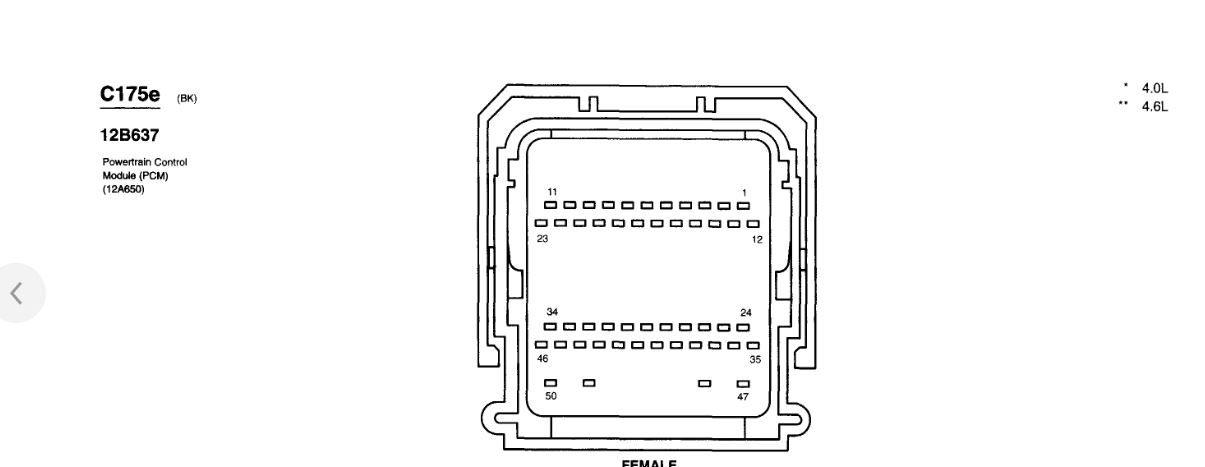

They should only go on the correct spot. They are keyed and cannot be mixed up. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Roy
Images (Click to make bigger)
Thumb
Thumb
Thumb
