Wiring Harness diagram needed for Premium Satellite Radio Package?

2015 KIA RONDO
60,000 MILES • 2.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
METERING
  • MEMBER
  • 4 POSTS
My premium radio package includes AM/FM/Satellite Radio with 6 speakers and Amp with subwoofer. I need a wiring diagram for this radio package and was wondering if you could please assist me?
Jan 26, 2023 at 10:03 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Hi,

I would be happy to help, but I need confirmation on the model year. The Kia Rondo was discontinued in 2010.

Let me know.

Joe
Jan 26, 2023 at 2:58 PM
Avatar
METERING
  • MEMBER
  • 4 POSTS
Hi Joe. No, the Kia wasn't discontinued in 2010 in Canada. I have a 2015 Kia Rondo EX Luxury Model. Thank you.
Jan 26, 2023 at 3:39 PM
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Hi,

Sorry about that. I thought it was all production in 2010. If you are unable to find what is needed, let me know. I'll try to do some digging at work to see if there is anything I can find that will help.

Let me know.

Joe
Jan 26, 2023 at 4:39 PM
Avatar
METERING
  • MEMBER
  • 4 POSTS
Thank you, Joe. I was hoping that you might be able to assist me in finding the information. I have continued searching myself, but I haven't been able to find anything as of today. My premium radio package includes a 9" display, satellite radio with AM/FM/CD. It has 6 speakers with an amp and subwoofer mounted under the front passenger seat. It also has a backup camera integrated into the screen.
Jan 30, 2023 at 8:57 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic

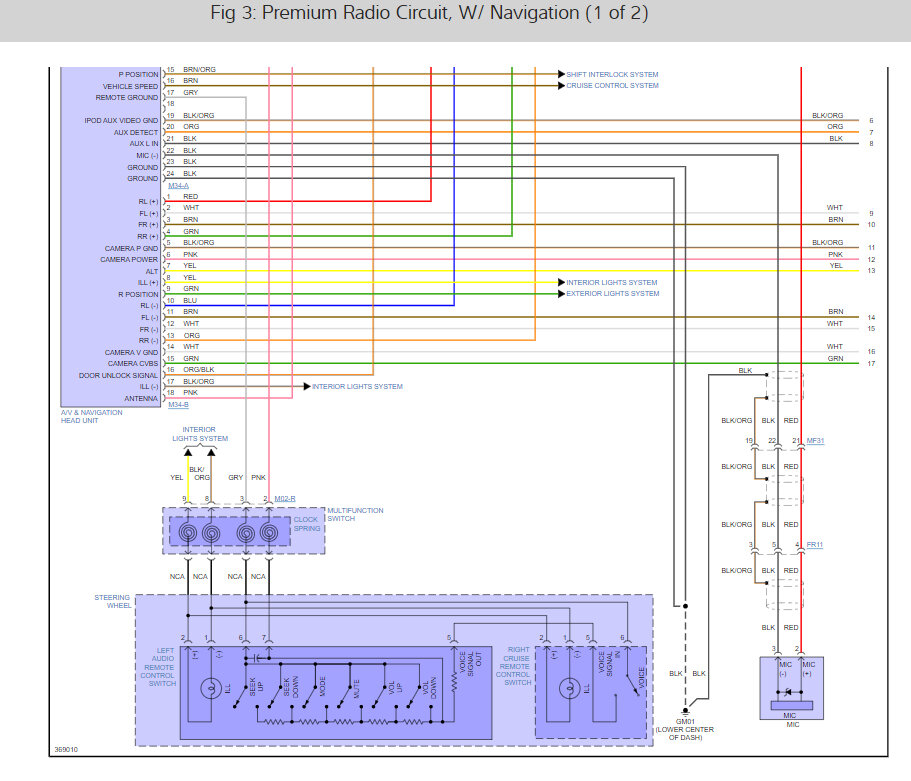

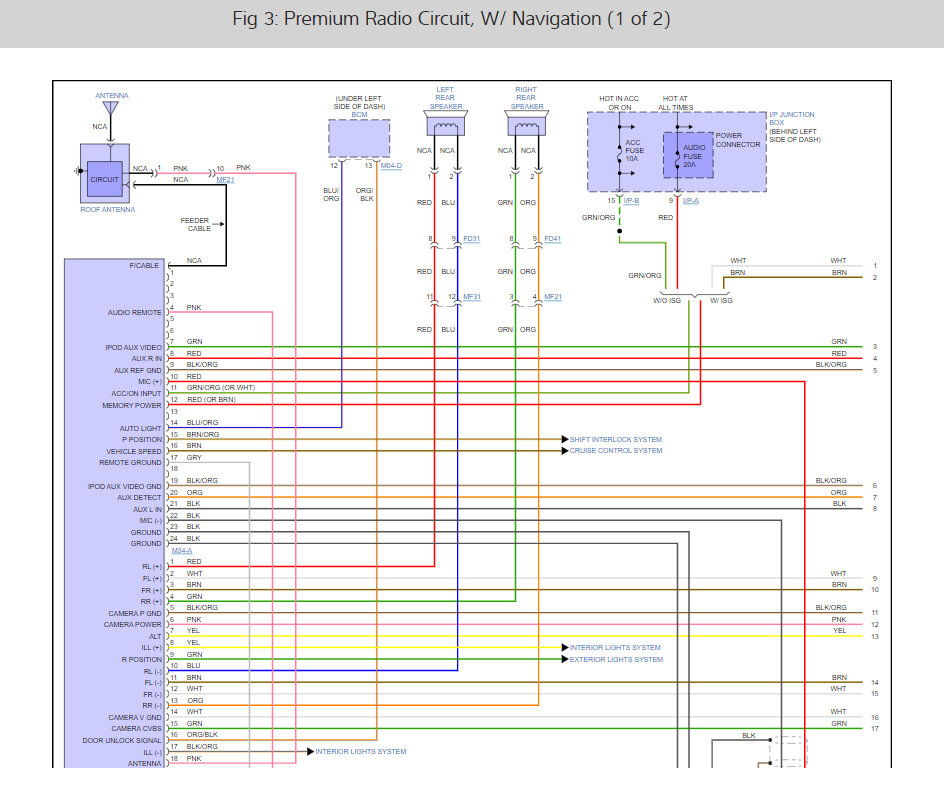

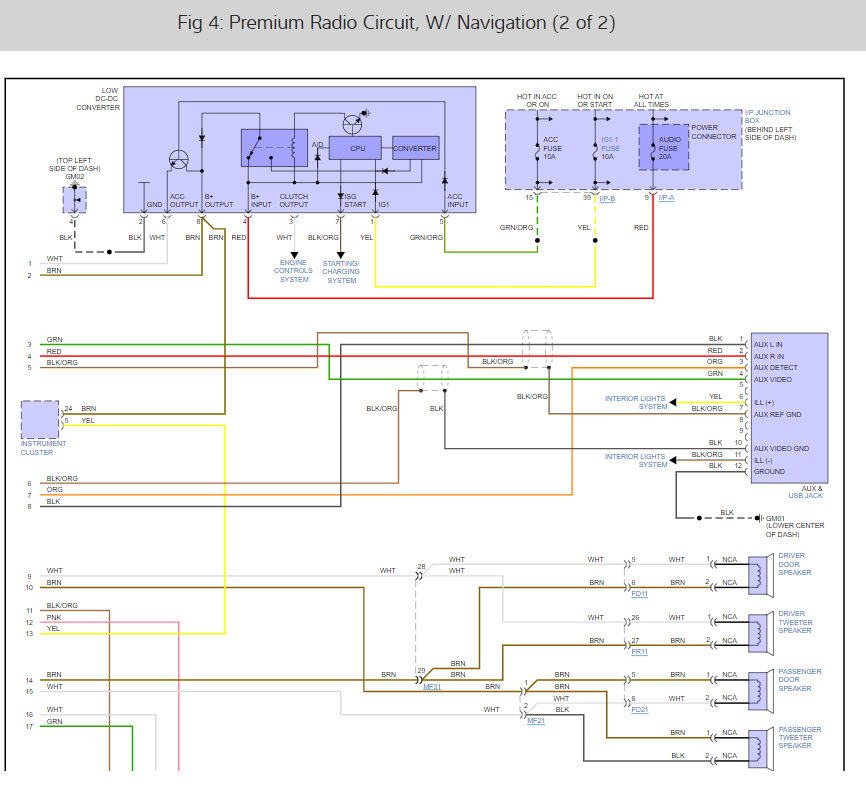

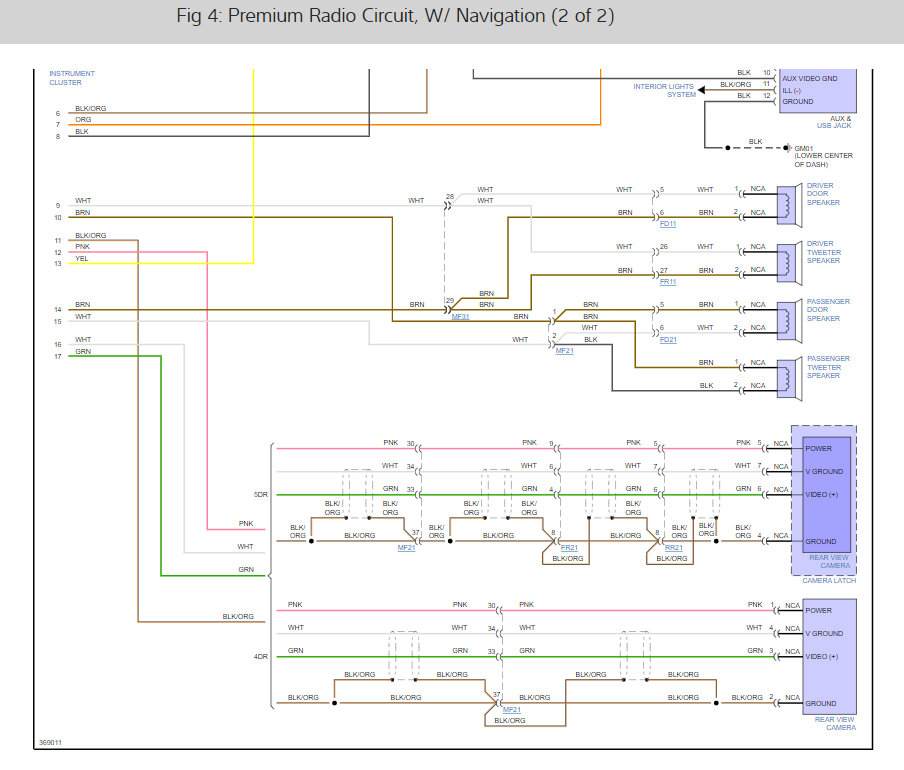

Here are the radio wiring diagrams needed, they are for the Rio, but I think they will work. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jan 30, 2023 at 12:14 PM
Avatar
METERING
  • MEMBER
  • 4 POSTS
Thank you. They look like they will work. I really appreciate your help.
Jan 30, 2023 at 2:03 PM
