Wiring Harness diagram needed for Premium Satellite Radio Package?

Tiny
METERING
  • MEMBER
  • 2015 KIA RONDO
  • 2.5L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 60,000 MILES
My premium radio package includes AM/FM/Satellite Radio with 6 speakers and Amp with subwoofer. I need a wiring diagram for this radio package and was wondering if you could please assist me?
Thursday, January 26th, 2023 AT 10:03 AM

6 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,747 POSTS
Hi,

I would be happy to help, but I need confirmation on the model year. The Kia Rondo was discontinued in 2010.

Let me know.

Joe
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, January 26th, 2023 AT 2:58 PM
Tiny
METERING
  • MEMBER
  • 4 POSTS
Hi Joe. No, the Kia wasn't discontinued in 2010 in Canada. I have a 2015 Kia Rondo EX Luxury Model. Thank you.
Was this
answer
helpful?
Yes
No
Thursday, January 26th, 2023 AT 3:39 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,747 POSTS
Hi,

Sorry about that. I thought it was all production in 2010. If you are unable to find what is needed, let me know. I'll try to do some digging at work to see if there is anything I can find that will help.

Let me know.

Joe
Was this
answer
helpful?
Yes
No
Thursday, January 26th, 2023 AT 4:39 PM
Tiny
METERING
  • MEMBER
  • 4 POSTS
Thank you, Joe. I was hoping that you might be able to assist me in finding the information. I have continued searching myself, but I haven't been able to find anything as of today. My premium radio package includes a 9" display, satellite radio with AM/FM/CD. It has 6 speakers with an amp and subwoofer mounted under the front passenger seat. It also has a backup camera integrated into the screen.
Was this
answer
helpful?
Yes
No
Monday, January 30th, 2023 AT 8:57 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,625 POSTS

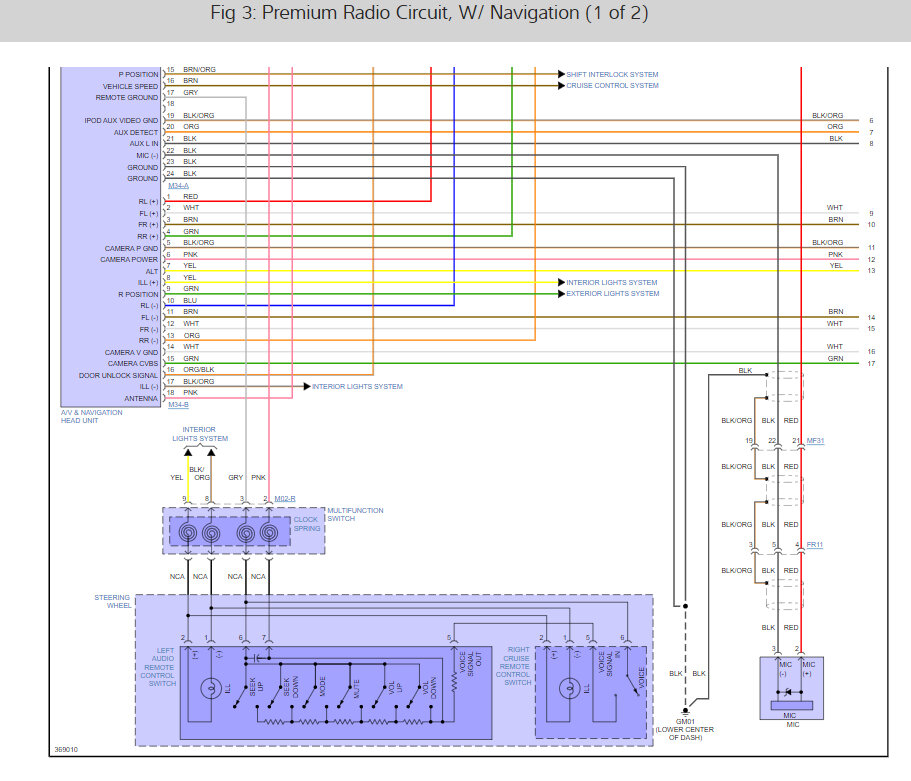

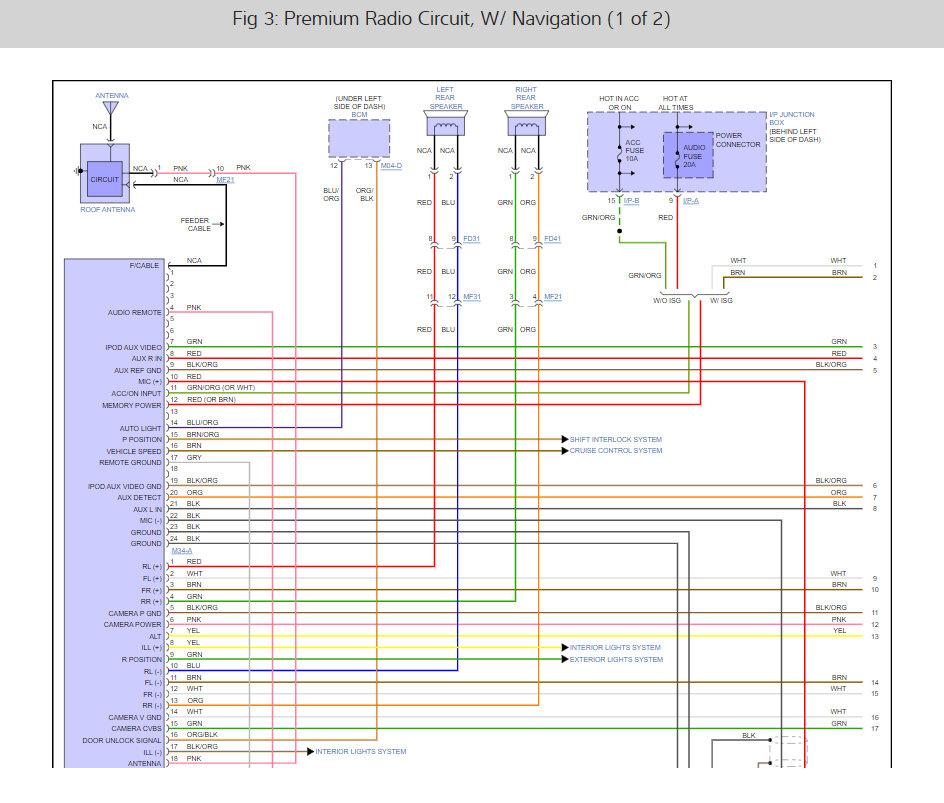

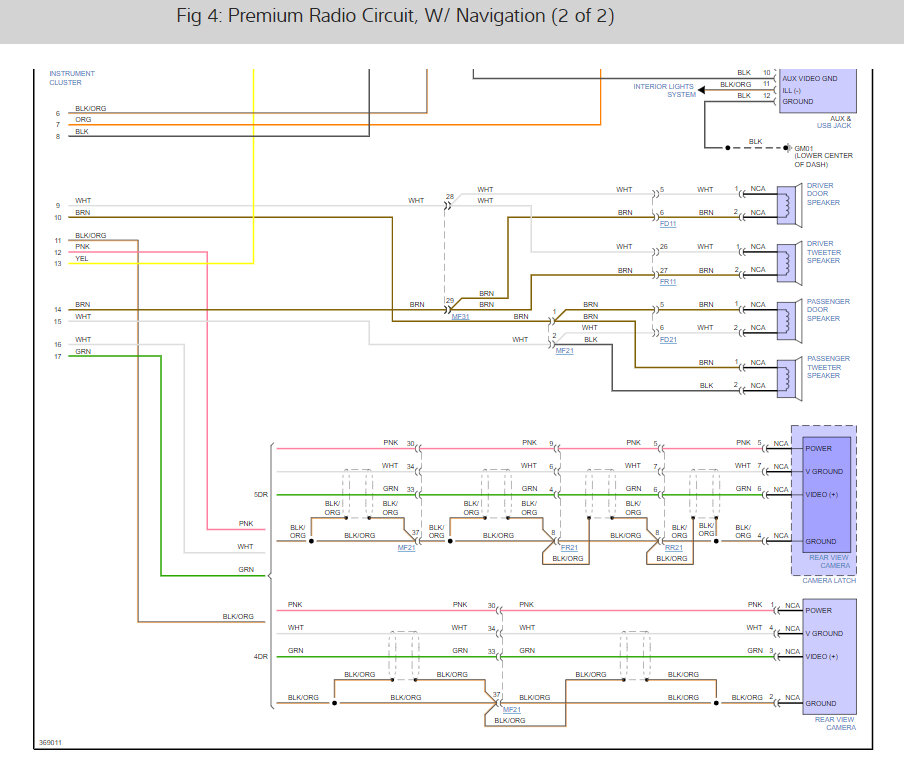

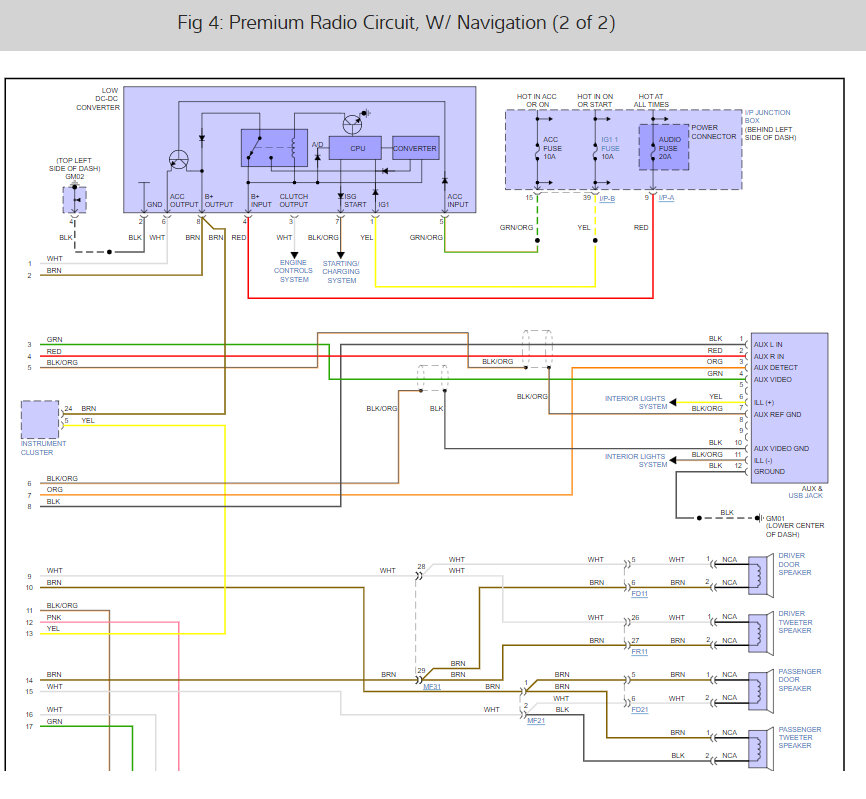

Here are the radio wiring diagrams needed, they are for the Rio, but I think they will work. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, January 30th, 2023 AT 12:14 PM
Tiny
METERING
  • MEMBER
  • 4 POSTS
Thank you. They look like they will work. I really appreciate your help.
Was this
answer
helpful?
Yes
No
Monday, January 30th, 2023 AT 2:03 PM
