Engine wiring harness how to hook up?

2017 KIA FORTE
168,000 MILES
Avatar
SES001
  • MEMBER
  • 2 POSTS

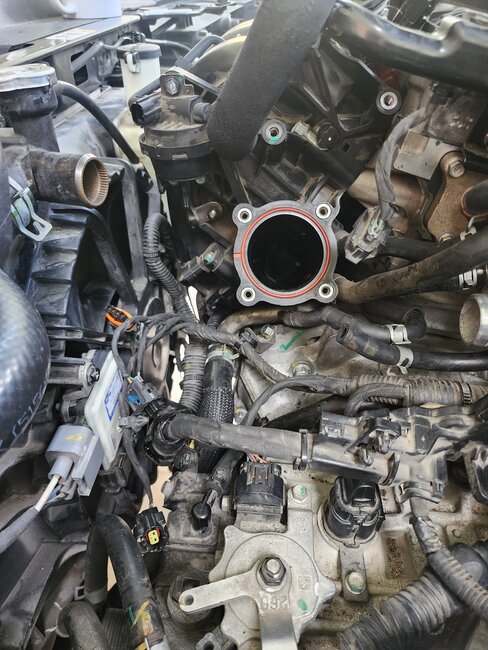

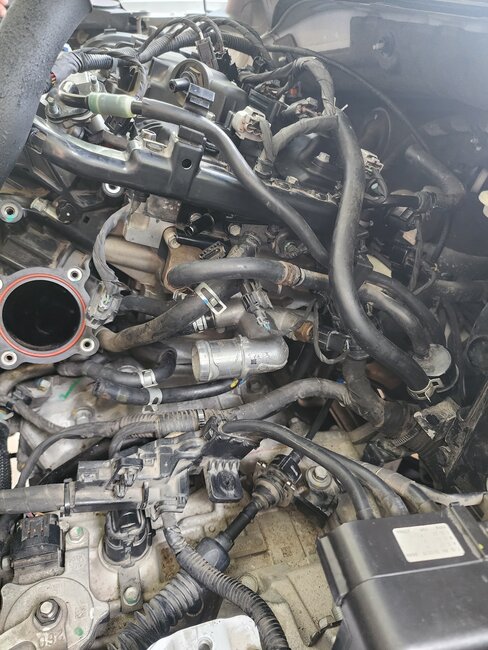

I rebuilt engine, but I'm having trouble figuring out how to hook up wiring harness. Purchased Kia's instructions but no help because it's not in book. Also, I had connected most of it up but now I have 2 connectors but nowhere to plug them in.
Images (Click to enlarge)
Attached Media
Attached Media
Jul 28, 2025 at 8:31 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS
I can help, can you add an image of the connectors and there wiring color, that way I can look us where they go?
