Wiring fuse box diagrams

2009 HONDA CRV
100,000 MILES • AUTOMATIC
Avatar
ALEX GATLIN
  • MEMBER
  • 47 POSTS
Ho guys. I am helping a friend fix a few electrical problems she is having with her CRV and was wanting to get a full set of wiring diagrams and fuse box diagrams with callous if I could please. Thank you.
Aug 20, 2025 at 10:10 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,616 POSTS
Hello Alex,

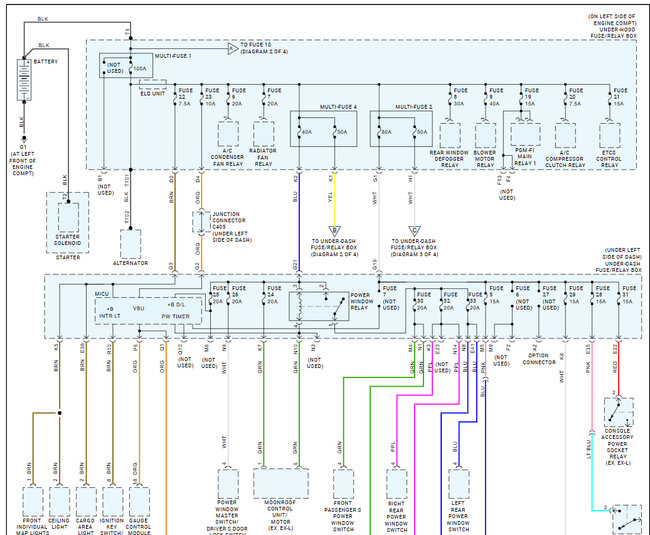

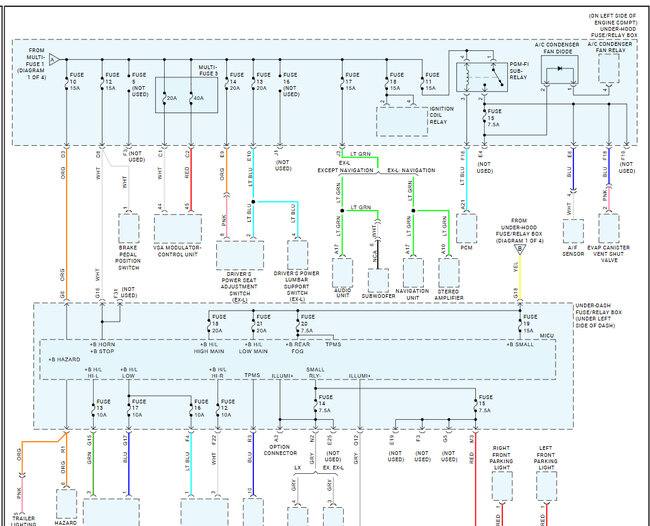

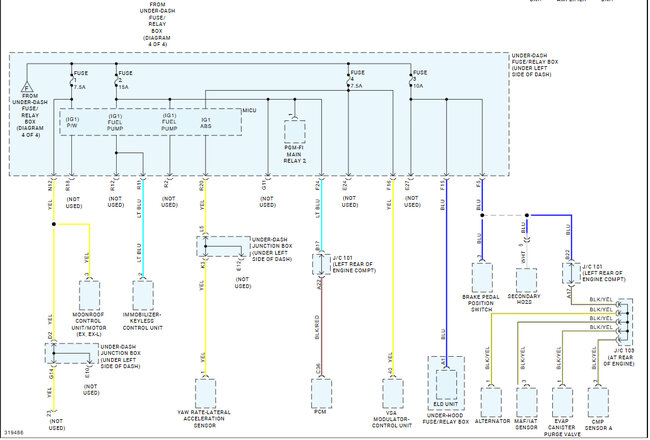

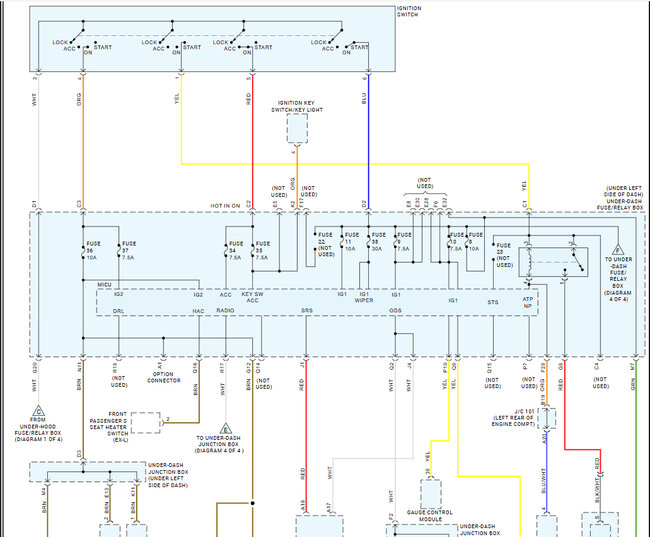

Here are the fuse panel wiring diagrams as requested, check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Aug 21, 2025 at 12:38 AM
