Wiring diagram needed that goes to the oxygen sensor?

Tiny
CHRISTOPHER SHIPP
  • MEMBER
  • 2007 SATURN OUTLOOK
  • 3.6L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 225,000 MILES
I just need a wiring diagram of the wiring harness that goes to the oxygen sensor and what color goes to what color on the sensor itself.
Sunday, July 16th, 2023 AT 8:52 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,345 POSTS

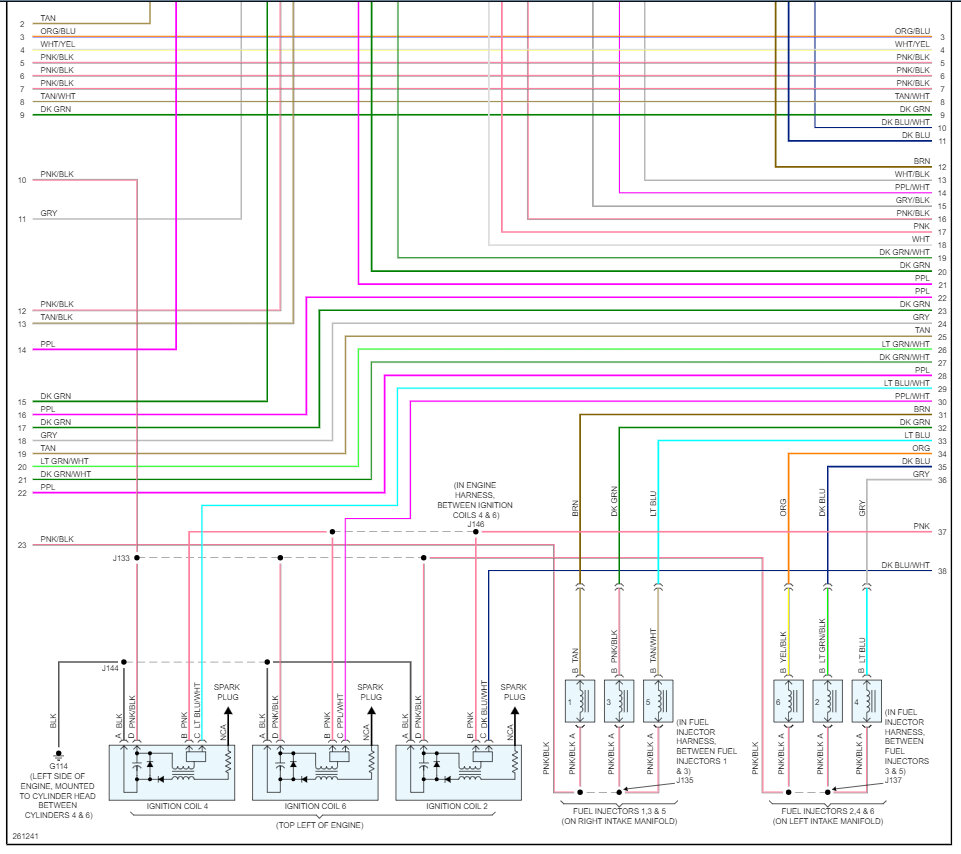

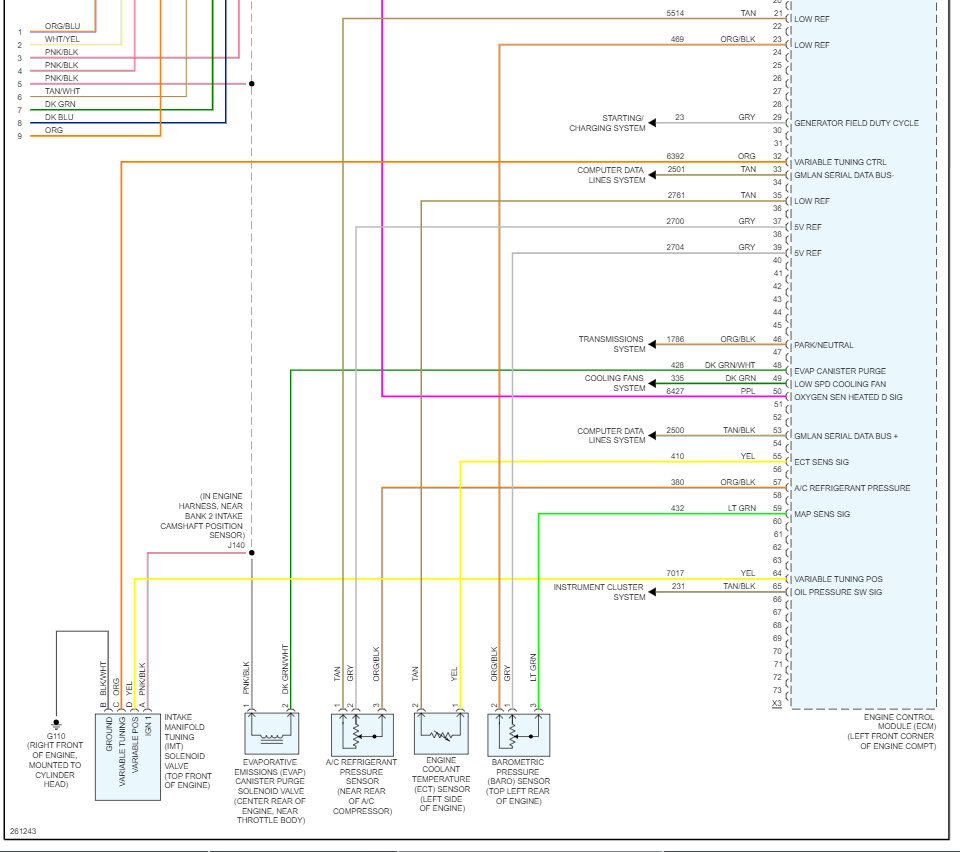

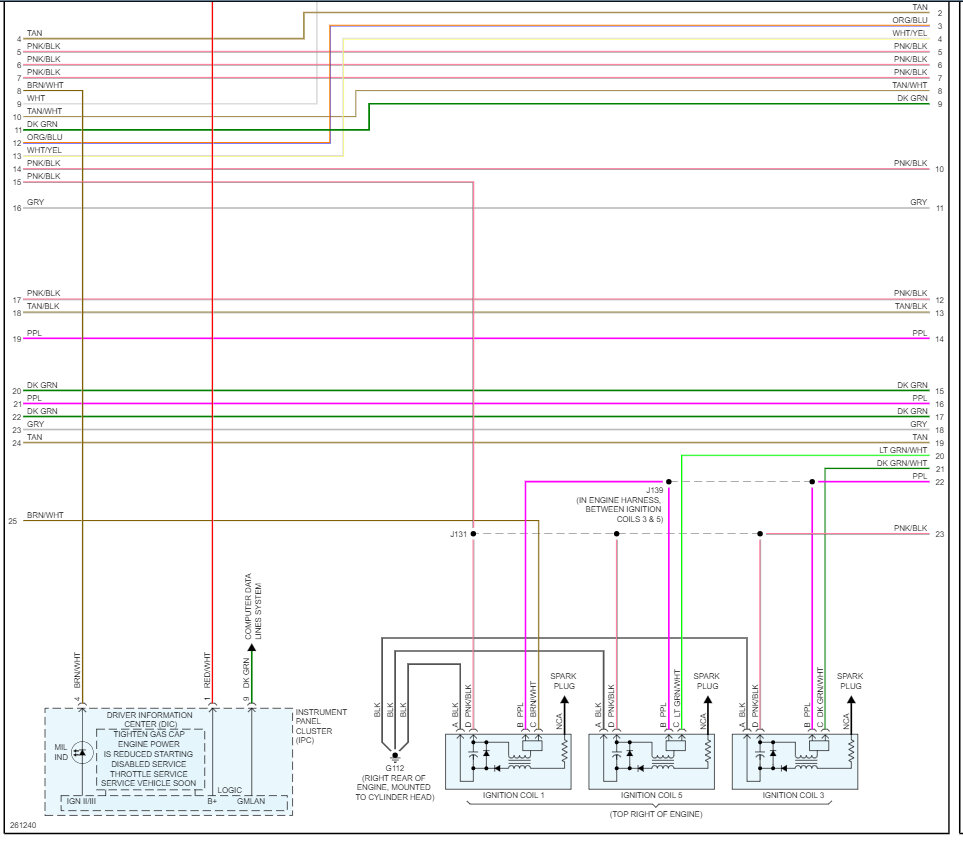

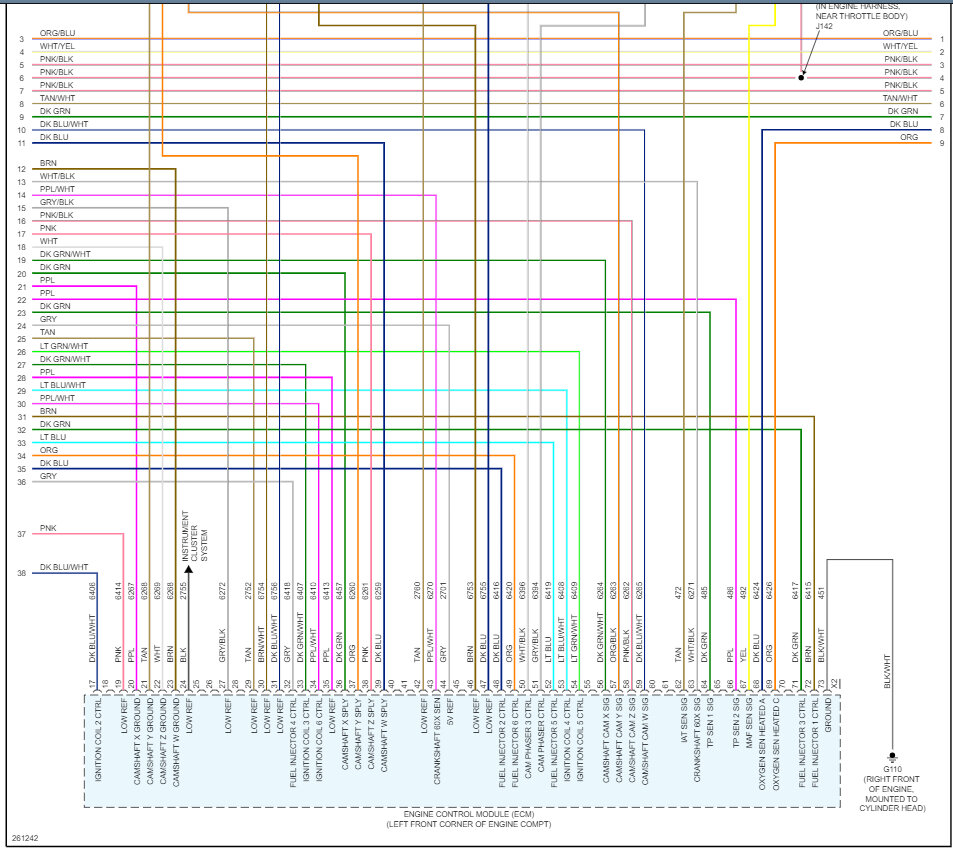

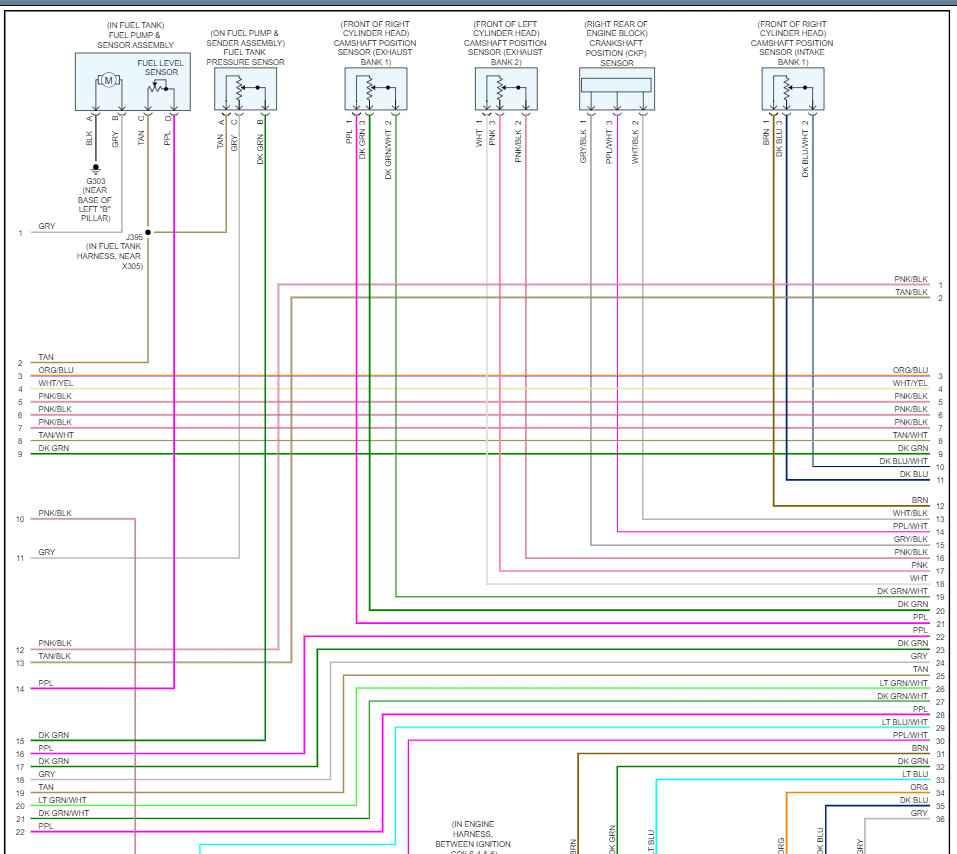

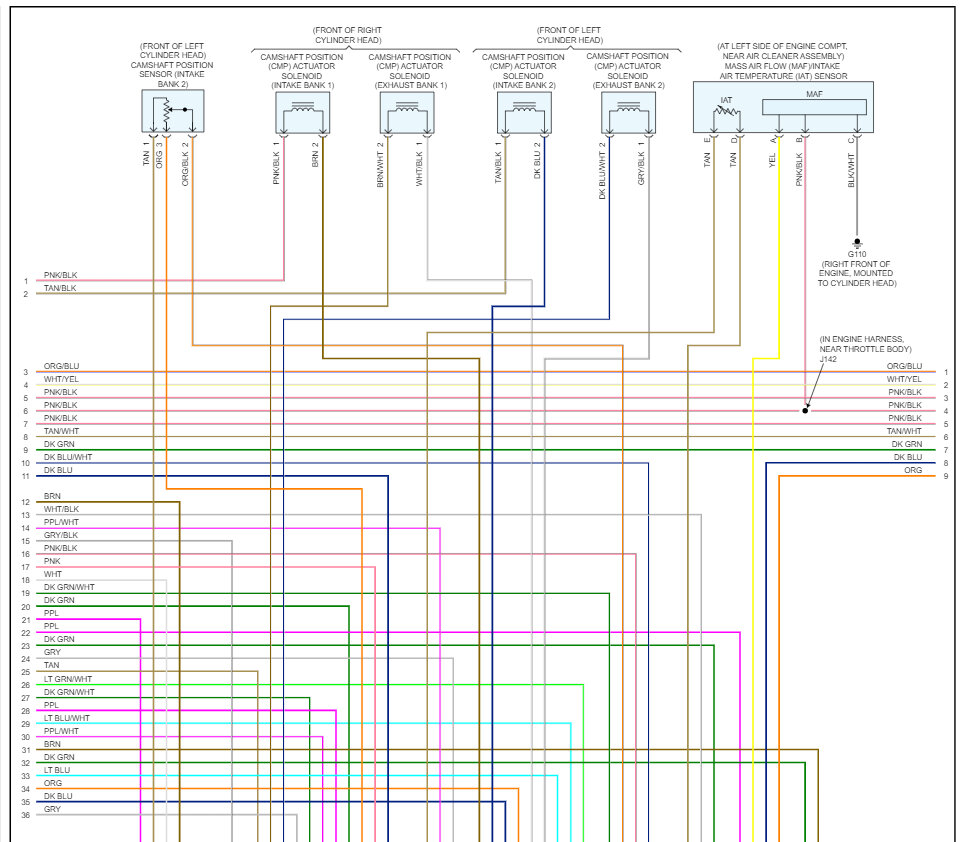

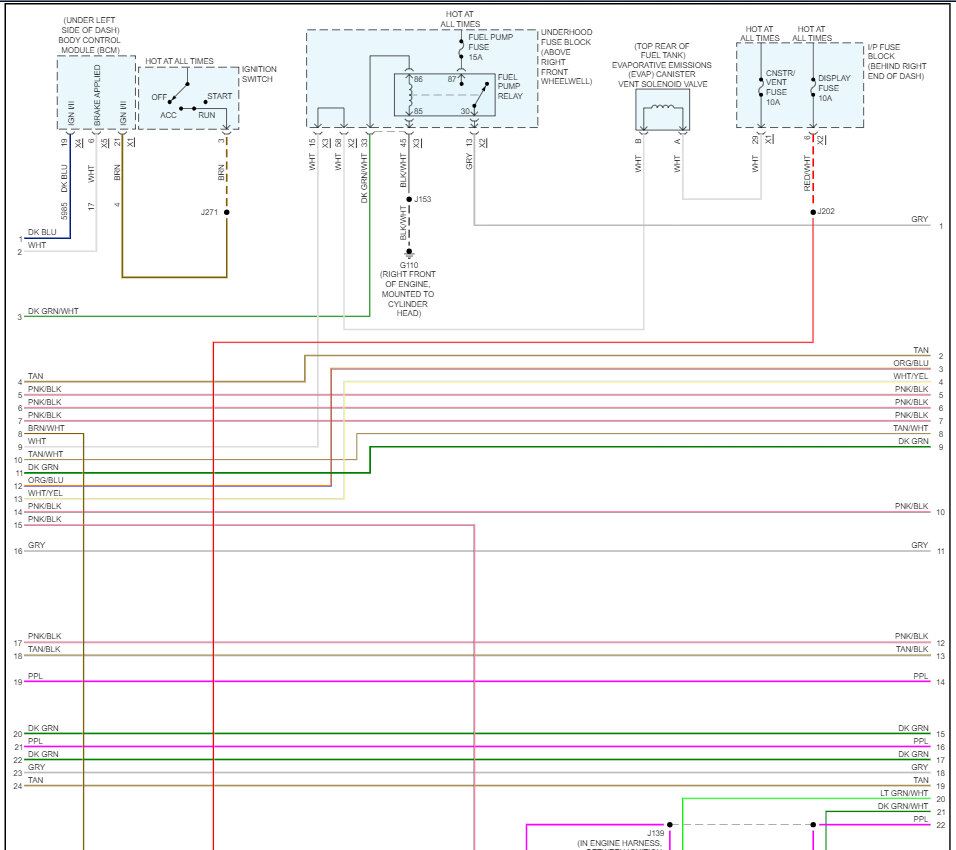

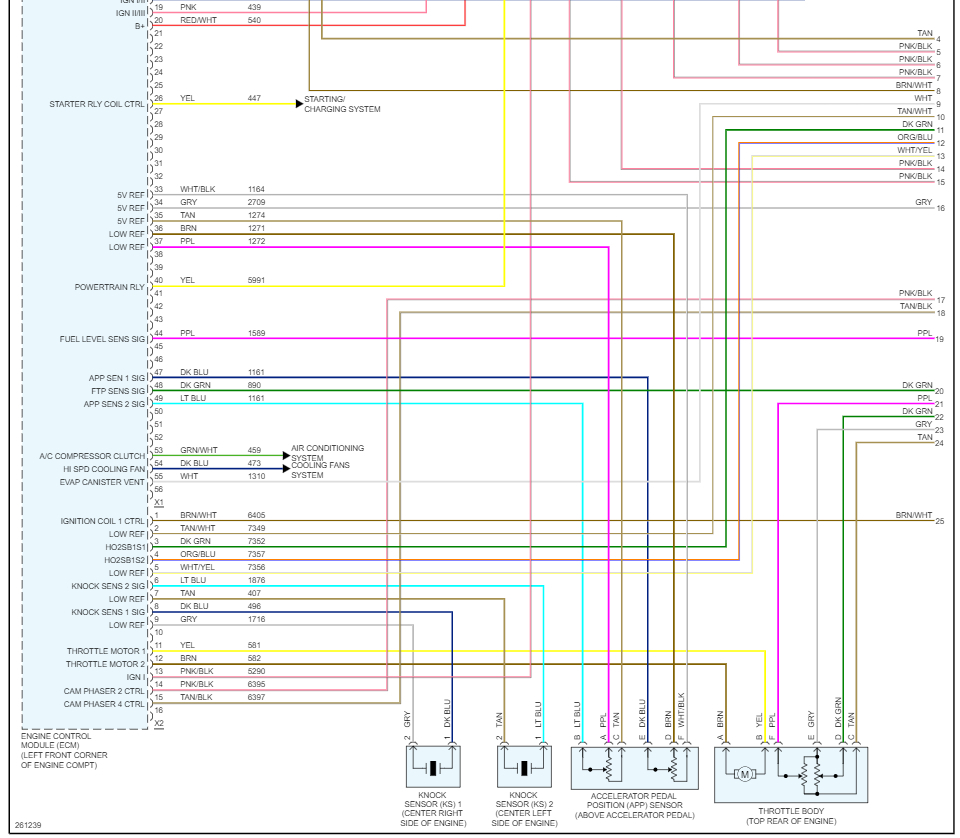

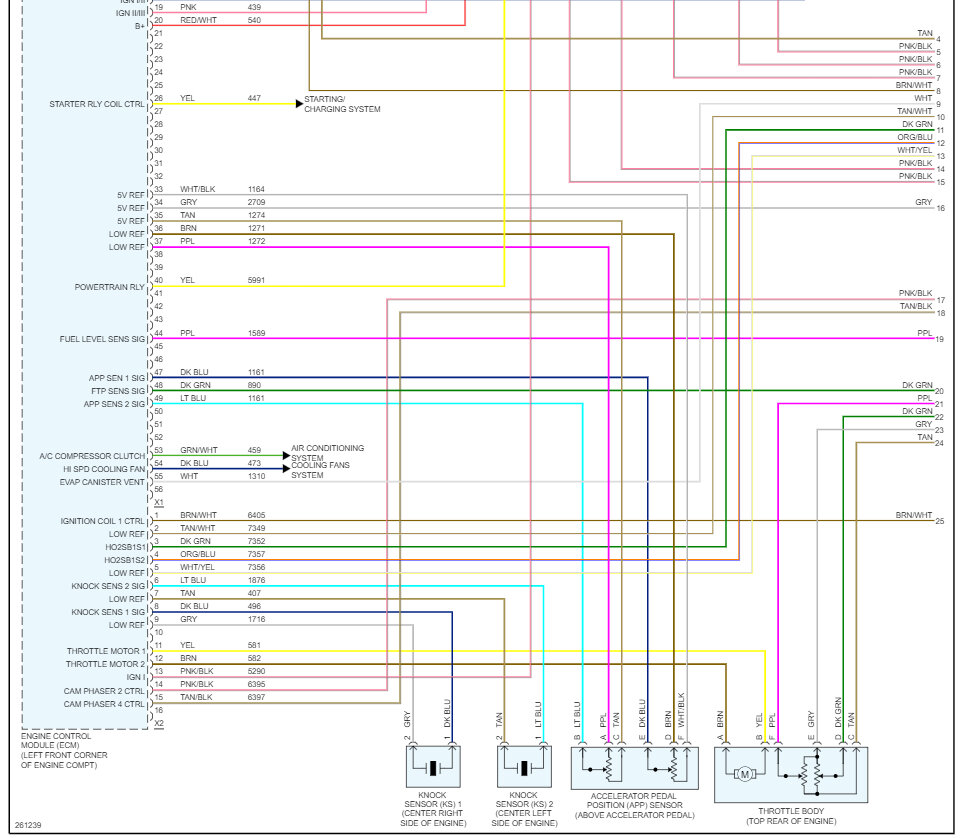

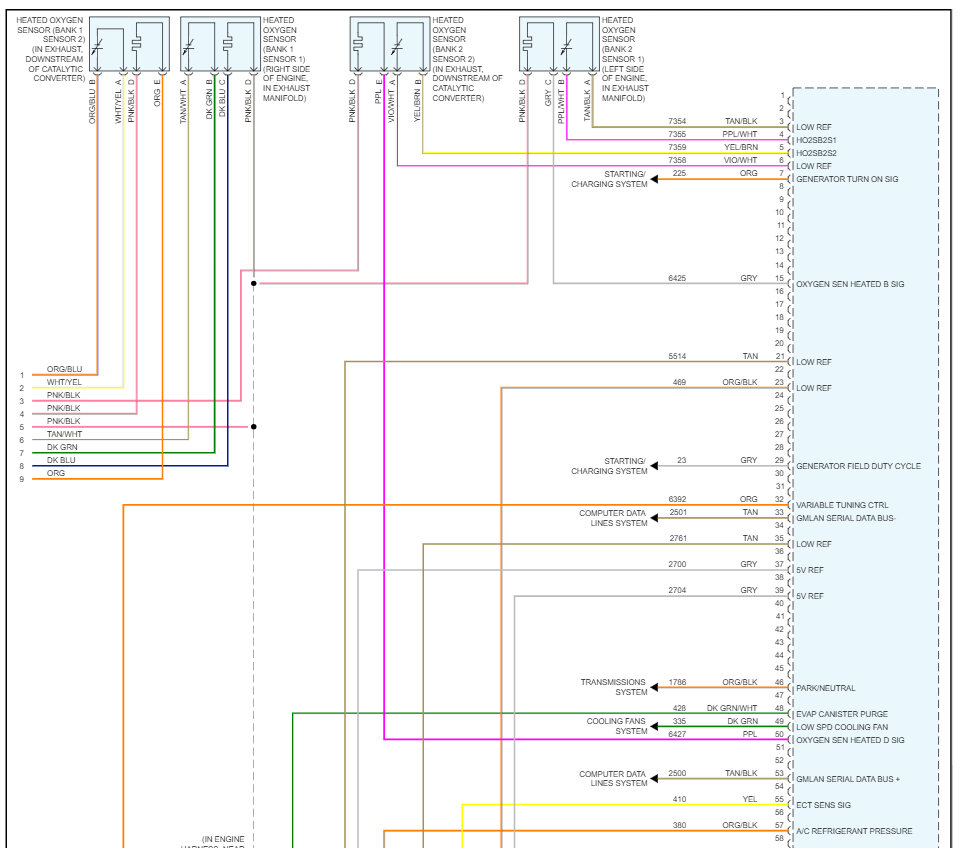

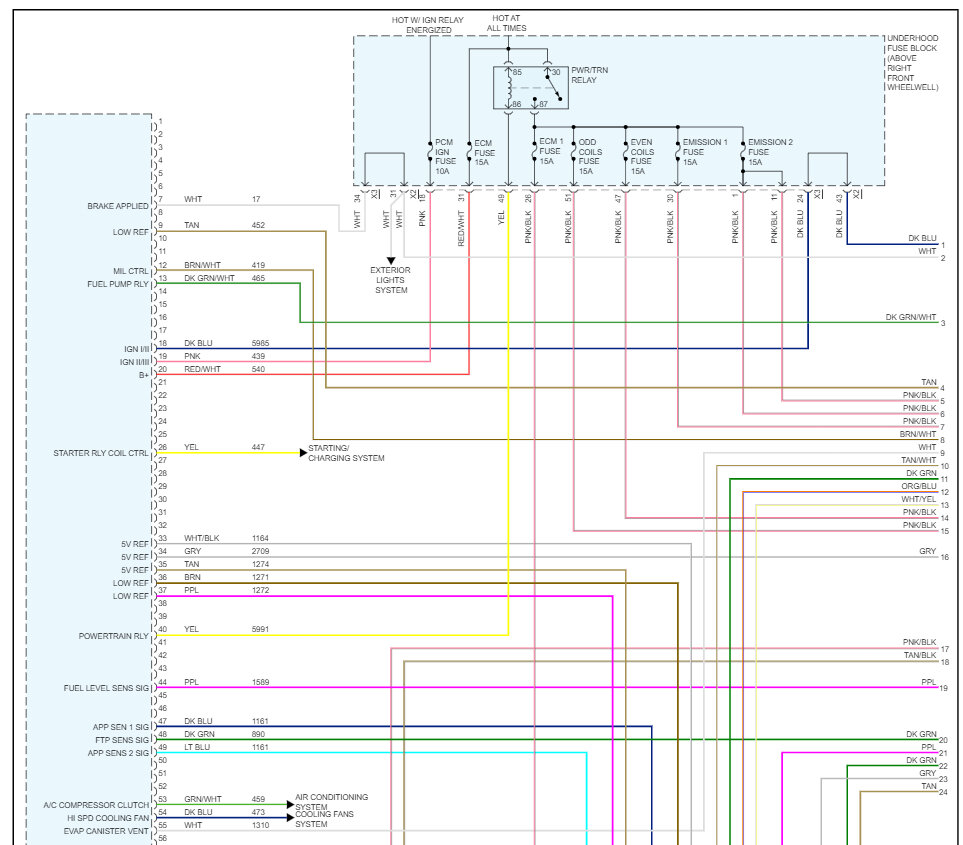

Sure, here are the engine and oxygen sensor wiring diagrams and I have included a guide to help you test the connections.

https://www.2carpros.com/articles/how-to-check-wiring

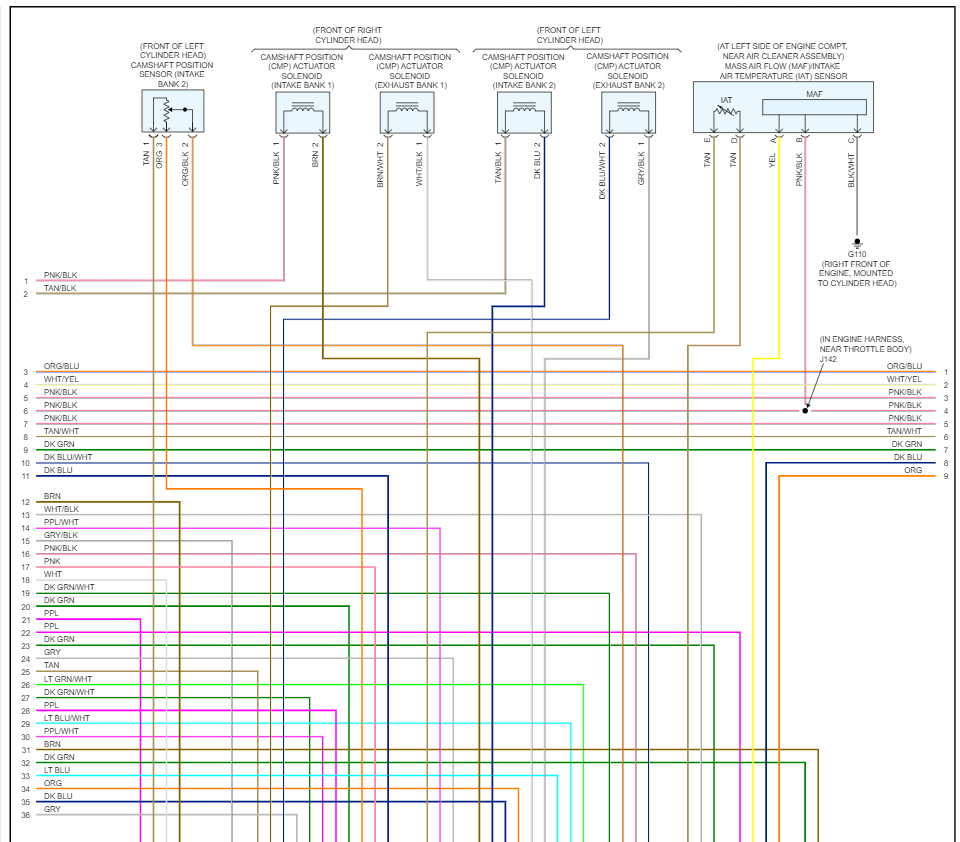

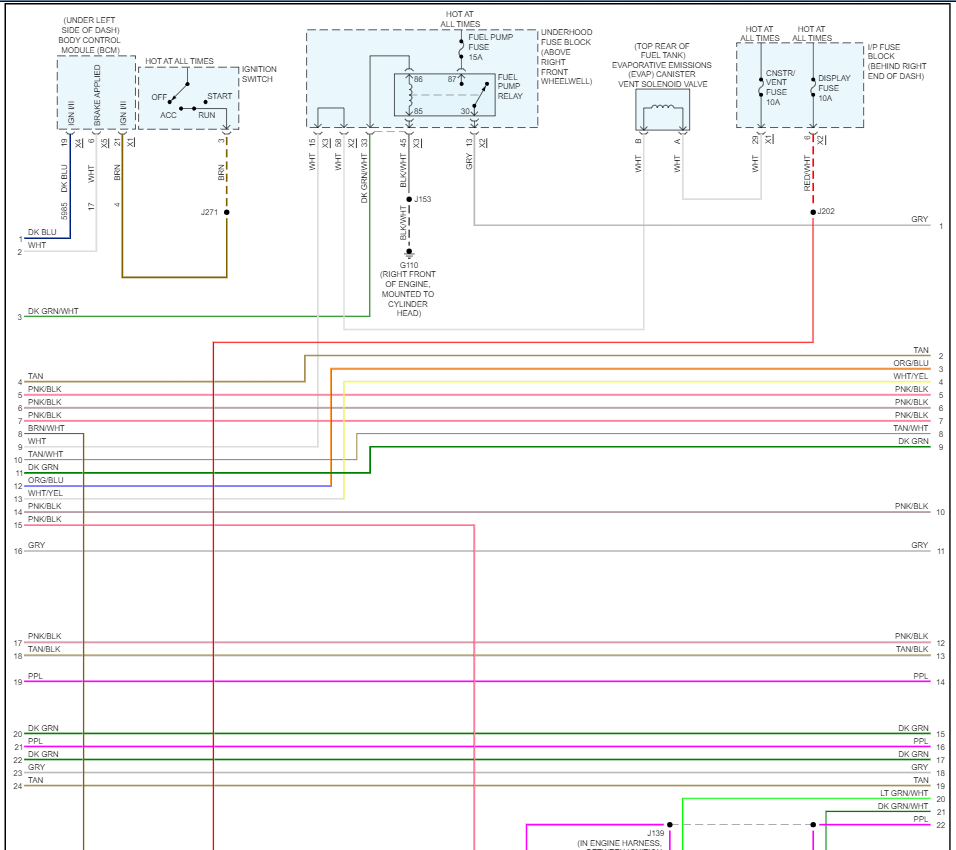

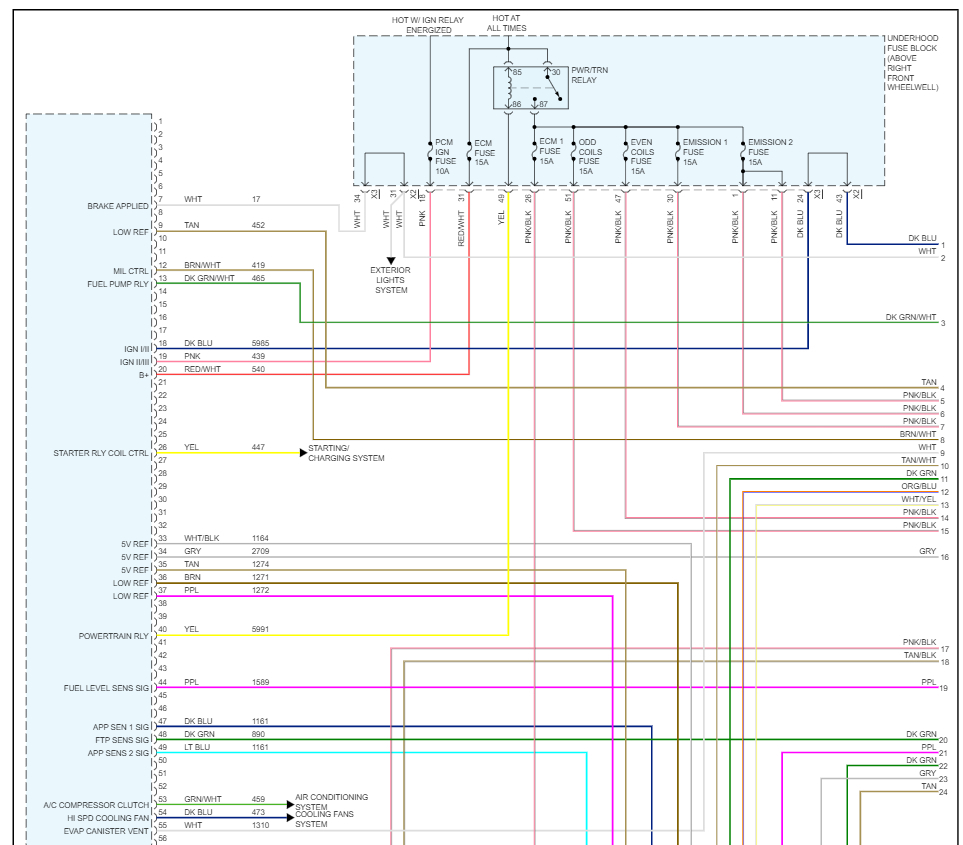

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
