Can I get a wiring color code diagram?
MICHAEL NEEDS HELP
MEMBER
1991 CHEVROLET SILVERADO
4.3L
6 CYL
2WD
AUTOMATIC
178,000 MILES
I need a wiring color code diagram for the truck listed above.
Wednesday, January 25th, 2023 AT 10:56 AM
1 Reply
KEN L
MASTER CERTIFIED MECHANIC
47,256 POSTS

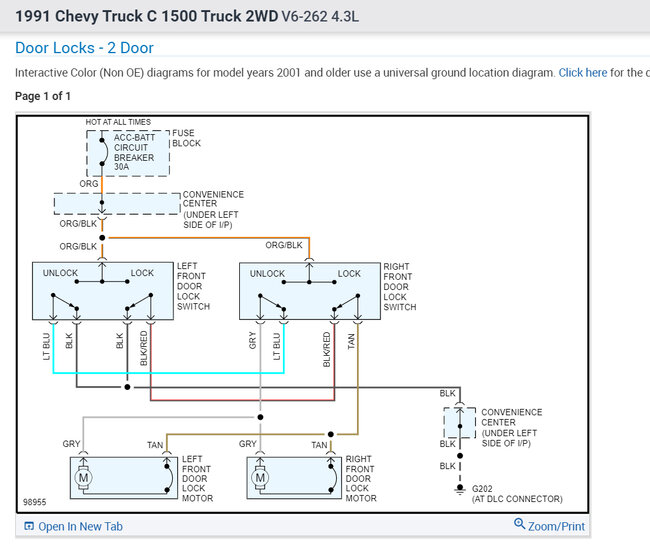

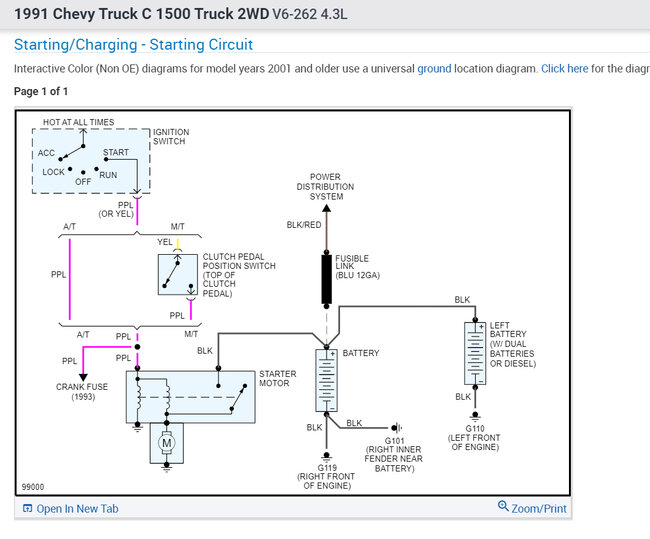

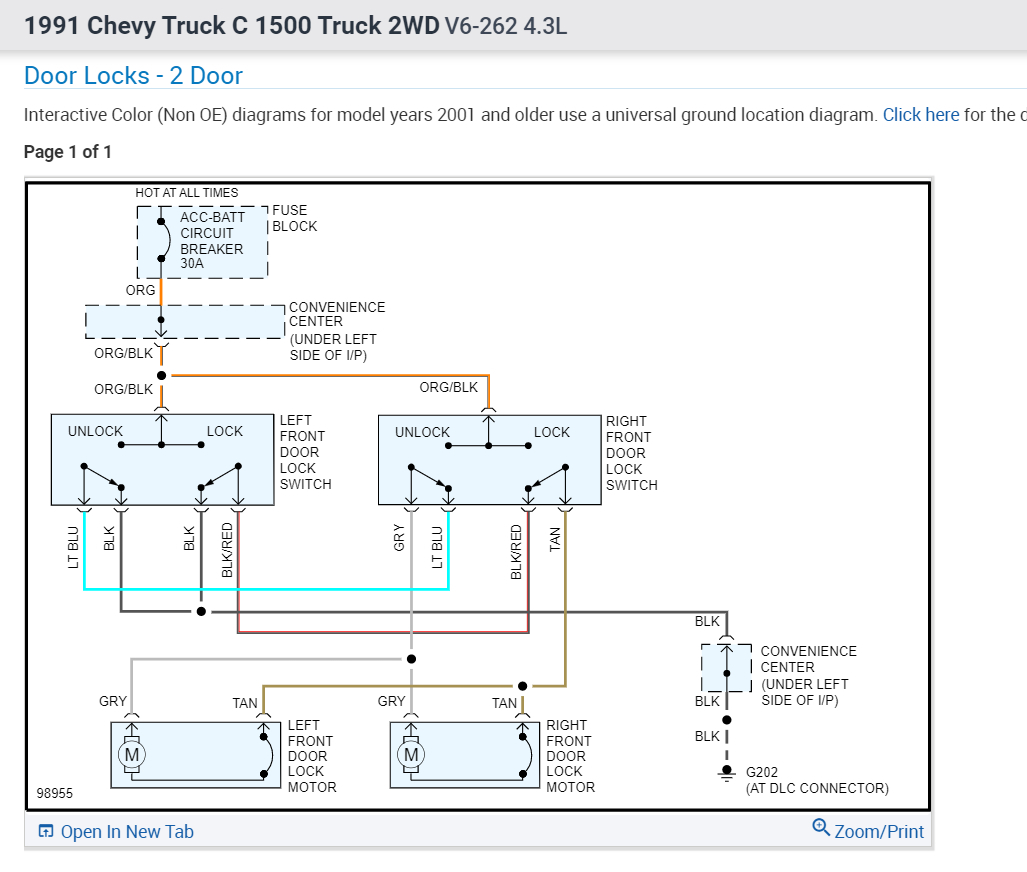

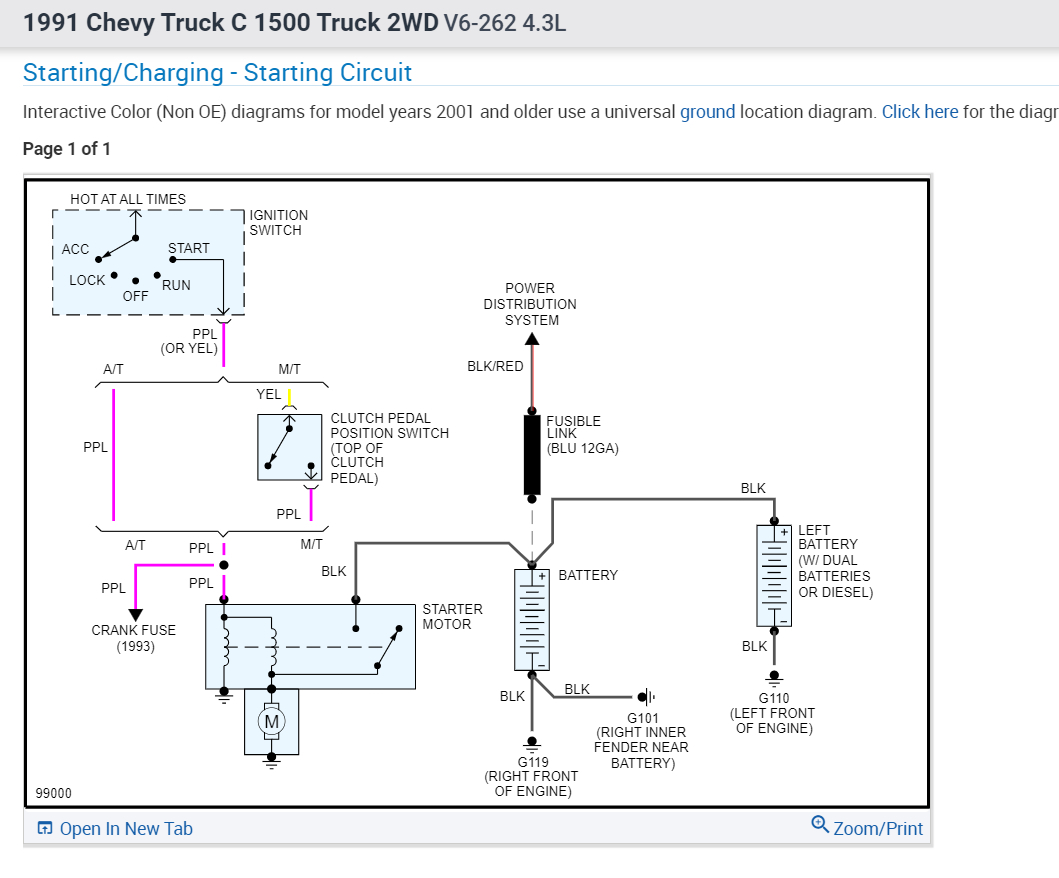

For what system? Here is a guide to help you check the wiring and I have included the door lock and starter wiring diagram as well:
https://www.2carpros.com/articles/how-to-check-wiring
Check out the images (below). Please let us know what happens.
Images (Click to make bigger)
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, January 26th, 2023 AT 11:39 AM
