Wiring diagram for seats power heated and the power windows and power door lock needed

2003 CHEVROLET SILVERADO

155,000 MILES • 8.1L • V8 • 4WD • AUTOMATIC

LOUD PELLETIER

MEMBER
39 POSTS
FOLLOW

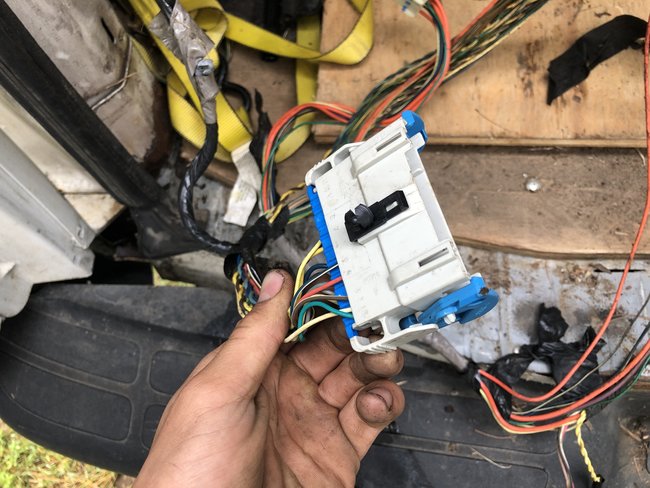

hello, I would like to have the wiring diagram of the seats power heated and the power windows and power door lock. Also tell me what the white connector of the photo below is for and wiring diagram of this connector and the pin out.

Image (Click to enlarge)

Aug 29, 2021 at 8:23 AM

Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.

ASEMASTER6371

AUTOMOTIVE REPAIR CONTRIBUTOR
52,796 POSTS

Good afternoon,

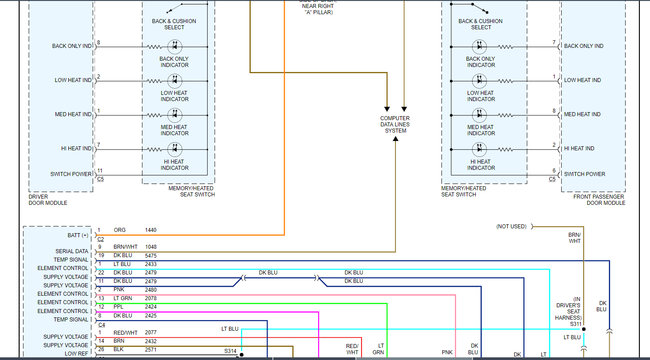

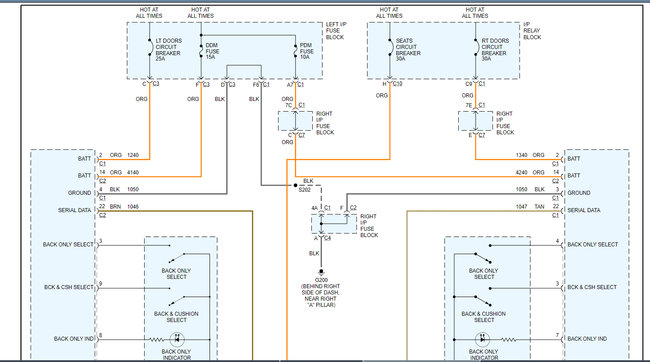

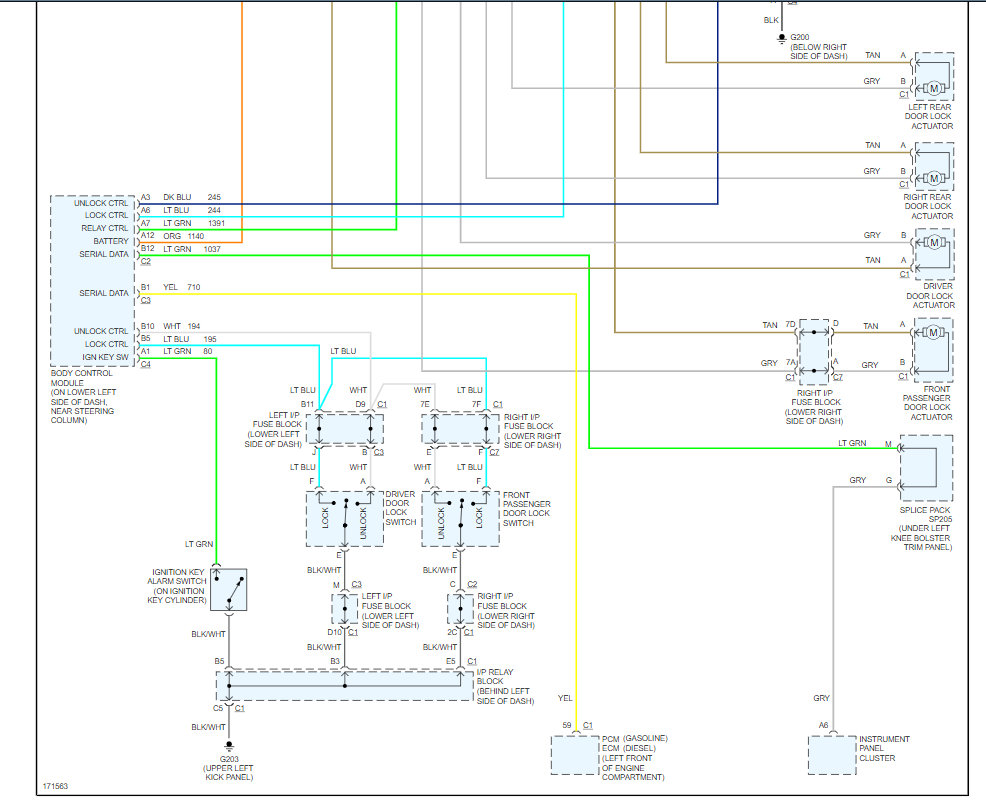

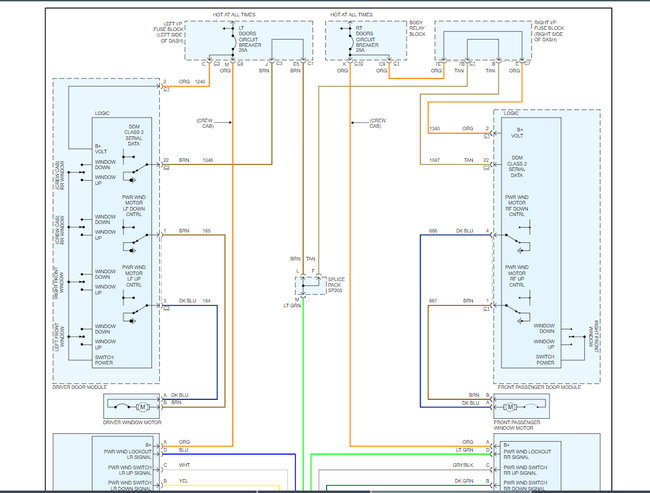

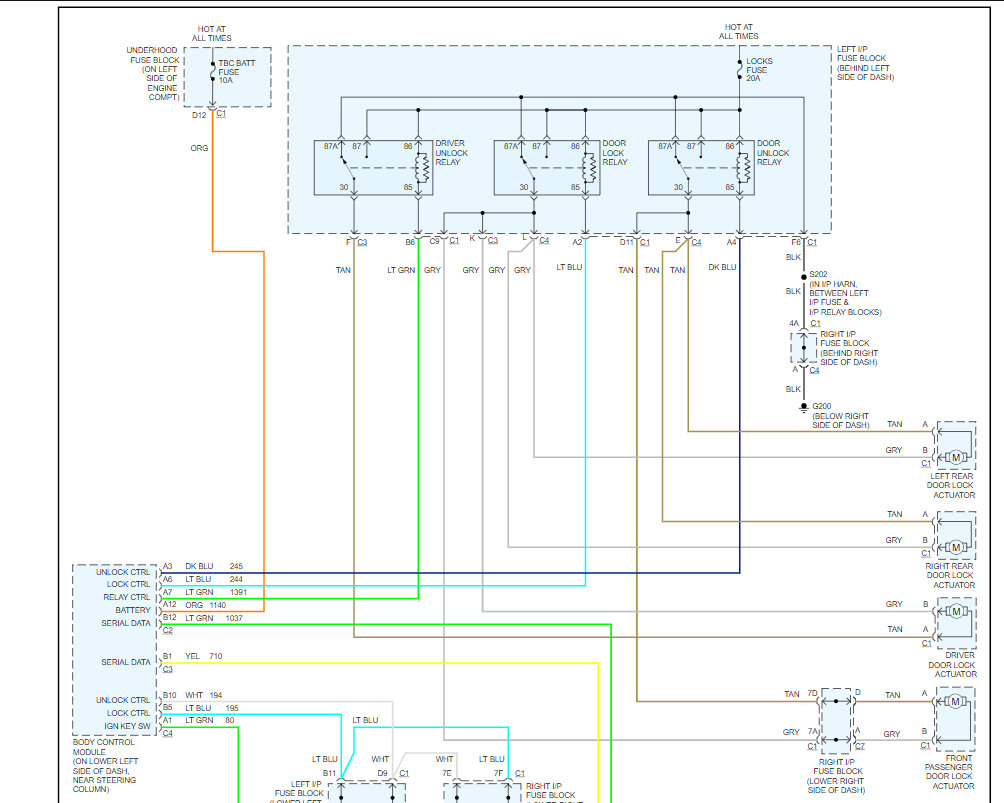

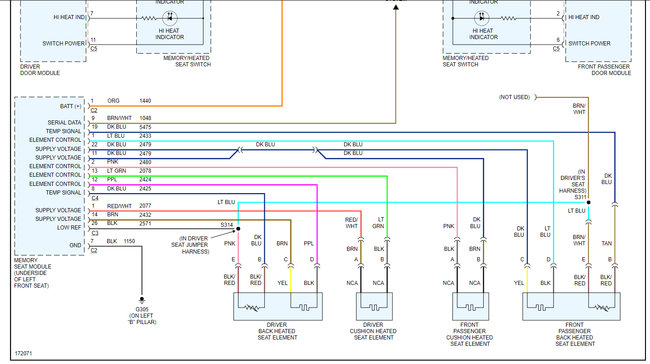

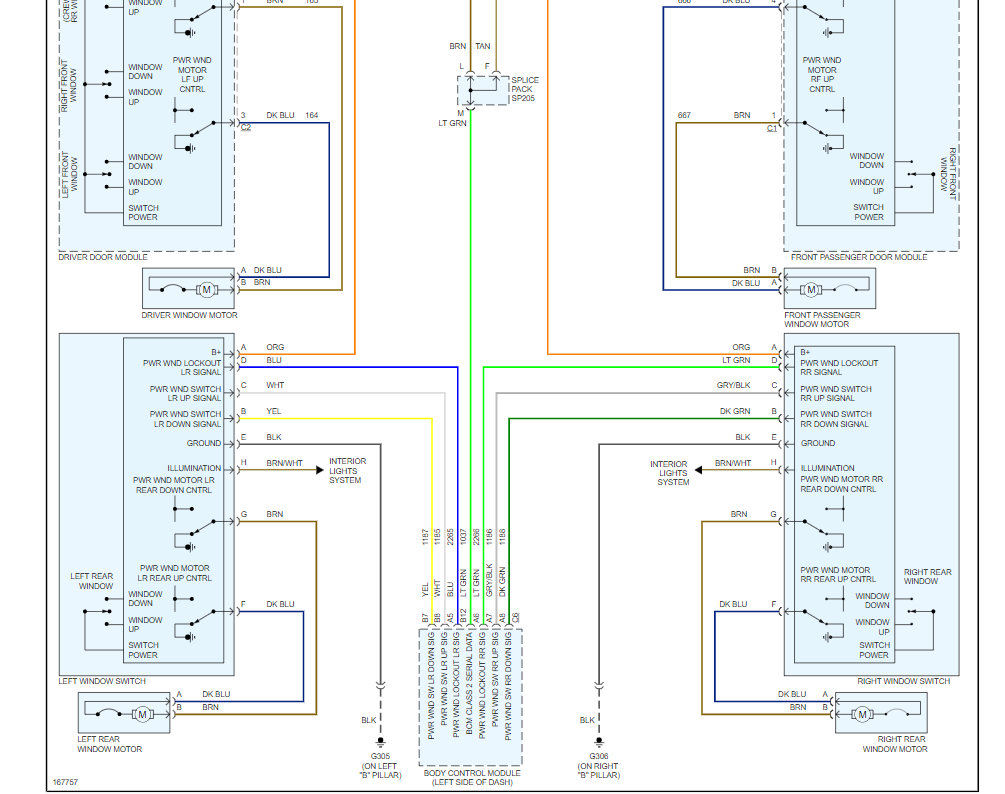

I attached the diagrams for you below of the systems you requested.

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/how-to-use-a-voltmeter

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Let me know if you have any other questions.

Roy

Images (Click to enlarge)

Aug 29, 2021 at 11:07 AM

ASEMASTER6371

AUTOMOTIVE REPAIR CONTRIBUTOR
52,796 POSTS

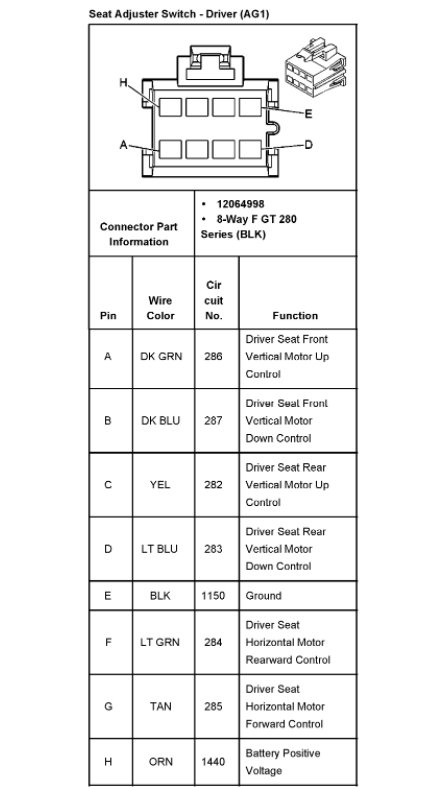

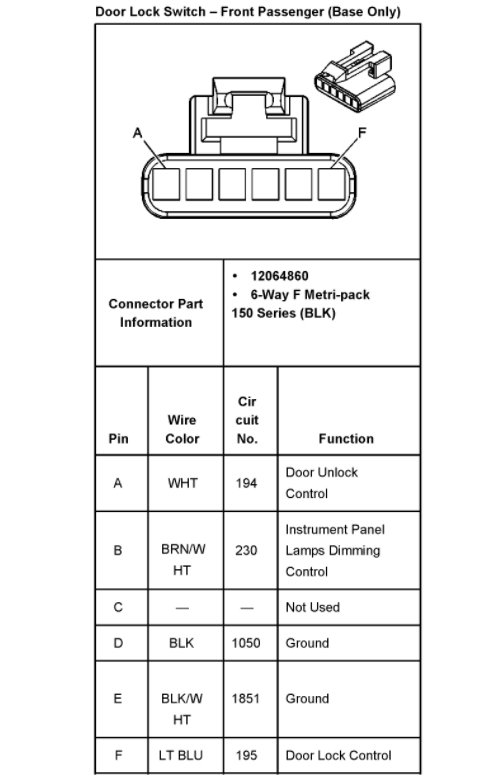

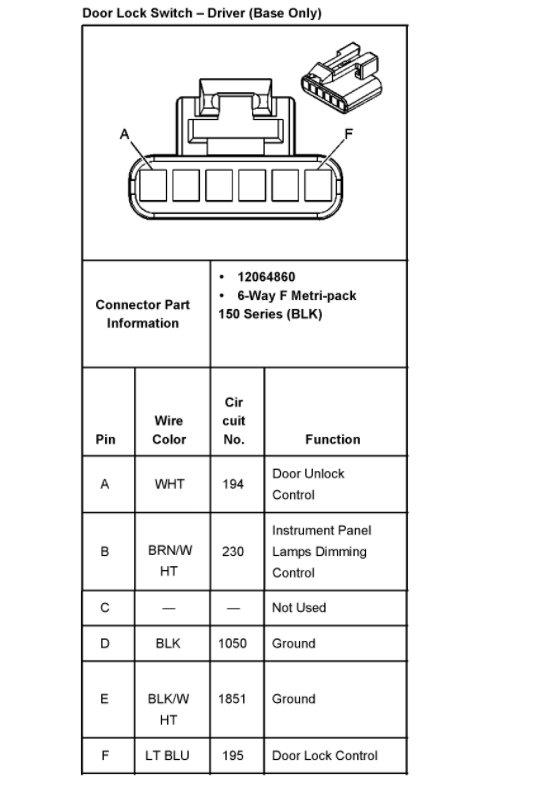

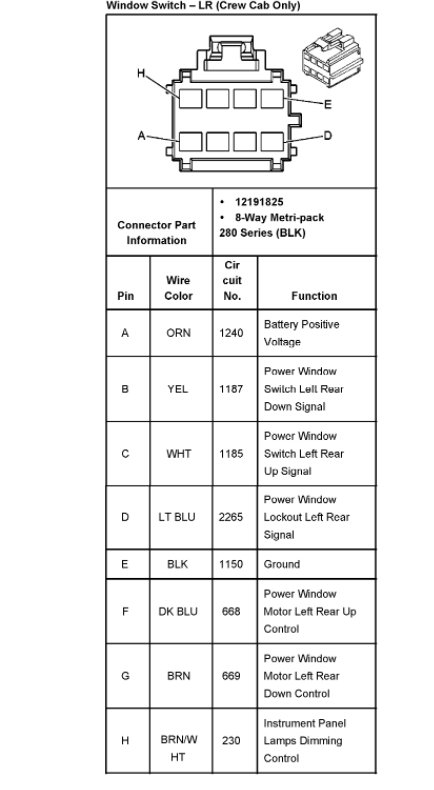

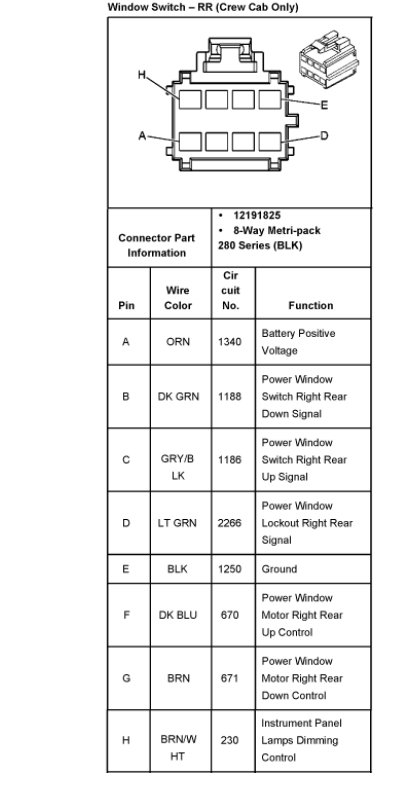

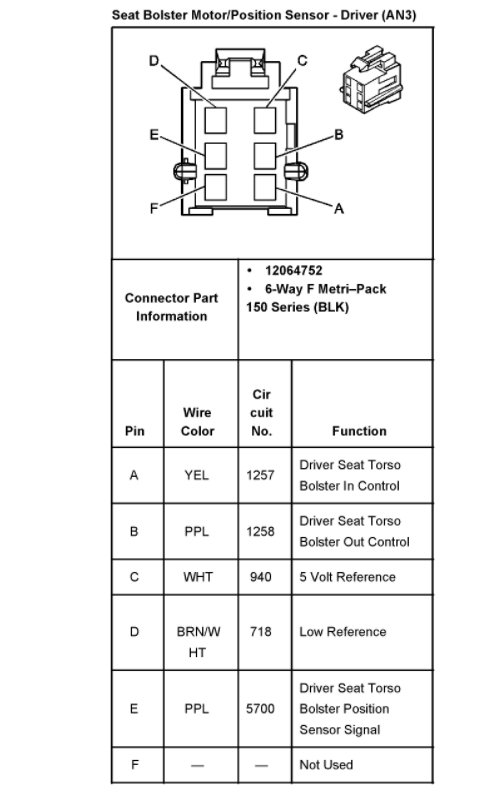

I found connector diagrams for you of the systems as well. I attached them below for you to view.
