Window Wiring diagrams Please

2011 RAM 3500
85,000 MILES • 6.5L • 6 CYL • 4WD • AUTOMATIC
Avatar
JVB1
  • MEMBER
  • 2 POSTS
I am installing a rear power slider in my truck which did not have a factory installed one. The window is in an connected to the harness coming from the headliner. Lowering the front of the headliner there is no harness for the overhead console.

I think that the harness goes to a relay connection and is dead ended there. I want to complete the harness so I can use the same factory harness but need a wire diagram for this.

Can you help?
Mar 17, 2019 at 1:26 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic
Hello,

Here is a guide to help you test the wiring and the window wiring diagrams so you can see how the system works below:

https://www.2carpros.com/articles/how-to-check-wiring

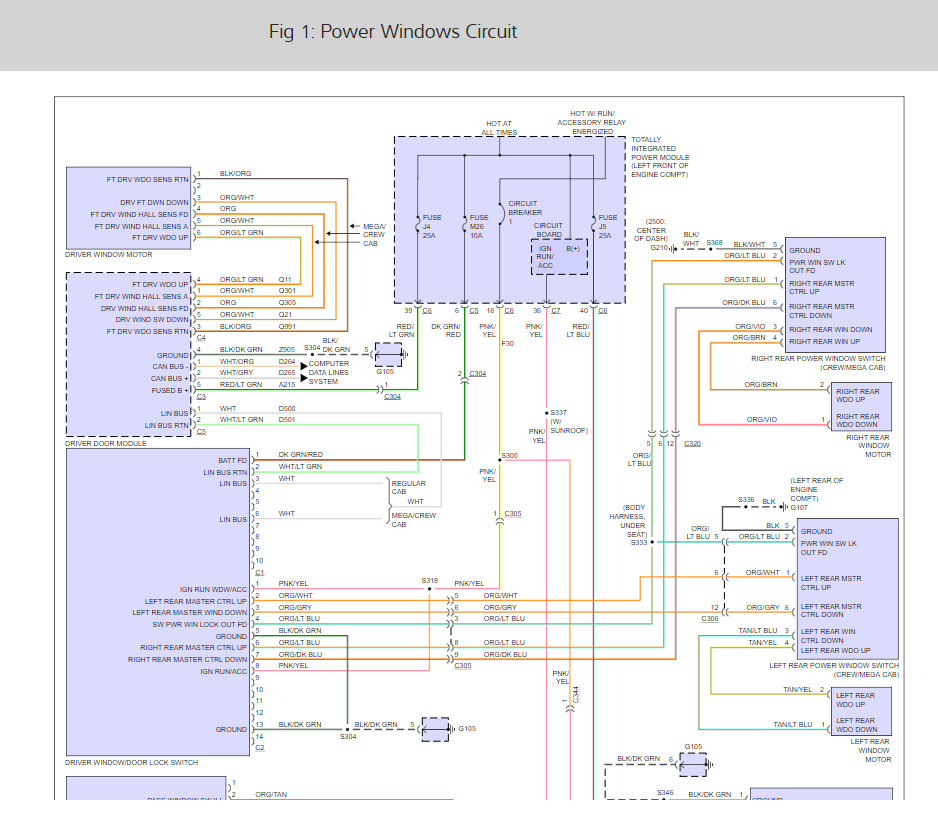

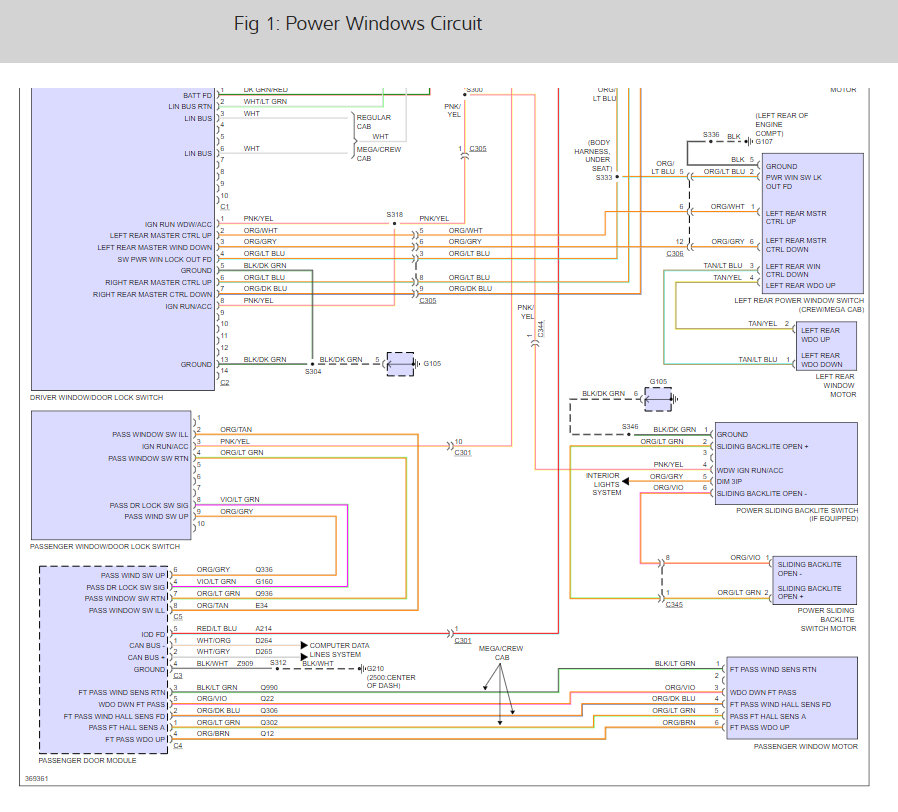

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Mar 18, 2019 at 2:36 PM
