Wiring diagram

2008 DODGE CARAVAN
160,000 MILES • 3.8L • 6 CYL • 2WD
Avatar
TCOX8
  • MEMBER
  • 4 POSTS
I am needing the name of the connector and wiring diagram for the van SXT model.


The connector is a 10 pin black connector. It is near a 10 pin brown connector and the throttle body/ETC. Here is what I believe it is connected to:

EGR Signal
MAP Signal
ECT Signal
EGR CONTROL
INJECTOR 2 Control
INJECTOR 4 Control
COIL 1 Control
COIL 2 Control
COIL 3 Control
Ground
Jan 6, 2020 at 4:46 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
TCOX8
  • MEMBER
  • 4 POSTS

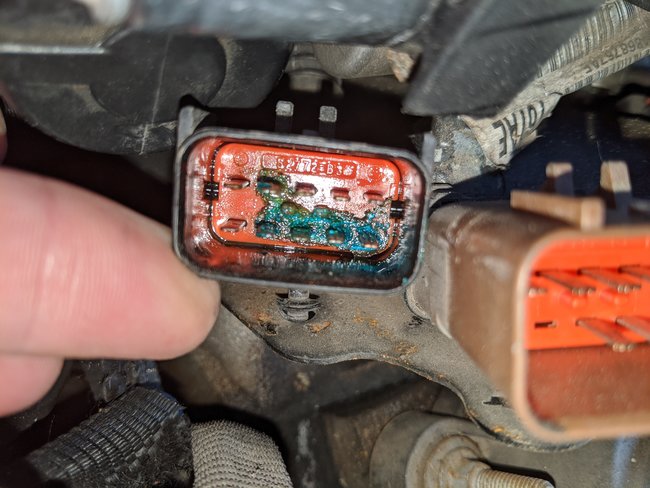

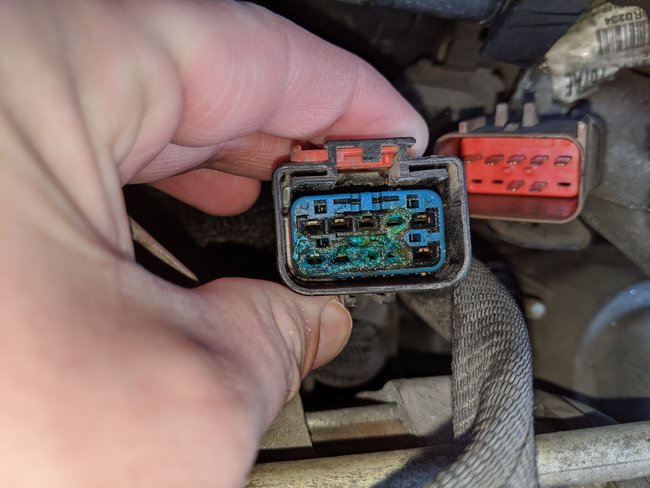

Here is the connector:
Images (Click to enlarge)
Attached Media
Attached Media
Jan 6, 2020 at 4:50 PM
Avatar
ASEMASTER6371
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 52,796 POSTS
Good evening,

Are there any numbers on the connector?

Roy
Jan 6, 2020 at 5:59 PM
Advertisement
Avatar
TCOX8
  • MEMBER
  • 4 POSTS
Only numbers I can make out are in the picture.

52772 3b
Jan 6, 2020 at 6:51 PM
Avatar
ASEMASTER6371
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 52,796 POSTS
Okay, that is the part number.

Let me check for any 10 wire connectors on the engine.

Roy
Jan 6, 2020 at 7:16 PM
