Wiring color code diagram for the 02 sensor bank 1 sensor 1 to the ECM needed.

Tiny
WOLFE4537
  • MEMBER
  • 2012 HYUNDAI SONATA
  • 2.0L
  • 4 CYL
  • TURBO
  • 2WD
  • AUTOMATIC
  • 120,000 MILES
I need a color code wiring harness diagram for the car listed above.
Wednesday, June 28th, 2023 AT 2:26 PM

7 Replies

Tiny
MATHGEN
  • MECHANIC
  • 128 POSTS

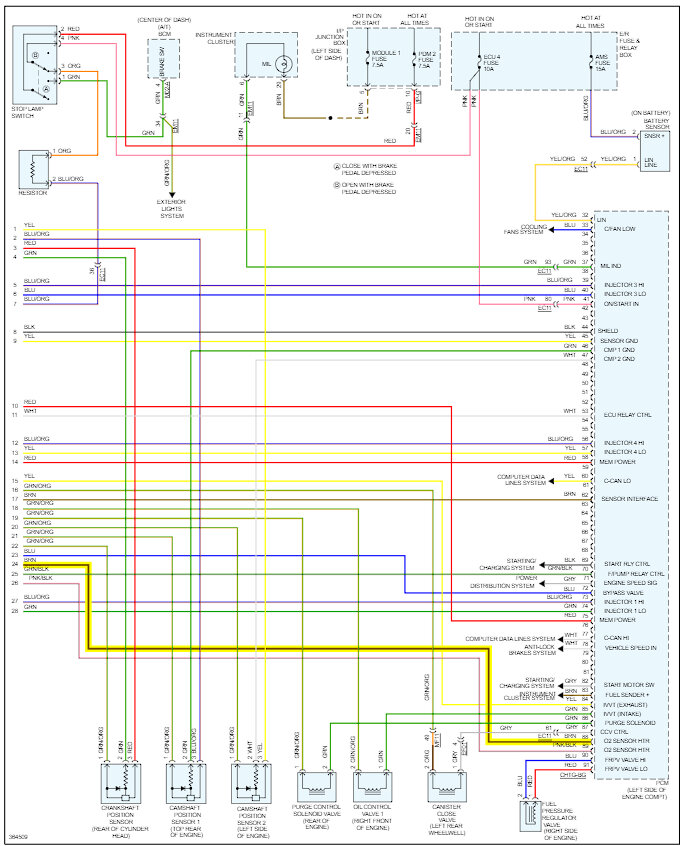

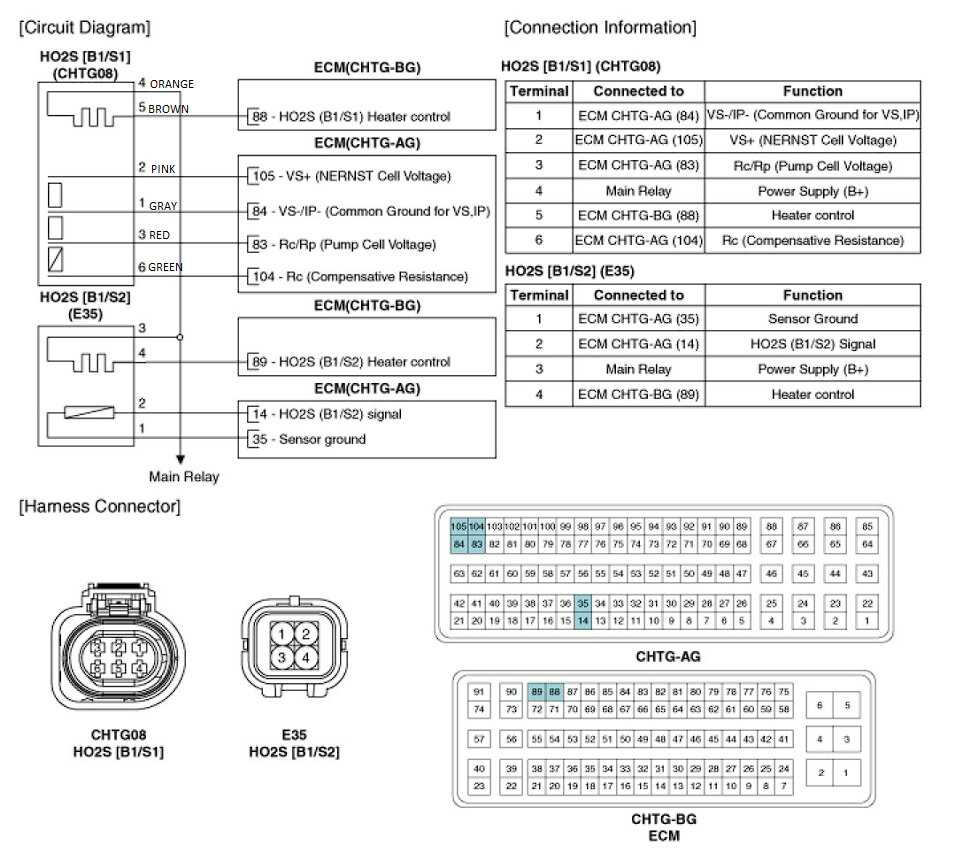

Here you go. I hope these work for you. Let me know if you need any further assistance.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, June 28th, 2023 AT 5:30 PM
Tiny
WOLFE4537
  • MEMBER
  • 5 POSTS
Can't read what's what on it.
Was this
answer
helpful?
Yes
No
Wednesday, June 28th, 2023 AT 7:03 PM
Tiny
WOLFE4537
  • MEMBER
  • 5 POSTS
Is there any way I can get it clear?
I can't make out any of the writing on it even on a pc.
Was this
answer
helpful?
Yes
No
Wednesday, June 28th, 2023 AT 7:18 PM
Tiny
MATHGEN
  • MECHANIC
  • 128 POSTS

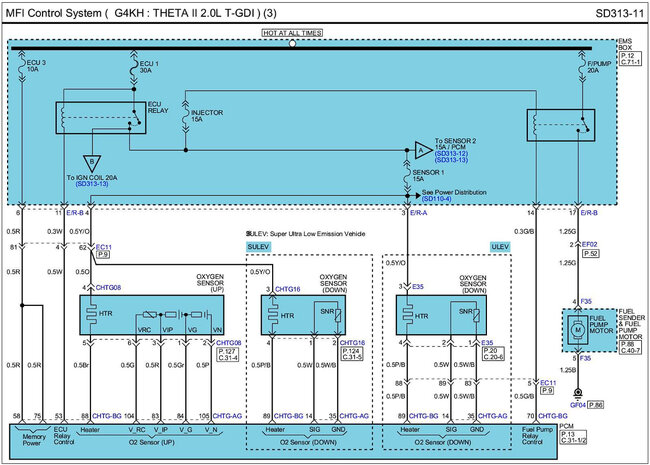

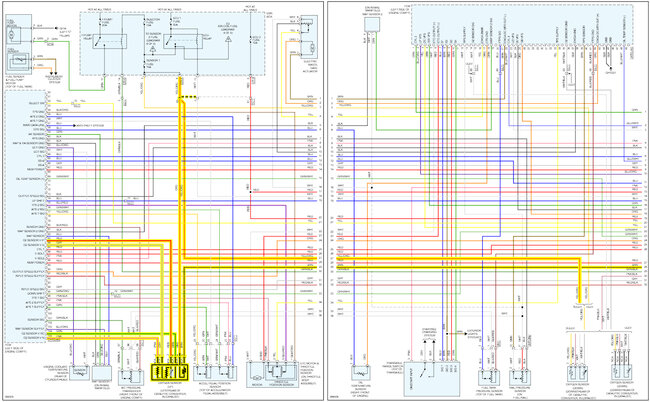

Sorry about that. These look better on my end. Let me know if they are okay.
Images (Click to make bigger)
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+1
Thursday, June 29th, 2023 AT 5:15 AM
Tiny
WOLFE4537
  • MEMBER
  • 5 POSTS
The lower one was the one I have, it would have been perfected but it does not give you the colors of the line. And you can't back track the wire to the harness because you can't take apart the ECM wiring harness to see what the color of the wire is.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, June 29th, 2023 AT 5:21 AM
Tiny
MATHGEN
  • MECHANIC
  • 128 POSTS

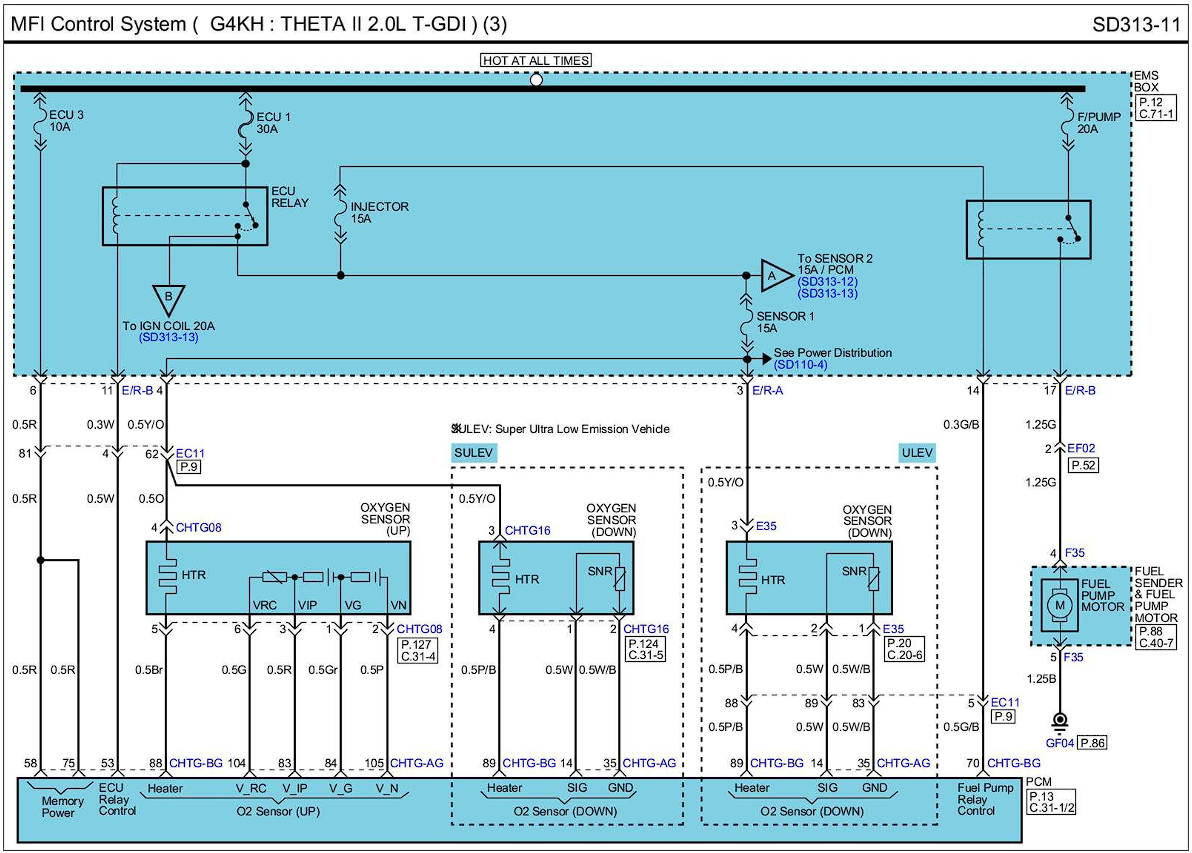

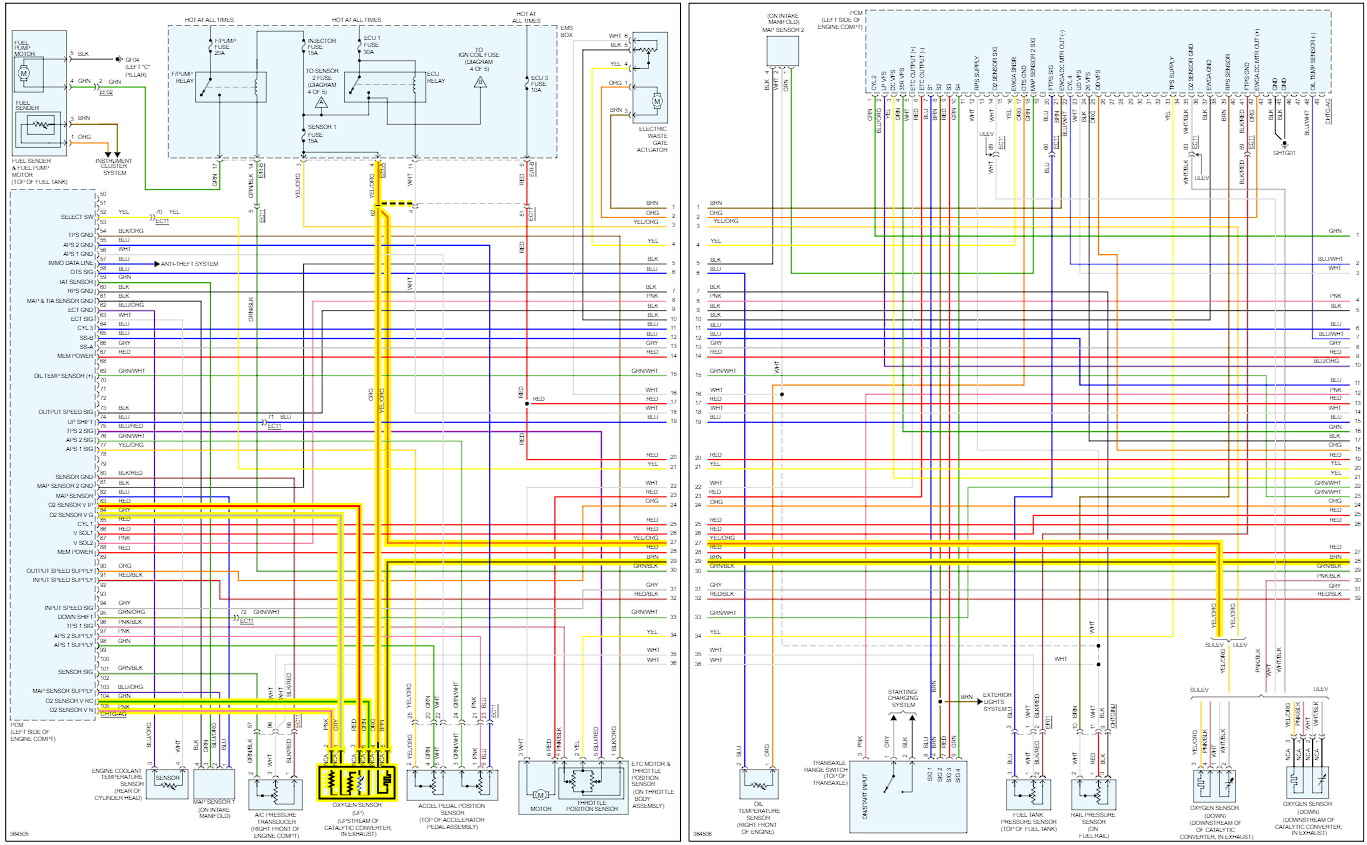

I updated the image to add the wire colors. I hope this is what you need.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+1
Thursday, June 29th, 2023 AT 8:39 AM
Tiny
WOLFE4537
  • MEMBER
  • 5 POSTS
Thank you so much, you're amazing.
Was this
answer
helpful?
Yes
No
Thursday, June 29th, 2023 AT 11:57 AM
