Wiring

2006 CHRYSLER 300
114,000 MILES • 5.7L • V8 • 2WD • AUTOMATIC
Avatar
JUNIOR AGUIRRE
  • MEMBER
  • 13 POSTS
So I changed alternator and noticed that there are some cut wires running by the alternator and they are glued. Seems like it was done on purpose. I just purchased this car. Can anybody help or give me advice?
Aug 6, 2018 at 7:05 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
DANNY L
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 5,648 POSTS
Hello, I am Danny.

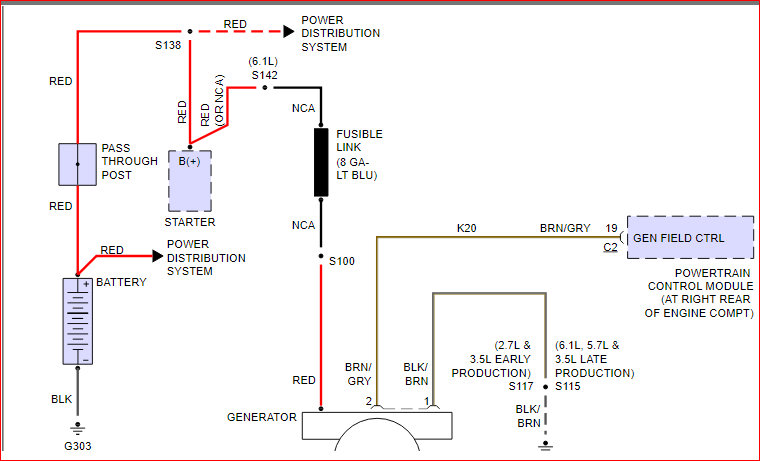

I have attached a picture of your charging/alternator wiring diagram. If you need any other diagrams of the wiring let me know. I have also attached a link showing how to test. Hope this helps and thanks for using 2CarPros.
Danny-

https://www.2carpros.com/articles/how-to-check-wiring
Image (Click to enlarge)
Attached Media
Aug 6, 2018 at 6:49 PM
