Color of wires including fusible links on solenoid and where they lead to. A diagram would be a great help. .
Dec 23, 2018 at 1:04 PM
Diagram fusible links on solenoid
1993 BUICK CENTURY
MECHANICNOONE
- MEMBER
- 7 POSTS
Advertisement
JACOBANDNICKOLAS
- ✓ASE Certified Mechanic
- 110,194 POSTS
Hi and thanks for using 2CarPros.

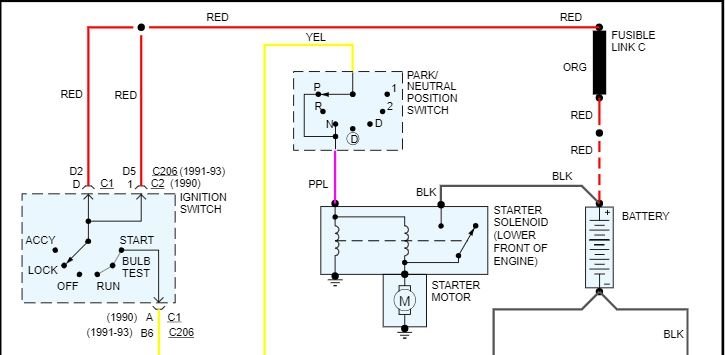

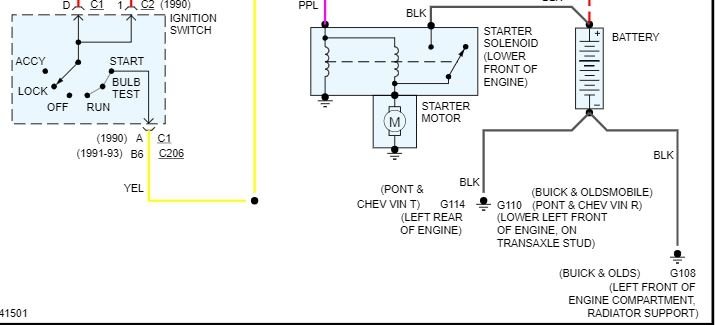

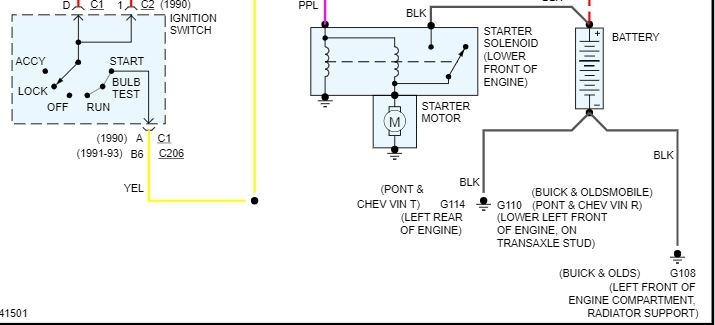

I attached the starting system schematic. I had to cut it in two to get the entire picture. However, I did overlap it so you can easily follow it.
Let me know if this helps.
Take care,
Joe
I attached the starting system schematic. I had to cut it in two to get the entire picture. However, I did overlap it so you can easily follow it.
Let me know if this helps.
Take care,
Joe
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Dec 23, 2018 at 6:31 PM
The diagrams help me considerably. There are two rusty colored fusible links going to the solenoid. Do you have a diagram of the front of the solenoid showing or telling what the fusible links are for and what part they represent? Including other wires to the solenoid.
