Does anyone have the rear trunk harness wire color to connect?
Dec 16, 2020 at 3:32 PM
Rear trunk wiring harness diagram needed
2004 HONDA PILOT
ALBERT MARTINEZ
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hi,

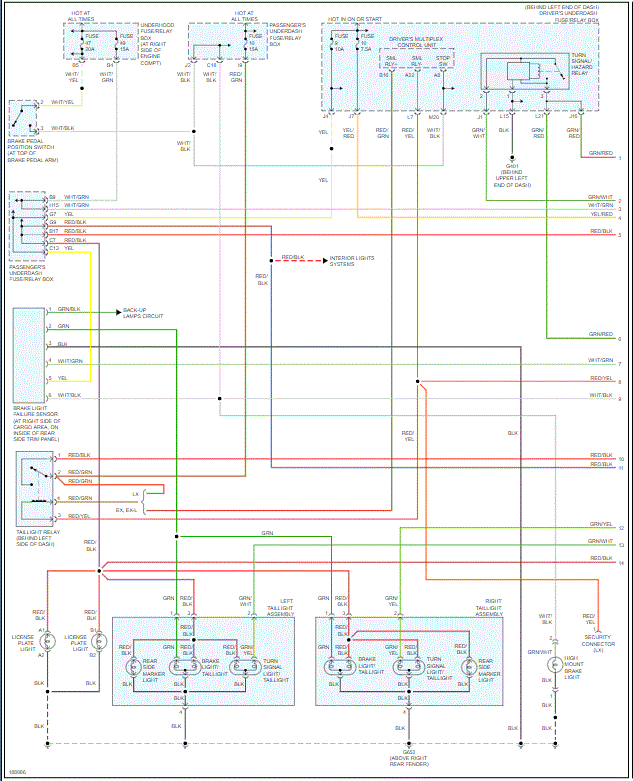

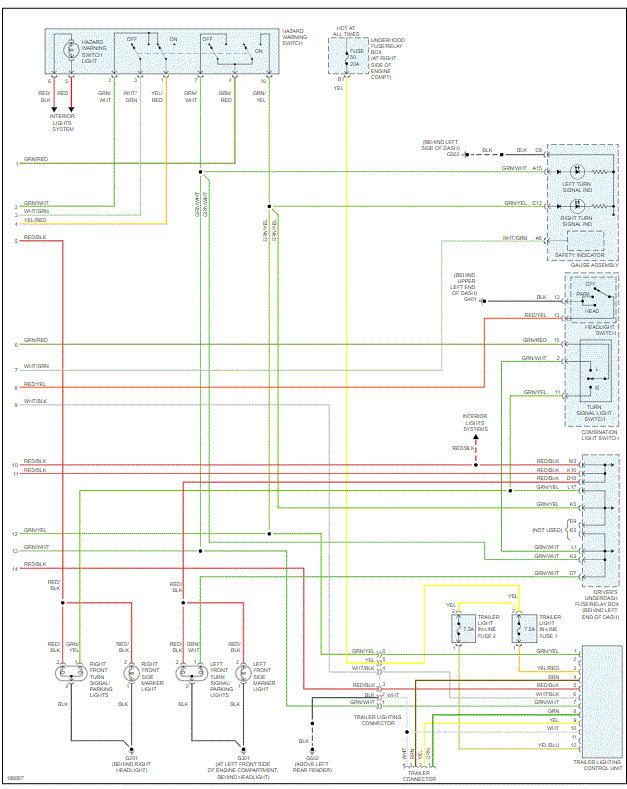

I'm attaching the lighting schematics which include the rear lights. I'm not sure what you are actually looking for. If you have a specific component, let me know what if it.
Here is a link that you may find helpful:
https://www.2carpros.com/articles/how-to-check-wiring
Let me know.
Joe
I'm attaching the lighting schematics which include the rear lights. I'm not sure what you are actually looking for. If you have a specific component, let me know what if it.
Here is a link that you may find helpful:
https://www.2carpros.com/articles/how-to-check-wiring
Let me know.
Joe
