factory stereo wiring diagram needed?

2007 TOYOTA RAV4
171,976 MILES • 3.5L • V6 • 2WD • AUTOMATIC
Avatar
JEWELSLYNNE79
  • MEMBER
  • 14 POSTS
Was needing wire diagram for the factory stereo so I could hook up a Metra WM-LOCKN universal output converter is the brand of converter box I'm using if you can help, I would greatly appreciate it.
Oct 3, 2023 at 3:46 PM
Advertisement
Avatar
MONSTERTRUCKDADDY
  • ✓ASE Certified Mechanic
  • 31 POSTS
  • ASE Certified Mechanic
Hello,

Does your Rav4 have a factory JBL stereo or just standard?

There's a couple of options... I will include both.

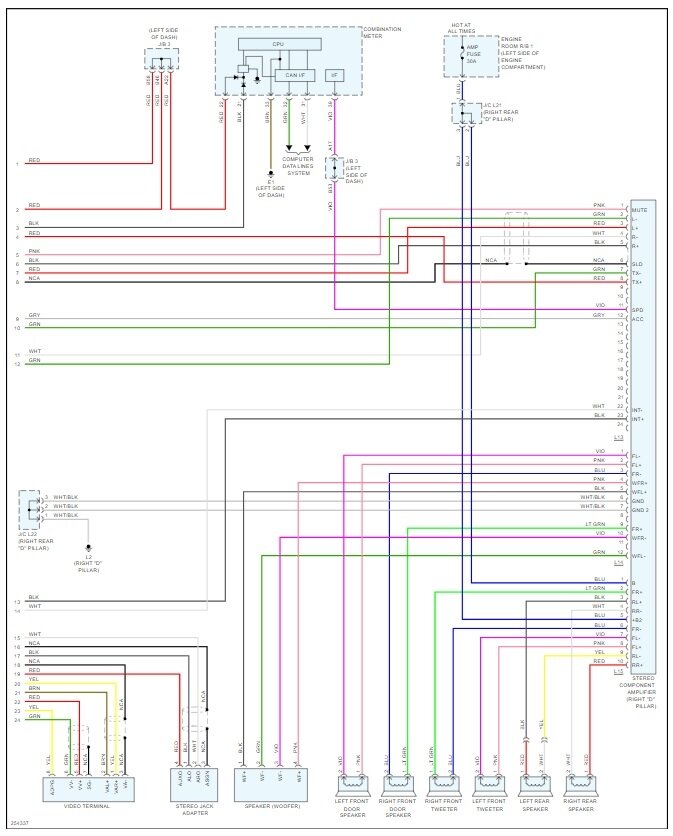

Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Oct 3, 2023 at 7:03 PM
Avatar
MONSTERTRUCKDADDY
  • ✓ASE Certified Mechanic
  • 31 POSTS
  • ASE Certified Mechanic
more diagrams... these are if your truck has the JBL system... it's tied in with a few more things.

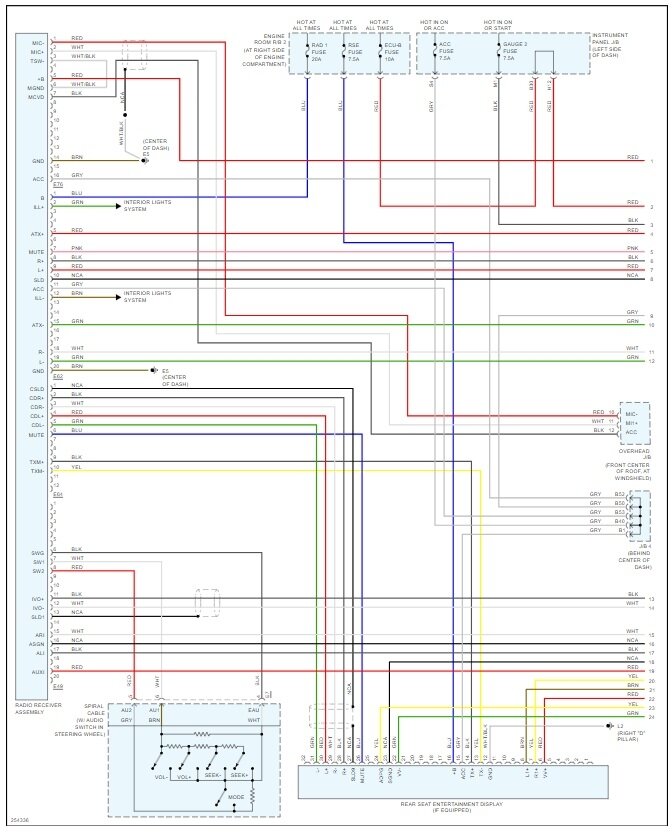

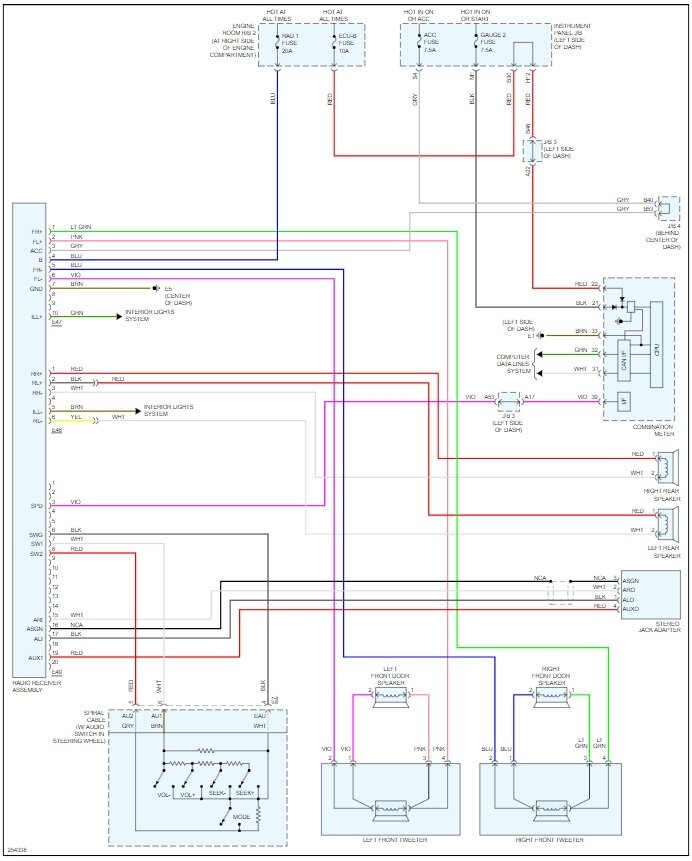

Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Oct 3, 2023 at 7:04 PM
