Headlight wiring diagram needed?

2004 FORD EXPEDITION

130,000 MILES • V8 • 2WD • AUTOMATIC

ZIKIE 7

MEMBER
1 POST
FOLLOW

Front passenger side low beam not working, replaced bulb. Still nothing checked fuse nothing. Rear passenger turn signal has no power to bulb. not sure if inline fuse or broken wire. low beam possible a motherboard inside light problem. i don't have a wiring schematic to go by. Need one.

Sep 9, 2022 at 12:59 PM

Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.

SQM

CAR REPAIR CONTRIBUTOR
6,383 POSTS

Hello,

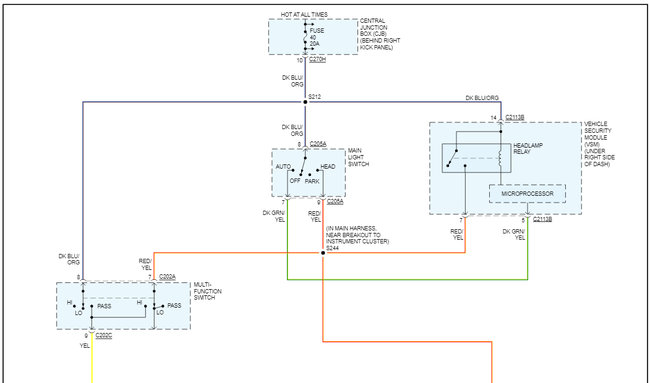

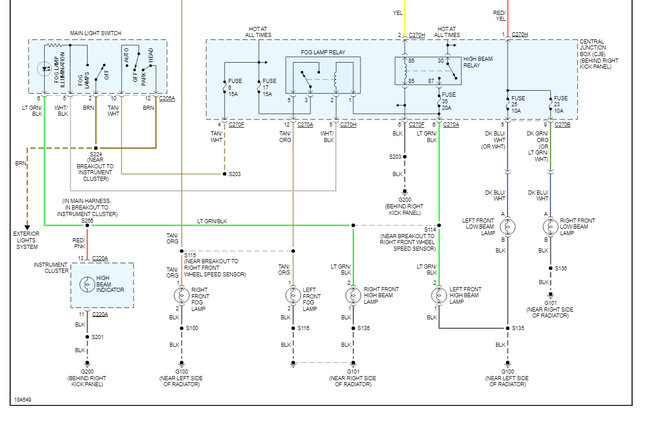

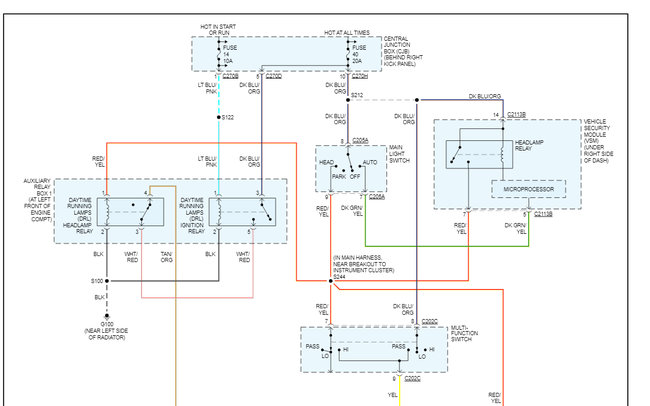

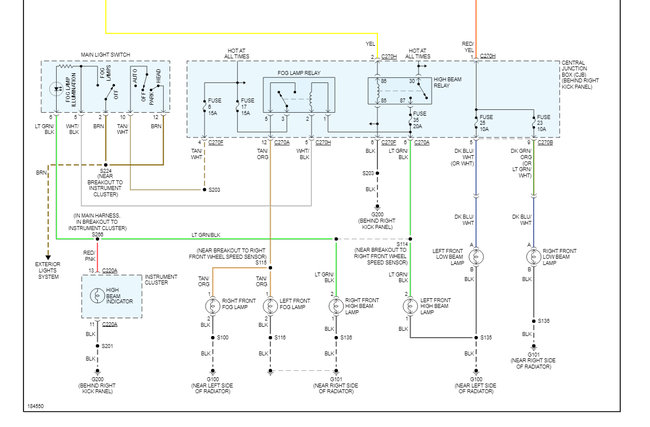

See attached for the wiring schematics. I have attached both with and without DRL schematics.

Here is a helpful guide on how to check wiring issues:

https://www.2carpros.com/articles/how-to-check-wiring

Let me know if you have any questions.
Thank you.
