Wire Diagram

2015 MAZDA 6
125,000 MILES • 2.5L • 4 CYL • 2WD • MANUAL
Avatar
BHAMDOC1973
  • MEMBER
  • 2,007 POSTS

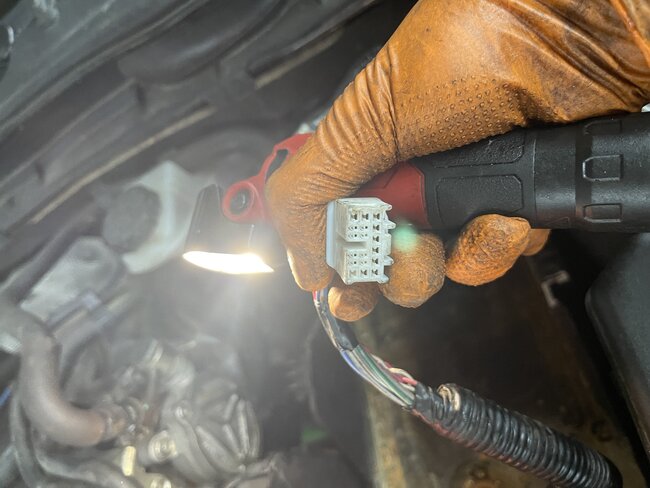

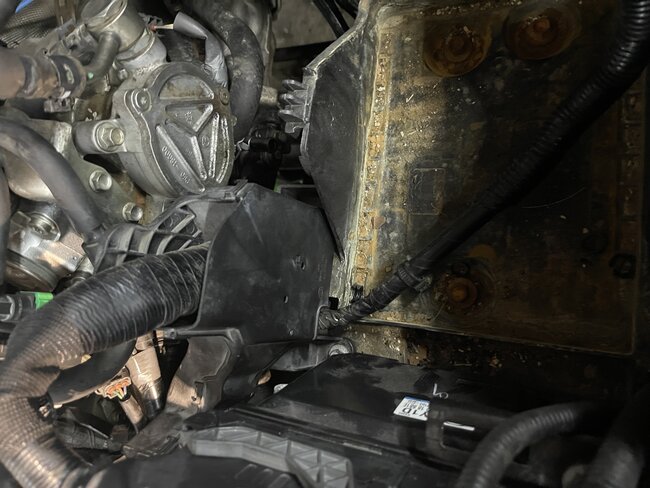

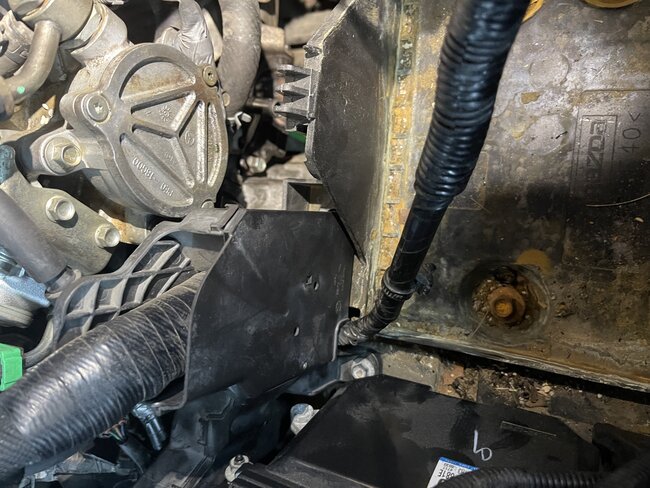

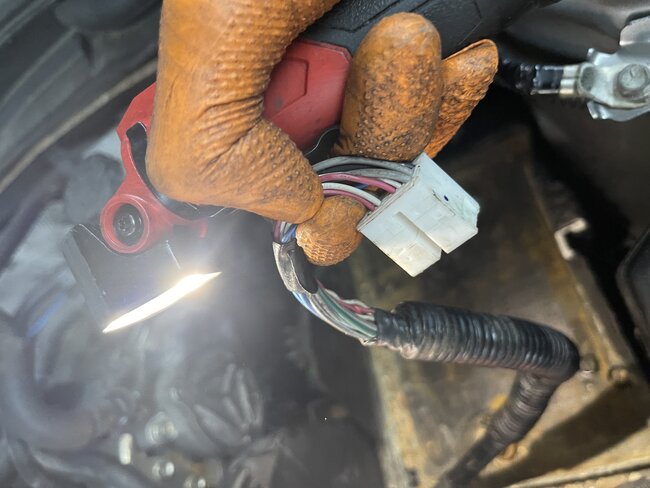

Then this wire splits from the main harness while the other part goes to the ECU. Can't figure out where it connects. It is very close to the battery tray.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Jun 6, 2023 at 11:53 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
We are going to need more information; do you see any place the wire could go if you move it around the length of the wire? They don't really show the connector locations like you are asking. Can you upload more images?
Jun 7, 2023 at 9:25 AM
Avatar
BHAMDOC1973
  • MEMBER
  • 2,007 POSTS
Found out, it goes inside the fuse box. Thanks
Jun 7, 2023 at 10:49 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
Thanks for letting us know, we are here to help, please use 2CarPros anytime.
