Wire connection

2007 GMC SIERRA
140,000 MILES • 5.3L • V8 • 4WD
Avatar
BTOLER
  • MEMBER
  • 29 POSTS

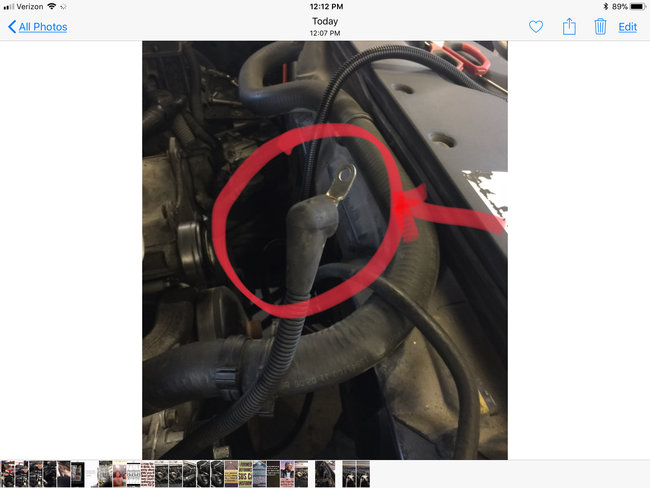

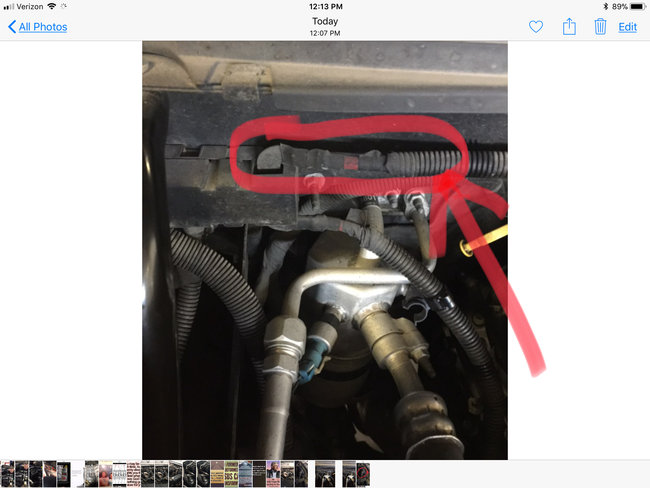

I did not take a pre picture of this before I took it off replacing my head gaskets. This is the only one I cannot remember where it goes. Could you help me, please? Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Mar 12, 2018 at 9:14 AM
Advertisement
Avatar
PATENTED_REPAIR_PRO
  • ✓ASE Certified Mechanic
  • 1,853 POSTS
  • ASE Certified Mechanic
Do you have anything plugged up to the alternator b+?

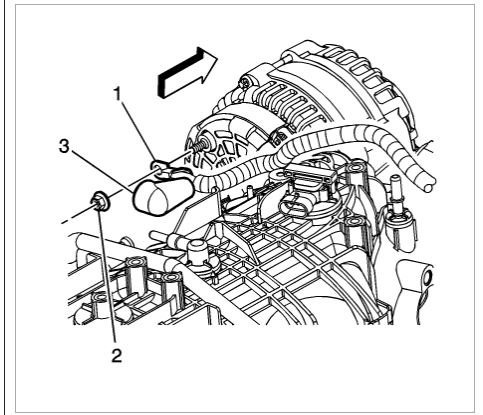

It looks like this.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Mar 12, 2018 at 9:39 AM
Avatar
BTOLER
  • MEMBER
  • 29 POSTS
I have a plug that goes on the alternator. Picture attached.
Image (Click to enlarge)
Attached Media
Mar 12, 2018 at 9:45 AM
Avatar
PATENTED_REPAIR_PRO
  • ✓ASE Certified Mechanic
  • 1,853 POSTS
  • ASE Certified Mechanic

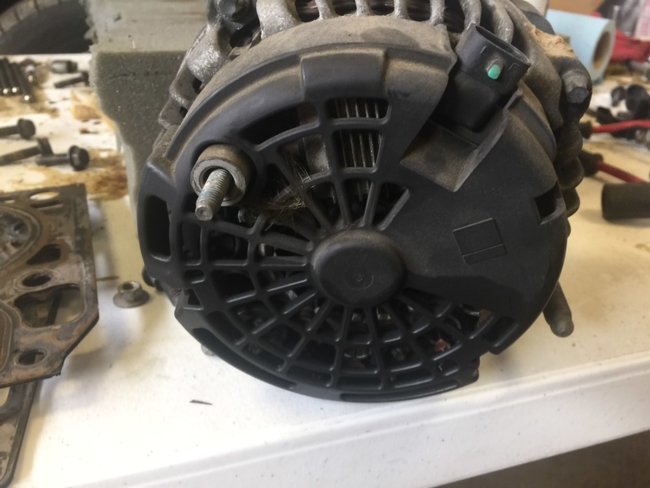

I think those are the field wires, is there anything hooked to the B+, Take a photo of the back of the alternator.
Mar 12, 2018 at 9:51 AM
Avatar
BTOLER
  • MEMBER
  • 29 POSTS

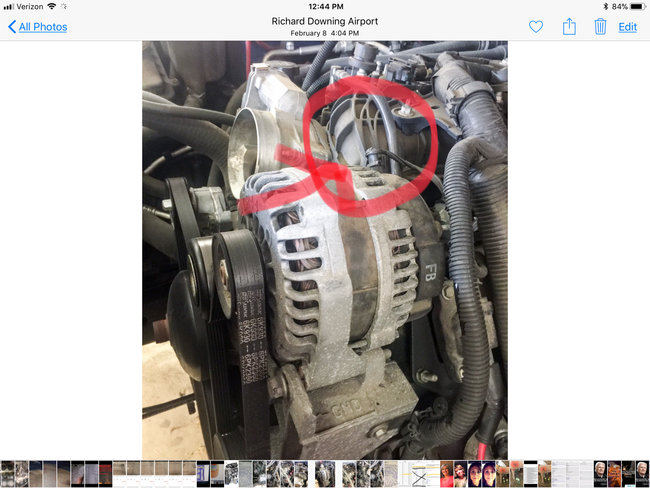

No Sir, that is where it goes. Thanks!
Image (Click to enlarge)
Attached Media
Mar 12, 2018 at 10:09 AM
Avatar
PATENTED_REPAIR_PRO
  • ✓ASE Certified Mechanic
  • 1,853 POSTS
  • ASE Certified Mechanic
It looks like you are also missing an insulator for that b+ stud because it cannot be allowed to contact that alternator casing.
