BCM wiring diagrams?

Tiny
JAIOBIBONN32
  • MEMBER
  • 2005 FORD TAURUS
  • 3.0L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 150,000 MILES
Almost all lights on dash are lighting up. Battery being drained to no power. My vehicle is the SE wagon.
Wednesday, November 21st, 2018 AT 3:00 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,643 POSTS
Hello,

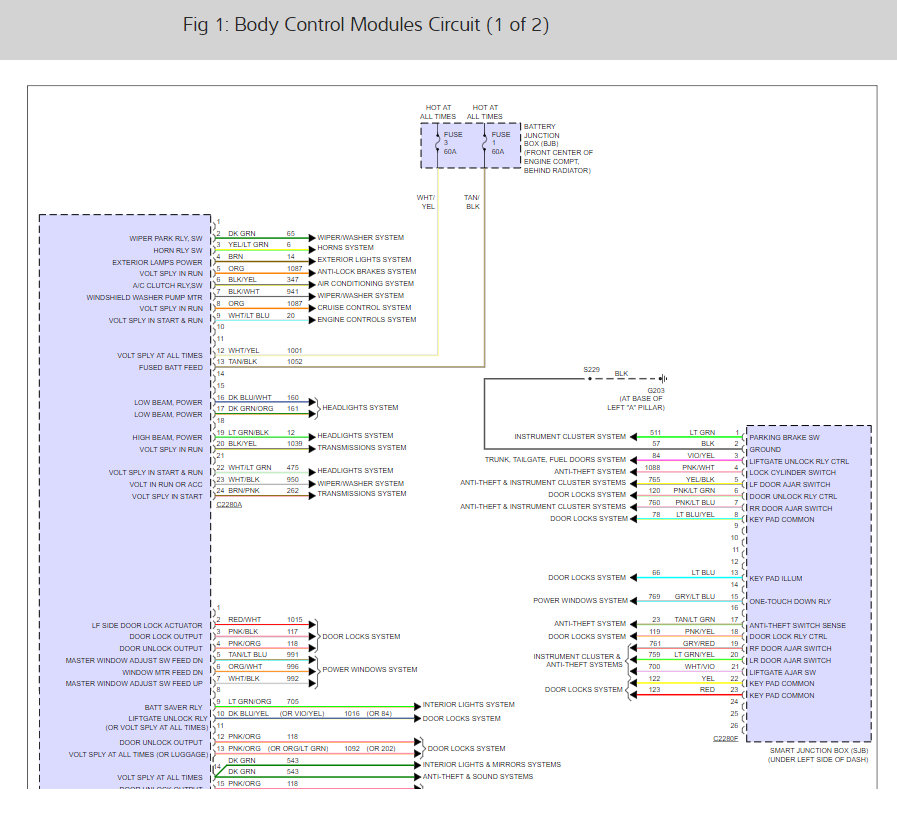

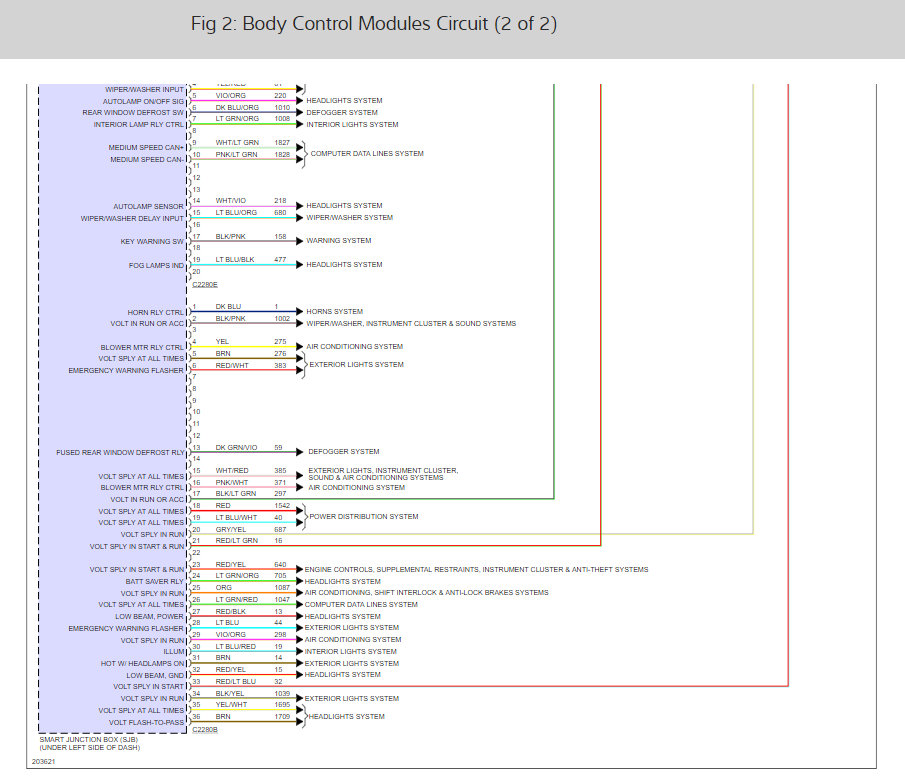

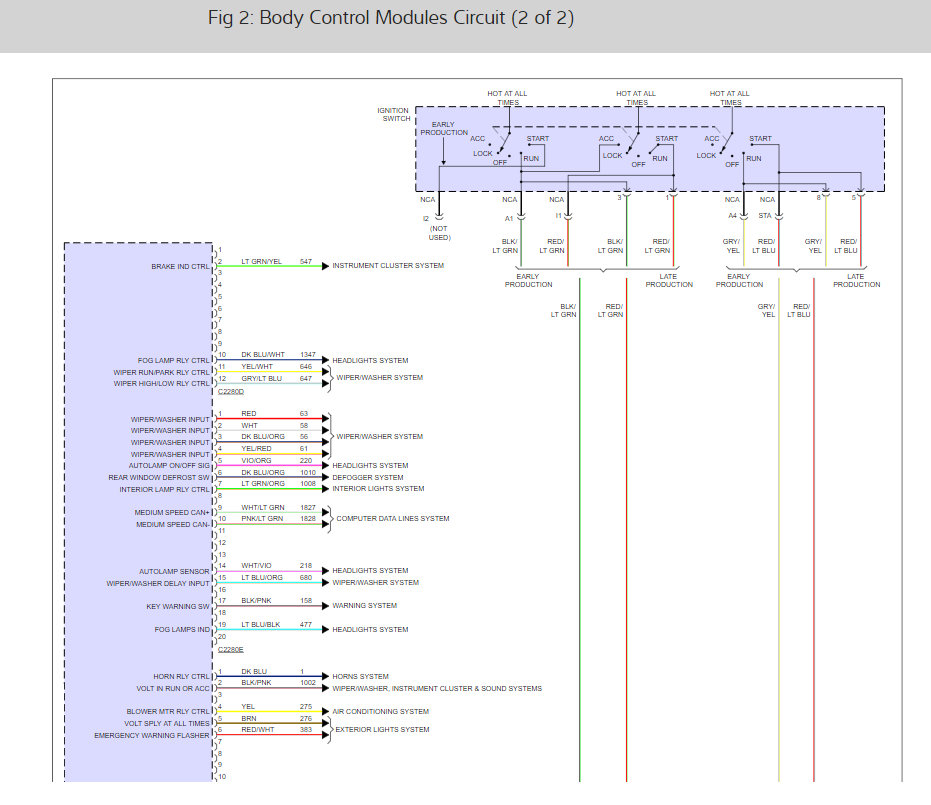

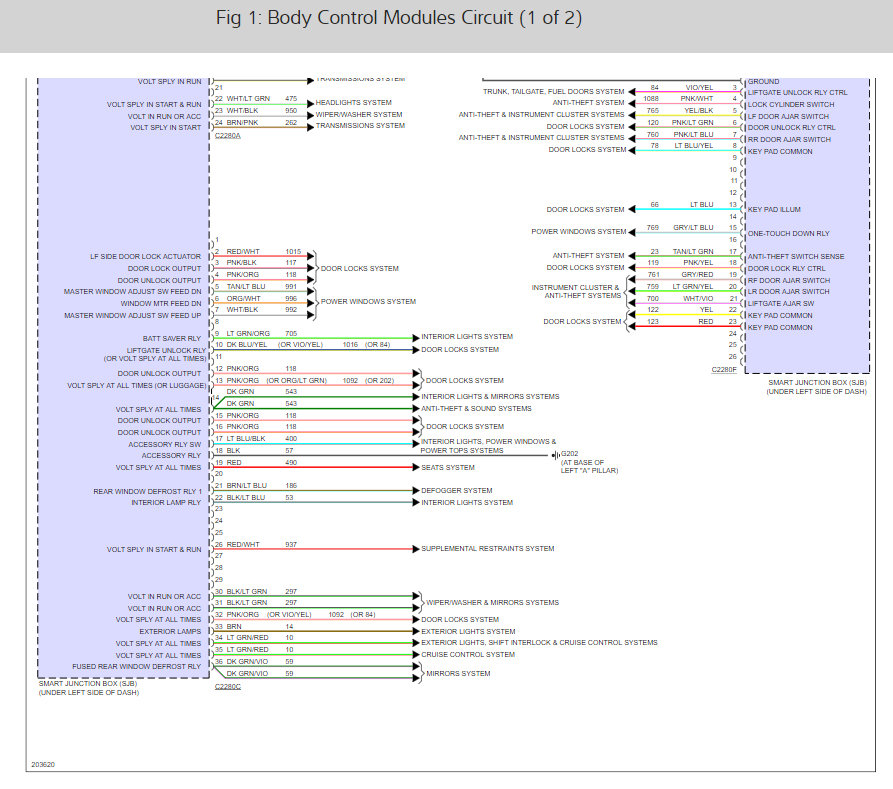

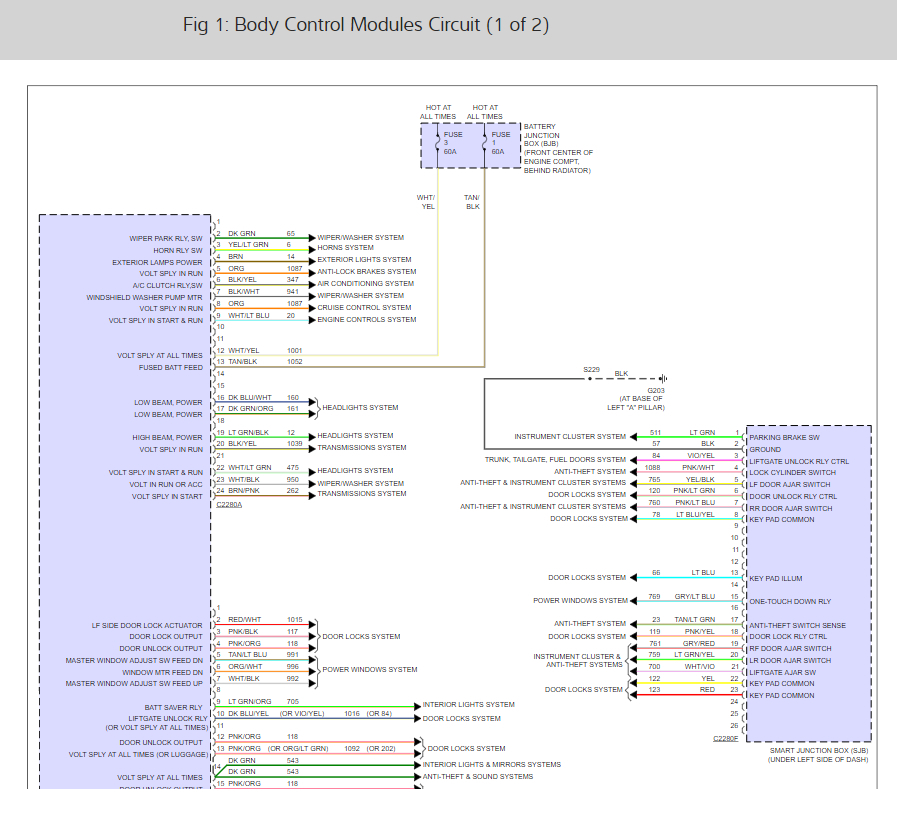

Here are the BCM wiring diagrams so you can see how the system works and what it controls. Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
