Serpentine Belt Diagram

Tiny
TWNCTY
  • MEMBER
  • 1999 VOLVO V70
  • 6 CYL
  • AWD
  • AUTOMATIC
  • 180,000 MILES
I need a diagram for the serpentine belt route?
Sunday, September 12th, 2010 AT 6:34 PM

1 Reply

Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS

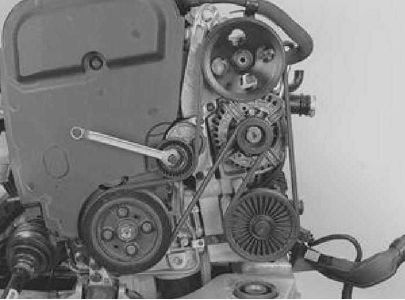

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.


https://www.2carpros.com/forum/automotive_pictures/12900_s_26.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+3
Sunday, September 12th, 2010 AT 7:34 PM
