1994 Volvo 940 relay

Tiny
CARLAH314
  • MEMBER
  • 1994 VOLVO 940
  • 4 CYL
  • AWD
  • AUTOMATIC
  • 13,600 MILES
Can you tell me where the relay switch for the air conditioning is located? If it's behind the ashtray can you tell me the number?
Sunday, March 29th, 2009 AT 12:32 AM

1 Reply

Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS
Fuse# 16, 30 amp, green if mini!
FUSE PANEL IDENTIFICATION (1993-95) Fig. 3: Fuse Panel Identification (1993-95) Courtesy of VOLVO CARS OF NORTH AMERICA. à   1 - 25 Amp Main Fuel Pump, Engine Control System, Ignition System Heated Oxygen Sensor Heating (B230F-T ) à   2 - 25 Amp Hazard Warning Lights, Headlight Flash, Central Locking à   3 - 30 Amp Power Seats, Trailer à   4 - 15 Amp Brake Lights, Shift Lock à   5 - 15 Amp Glove Compartment Light, Clock, Radio, Interior Light, Trunk Light, Door Open Warning Light, Power Antenna, Vanity Mirror, Alarm, CD Changer à   6 - 30 Amp ECC, Blower - Climate control unit à   7 - 15 Amp Front Fog Lamps à   8 - 30 Amp Power Windows à   9 - 15 Amp Key Reminder, Seat Belt Reminder, Manual Climate Control MCC Warning Light (Seat Belt), Turn Signals, Heated Front Seats, Power Windows, Shift-Lock, Trailer à   10 - 30 Amp Heated Rear Window, Power Sun Roof, Heated Power Mirrors à   11 - 15 Amp Fuel Tank Pump, Heated Oxygen Sensor à   12 - 15 Amp Back-Up Lamps, Cruise Control, Bulb Failure Warning Light, Alarm, Disengagement Of 4th Gear (Automatic Transmission) à   13 - 15 Amp Pulsair - Magnet Valve (If Equipped) à   14 - 15 Amp Power Mirrors, Cigarette Lighter, Radio, Rear Wiper (Wagon), Ambient Temperature Sensor à   15 - 25 Amp Horn, Windshield Wiper/Washer, Power Seats à   16 - 30 Amp Heater Blower, A/C, ECC Control Module, ECC Solenoids à   17 - 15 Amp Left Headlight (High Beam), High Beam Indicator Light à   18 - 15 Amp Right Headlight (High Beam) à   19 - 15 Amp Left Headlight (Low Beam), Foglight Relay à   20 - 15 Amp Right Headlight (Low Beam) à   21 - 15 Amp Left Parking Lights (Front & Rear), License Plate Light, Ash Tray Lighting, Heater Control Panel Lighting, Heated Rear Window & Sunroof Switch Lighting, Left Instrument Panel Lighting, Radio Lighting, Ambient Temperature Sensor à   22 - 15 Amp Seat Belt Light, Right Parking Lights (Front & Rear), Center Console Compartment Light, Foglight Relay, Heated Seat Switch Light, Gear Selector Panel Lighting, Rear Ash Tray Light à   23 - 25 Amp Heated Front Seats à   24 - Spare (1993) à   24 - 25 Amp (1994-95) ABS NOTE: On 1993 vehicles equipped with Anti-Lock Brakes (ABS), the system is protected by an additional 10 Amp fuse located under the instrument panel to the left of the steering wheel. Page 1 of 2 FUSES & CIRCUIT BREAKERS -1994 Volvo 940 3/29/2009 25 - 25 Amp Rear Foglight à   26 - 15 Amp Radio, Amplifier

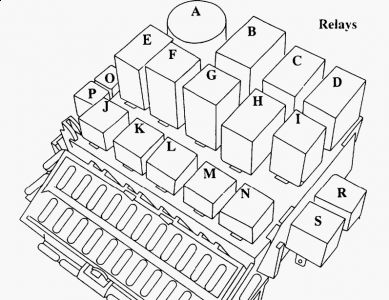

https://www.2carpros.com/forum/automotive_pictures/62217_volvoa_1.jpg

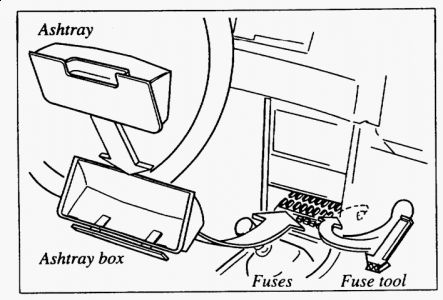

https://www.2carpros.com/forum/automotive_pictures/62217_volvob_1.jpg

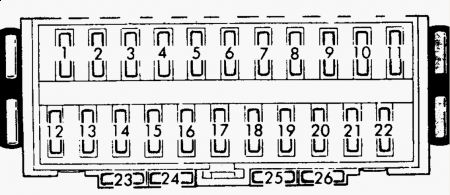

https://www.2carpros.com/forum/automotive_pictures/62217_vovloc_1.jpg


If it's a fan motor problem, dont forget the resistor.

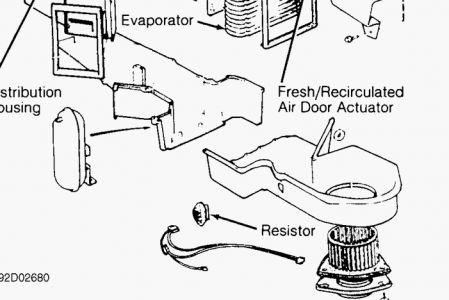

https://www.2carpros.com/forum/automotive_pictures/62217_volvod_1.jpg
