fuse box pictures or diagram

1991 VOLKSWAGEN PASSAT
Avatar
LA GANZA
  • MEMBER
  • 44 POSTS
I need pictures or diagram of fuse box 5 speed thanks
Jan 26, 2009 at 11:17 PM
Advertisement
Avatar
BLUELIGHTNIN6
  • ✓ASE Certified Mechanic
  • 16,542 POSTS
  • ASE Certified Mechanic


https://images.2carpros.com/forum/automotive_pictures/261618_Noname_192.jpg

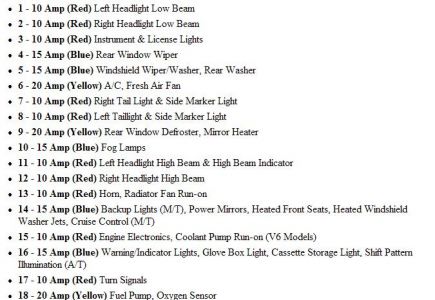

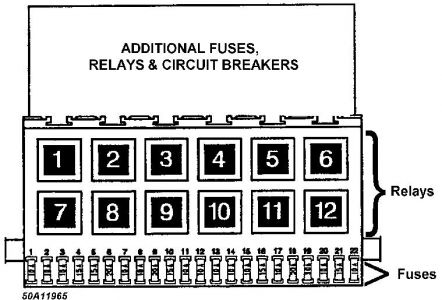

FUSES IDENTIFICATION


https://images.2carpros.com/forum/automotive_pictures/261618_Noname2_61.jpg


https://images.2carpros.com/forum/automotive_pictures/261618_Noname3_35.jpg

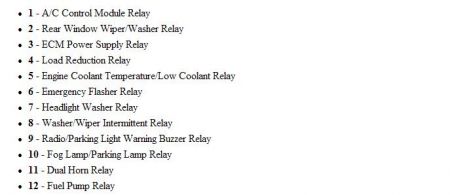

RELAYS IDENTIFICATION


https://images.2carpros.com/forum/automotive_pictures/261618_Noname4_20.jpg

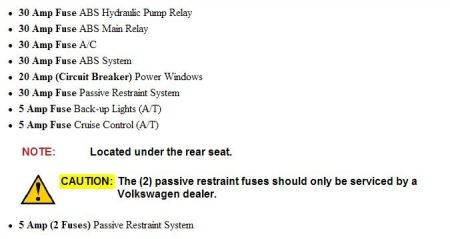

ADDITIONAL FUSES/RELAYS/CIRCUIT BREAKERS IDENTIFICATION


https://images.2carpros.com/forum/automotive_pictures/261618_Noname5_11.jpg
