Vacuum routing diagram

1987 NISSAN MAXIMA
400,000 MILES • 3.0L • 6 CYL • 2WD • MANUAL
Avatar
KAINESTER11
  • MEMBER
  • 3 POSTS
I am in need of a complete vacuum routing diagram. recently had the cylinder heads done but now that I got it back together realized all the vacuum hose were are missing, in the wrong places or just no good. I cannot seem to find a routing diagram anywhere even bought the repair manual and it was a waste of money. please help. thank you for your time.
Sep 23, 2016 at 9:20 PM
Advertisement
Avatar
HMAC300
  • ✓Experienced Mechanic
  • 48,601 POSTS

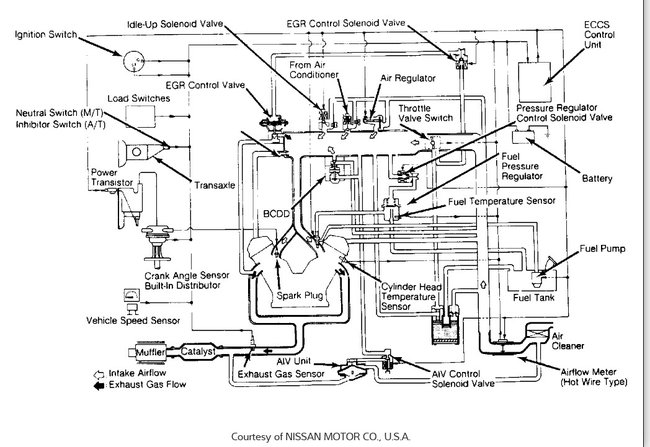

Here is the engine vacuum diagram you requested, let us know if you need anything else.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Sep 24, 2016 at 12:25 AM
Avatar
KAINESTER11
  • MEMBER
  • 3 POSTS
Not following that diagram so well not making any since
Sep 24, 2016 at 8:39 PM
Avatar
HMAC300
  • ✓Experienced Mechanic
  • 48,601 POSTS
this is all we get in manuals the double lines are the vacuum lines if you know the parts on the car you'll be able to follow it as they are listed which gets what on vacuum
Sep 25, 2016 at 1:00 AM
Avatar
KAINESTER11
  • MEMBER
  • 3 POSTS
K thanks
Sep 25, 2016 at 8:07 AM
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,051 POSTS
Please let us know what you find so it will help others.

Best, Ken
Sep 29, 2016 at 2:47 AM
