Vacuum lines from air pump to EGR PCV vacuum Solenoid diagram needed?

2001 CHEVROLET BLAZER
160,000 MILES • 4.3L • 6 CYL • 4WD • AUTOMATIC
Avatar
STEPHEN ACUNA
  • MEMBER
  • 1 POST
VIN-w, 4.3L V6, Central port fuel injection(cpi). I am looking for the correct vacuum diagram coming from air pump to Air vacuum controls Illinois to air shut off valve to air check valves.

VIN-w, 4.3L V6.
Oct 24, 2022 at 1:12 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Hi,

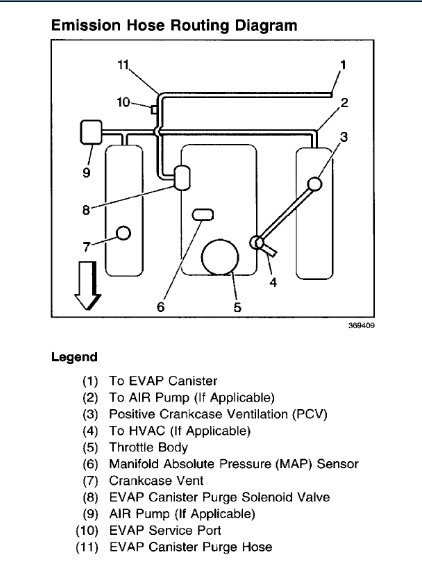

I went through two different manuals and only found one pic. I attached it below. Take a look at it and let me know if that is what you need.

I hope it helps.

Take care,

Joe

See pic below.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
