Vacuum lines diagram needed?

1996 CHEVROLET S-10
200,000 MILES • 2.2L • 4 CYL • 2WD • MANUAL
Avatar
DMANNIN25
  • MEMBER
  • 1 POST
I have a few vacuum lines I can't seem to locate. I am putting back a truck that was taken apart by someone else. And I can't locate the remaining few that I have and for some reason I can't find anything for this specific year.
Sep 9, 2023 at 2:57 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,240 POSTS
Hi,

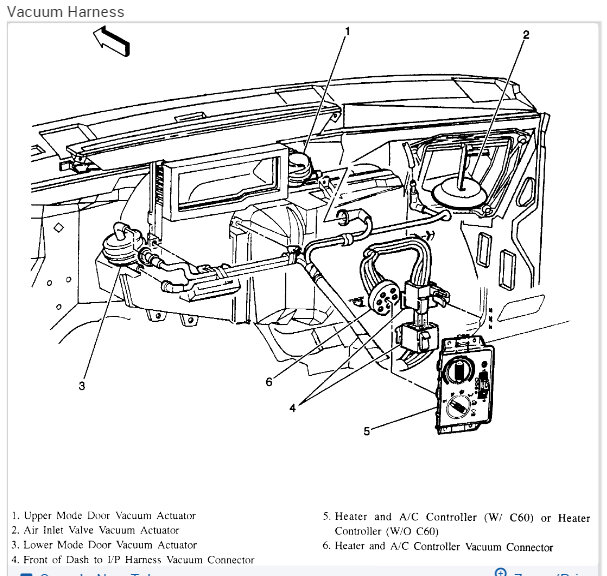

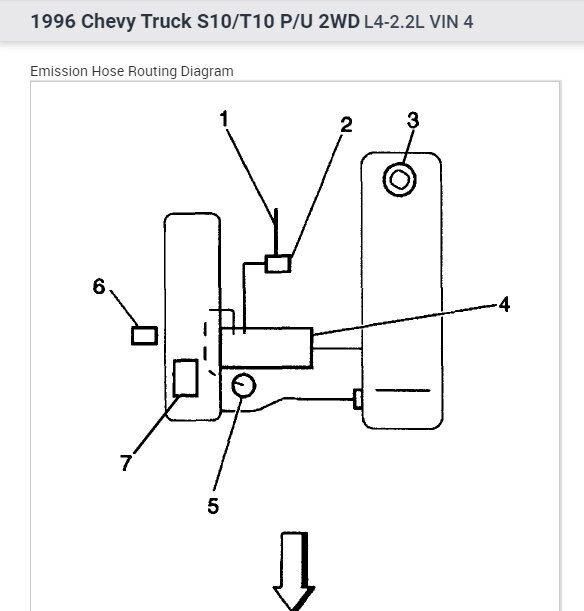

It sounds like you're busy. LOL As far as the vacuum schematics, I attached two below. One is for the HVAC system. The other is for the engine/emissions.

Take a look through the schematics and let me know if they help or if there is something specific you need.

Take care,

Joe

See pics below.
