I need a vacuum line diagram for 454ci motor. Calif.emissions.chev.C20.
Apr 30, 2024 at 12:07 PM
Engine vacuum lines diagram needed?
1977 CHEVROLET SILVERADO
DISCO LARRY2
- MEMBER
- 1 POST
Advertisement
Hi,

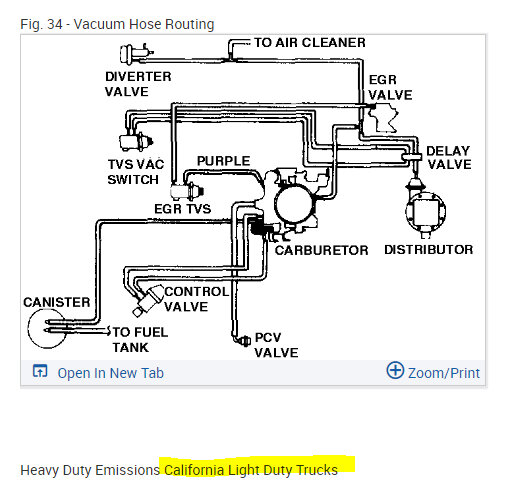

Because of the model year, my manuals are somewhat limited. However, I did find a vacuum schematic for a CA emissions specific to your vehicle.
Take a look at the schematic and let me know if it helps. Also, if you are trying to find a leak, here is a link you may find helpful:
https://www.2carpros.com/articles/how-to-use-an-engine-vacuum-gauge
Let me know.
Take care,
Joe
See pic below.
Because of the model year, my manuals are somewhat limited. However, I did find a vacuum schematic for a CA emissions specific to your vehicle.
Take a look at the schematic and let me know if it helps. Also, if you are trying to find a leak, here is a link you may find helpful:
https://www.2carpros.com/articles/how-to-use-an-engine-vacuum-gauge
Let me know.
Take care,
Joe
See pic below.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
