Vacuum line diagrams

2003 MERCURY SABLE
145,000 MILES • 3.0L • 6 CYL • 2WD • AUTOMATIC
Avatar
TERRYFORD
  • MEMBER
  • 7 POSTS
Took off fuel rail sensor confused about where the vacuum line comes from and goes to. Also, I have a red and yellow small plastic tube where do they hook up to? They are attached to intake manifold where do they go? Where does the vacuum line from the EGR valve come from? Thank you
Mar 8, 2022 at 11:10 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,579 POSTS
Hello,

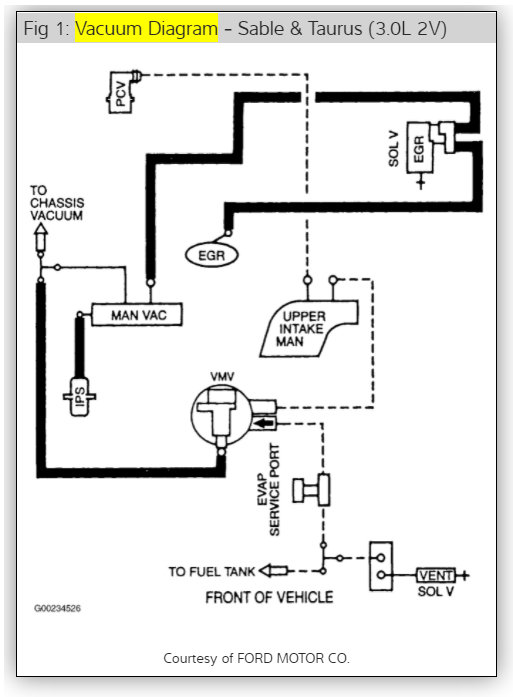

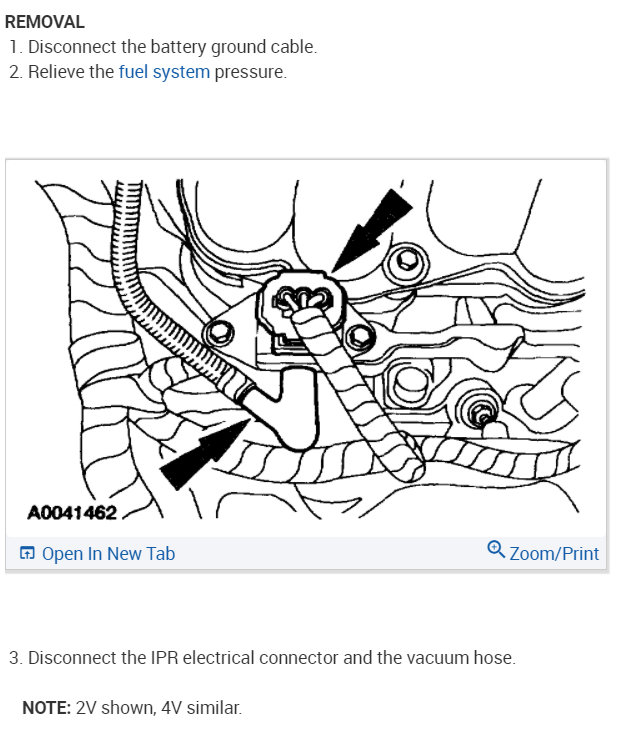

Here is the vacuum line diagrams for your car, check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem..........................
Images (Click to enlarge)
Attached Media
Attached Media
Mar 9, 2022 at 3:40 AM
