Vacuum line diagram needed?

1997 GMC SIERRA
120,000 MILES • 5.7L • V8 • 2WD • AUTOMATIC
Avatar
JERRY SCHLAGER
  • MEMBER
  • 2 POSTS
I need a vacuum diagram for the vehicle listed above 1500 5.7 vortec.
Oct 25, 2024 at 12:21 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic

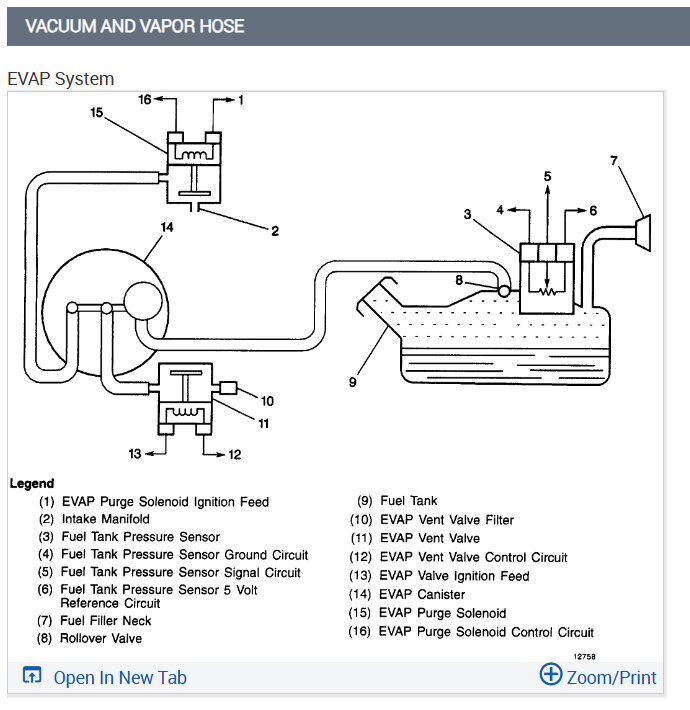

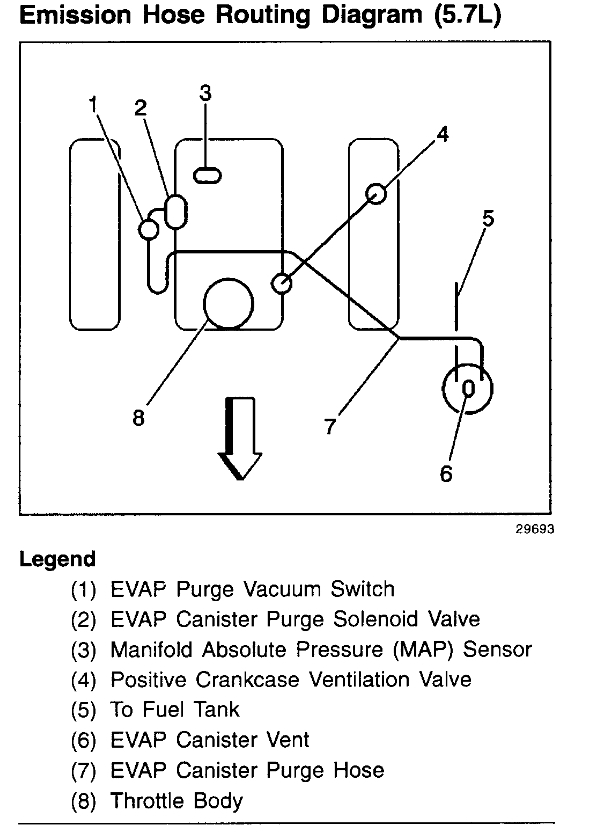

Sure, here are the engine and emission system vacuum line diagrams. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Oct 25, 2024 at 5:51 PM
Avatar
JERRY SCHLAGER
  • MEMBER
  • 2 POSTS
Sorry it took so long to respond. I don't know if that's right or not. I'll send pictures in the morning.
Oct 28, 2024 at 5:08 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic
Sounds good, have a good week!
