Can I get the vacuum lines diagram?

1996 FORD F-150
180,000 MILES • 5.0L • V8 • 2WD • AUTOMATIC
Avatar
FORDSMB454
  • MEMBER
  • 42 POSTS
i have the truck listed above stock i want to change out the vacuum line's is there a diagram anywhere? i see the one under the hood but I'm just a little confused I'm unsure how to read it. It is color coded but the issue for me is some things have splits and so on. thanks, take care.
Jul 20, 2024 at 5:24 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,238 POSTS

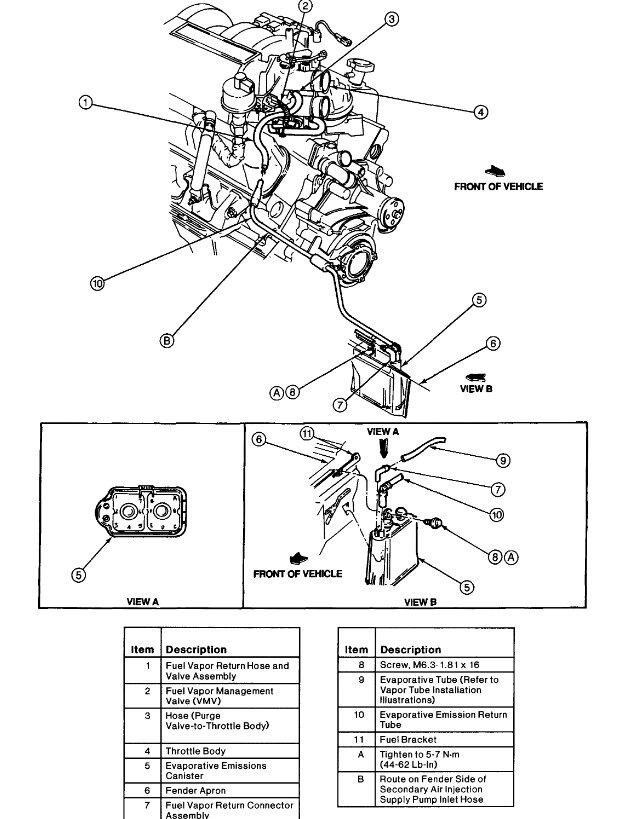

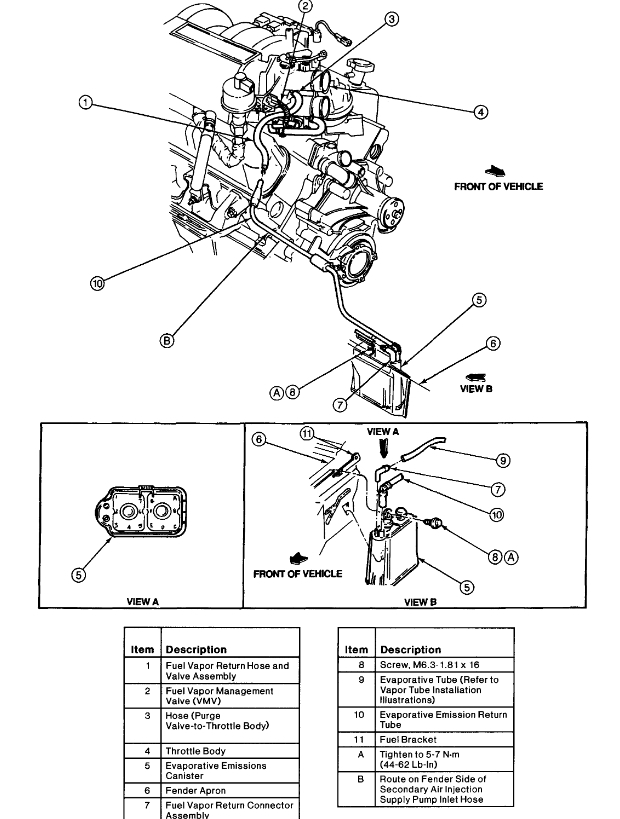

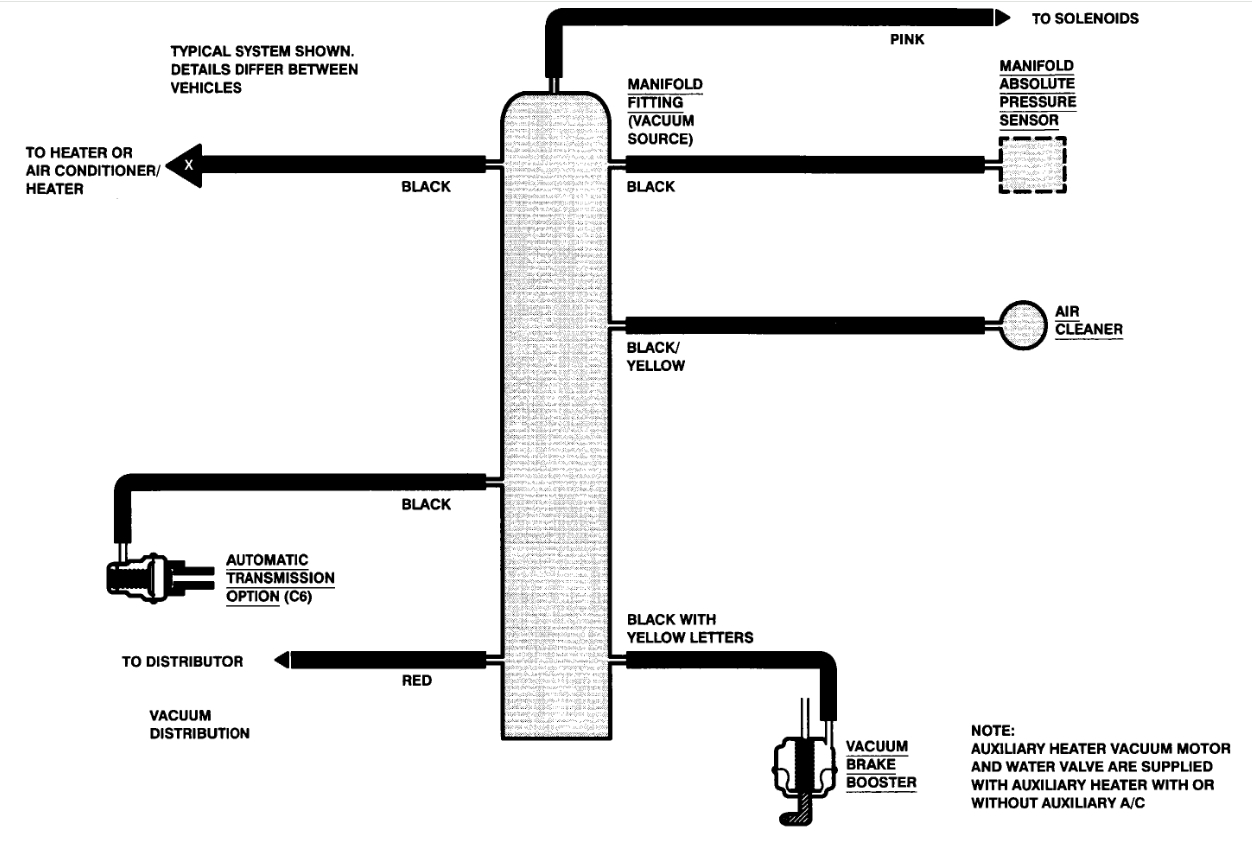

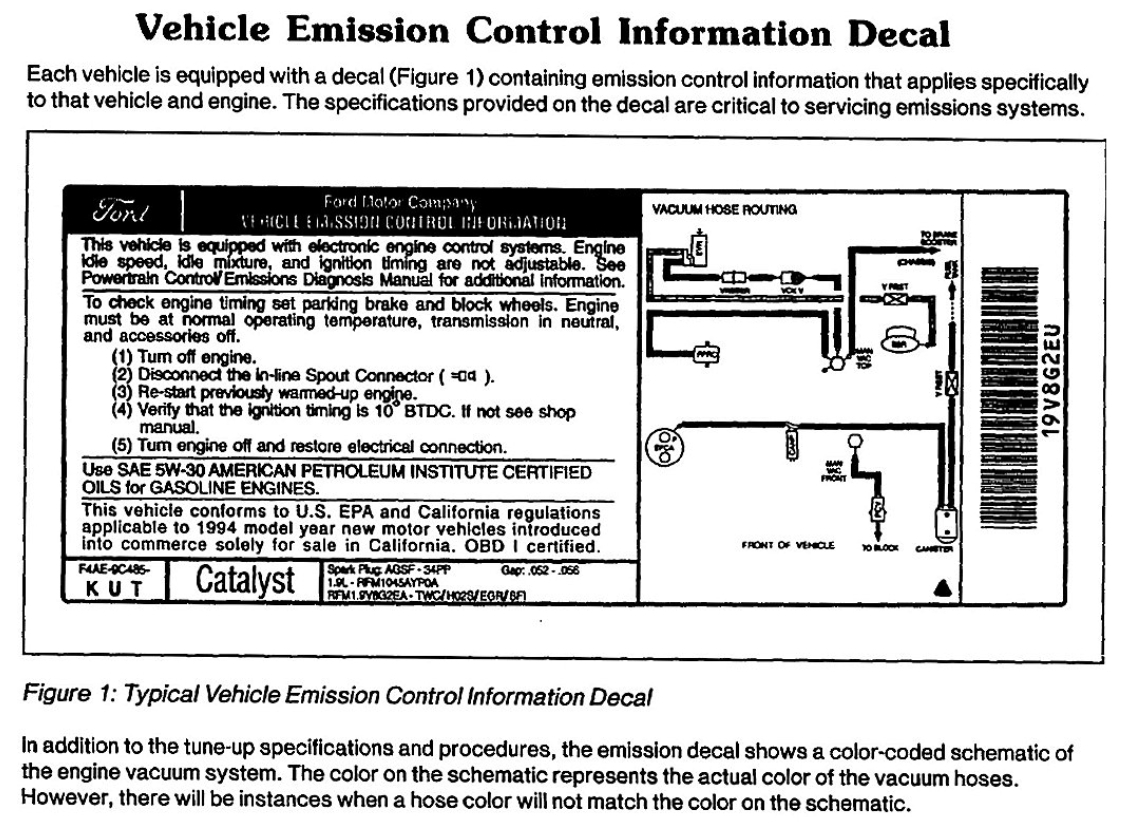

Sure, here are the engine vacuum line diagrams as you have requested. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jul 20, 2024 at 10:51 AM
