Vacuum hoses and routing diagram needed

2000 MAZDA PROTEGE
166,000 MILES
Avatar
ANDRE BATTIS
  • MEMBER
  • 16 POSTS
Can someone send me a clear diagram of the vacuum routing?
Jul 5, 2021 at 10:41 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
SQM
  • CAR REPAIR CONTRIBUTOR
  • 6,383 POSTS
Hello,

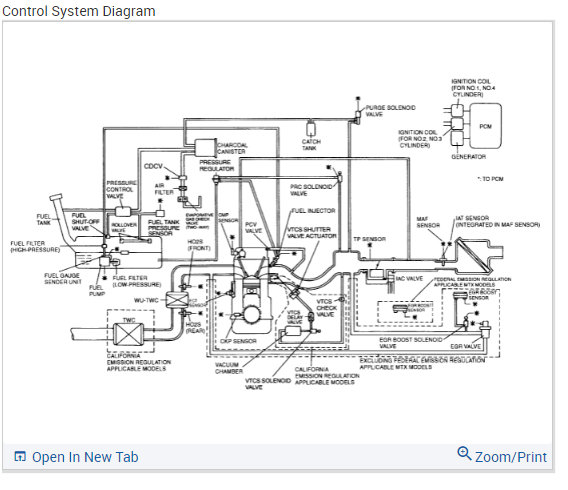

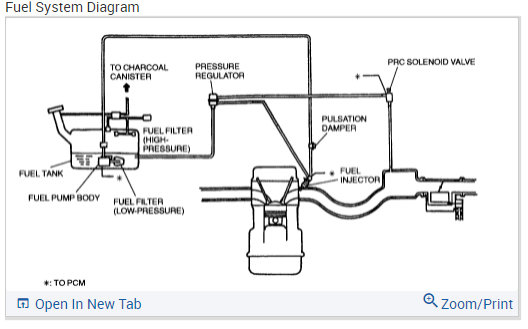

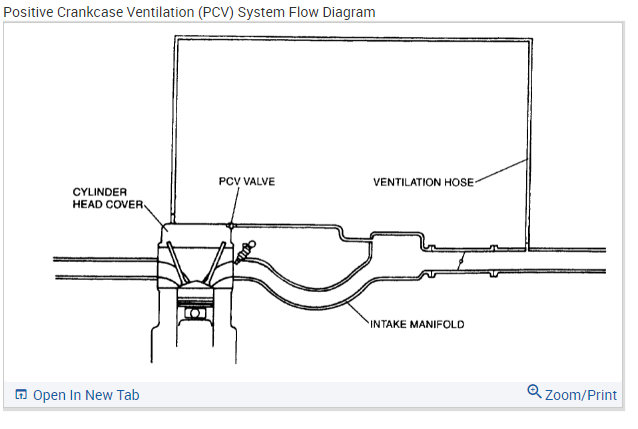

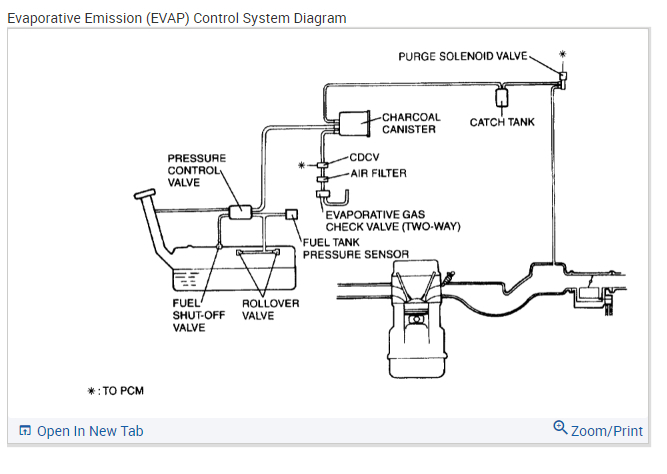

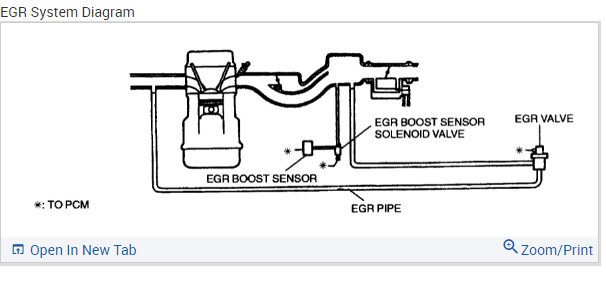

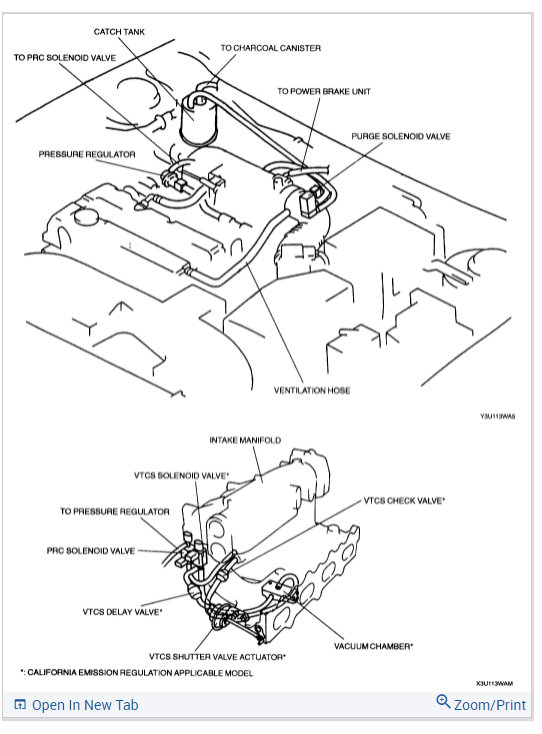

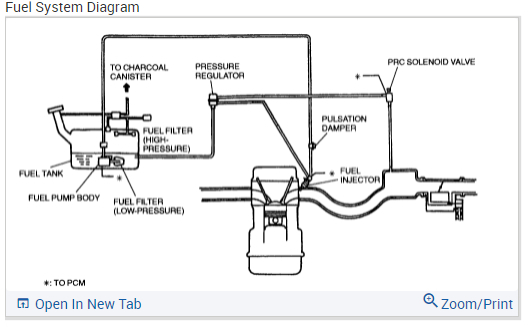

Please attached for various vacuum diagrams.
Let me know if you have any questions.

Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
