Vacuum hoses diagram needed

2001 CHEVROLET LUMINA
99,000 MILES • 3.1L • V6 • 2WD • AUTOMATIC
Avatar
RKAUPP95
  • MEMBER
  • 2 POSTS

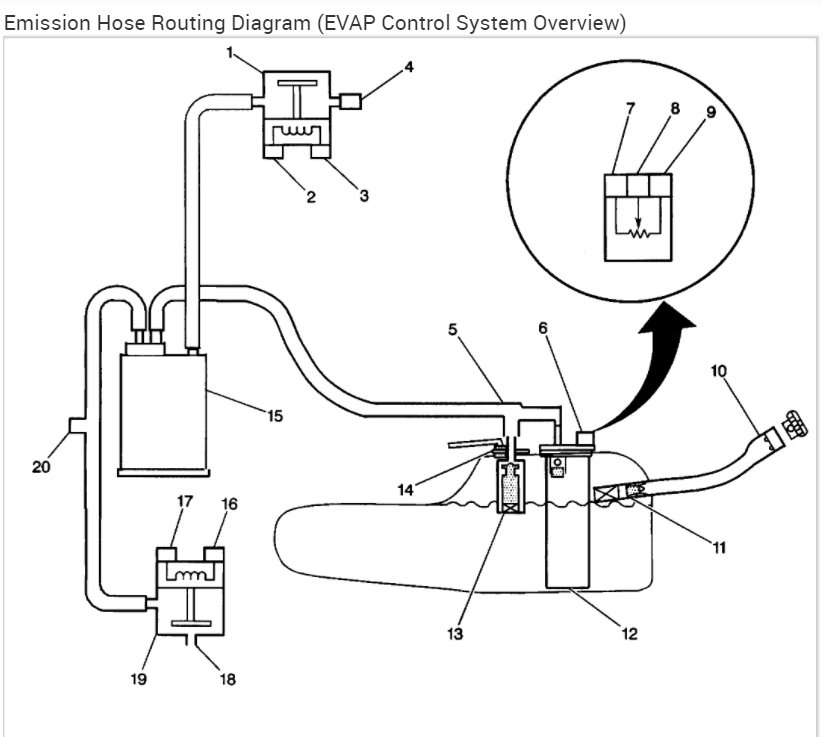

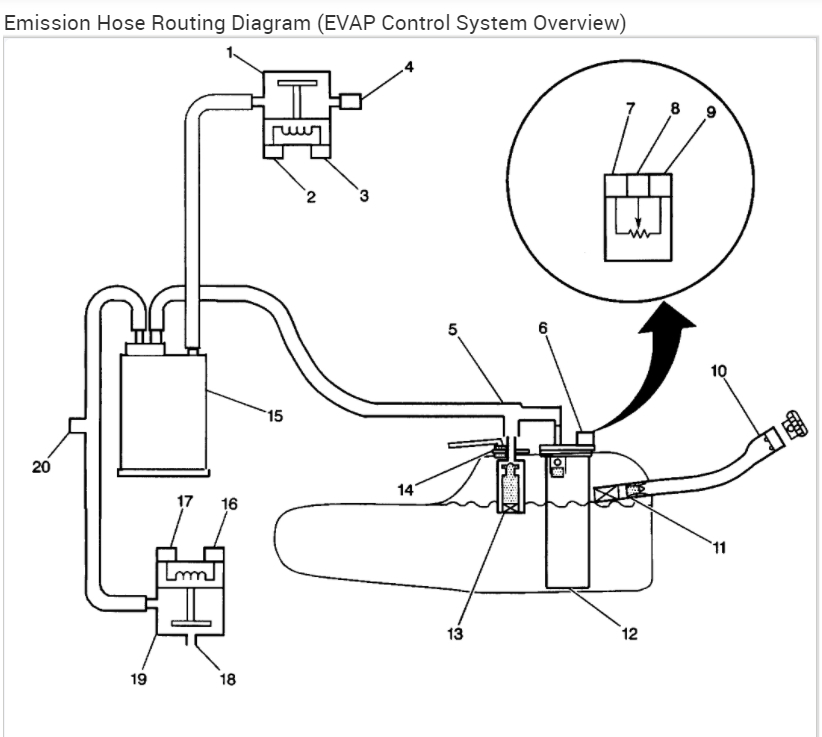

Diagram of hose routing for lines at fuel tank to rear vapor canister.
Nov 18, 2021 at 6:51 AM
Avatar
AL514
  • ✓Experienced Mechanic
  • 5,683 POSTS

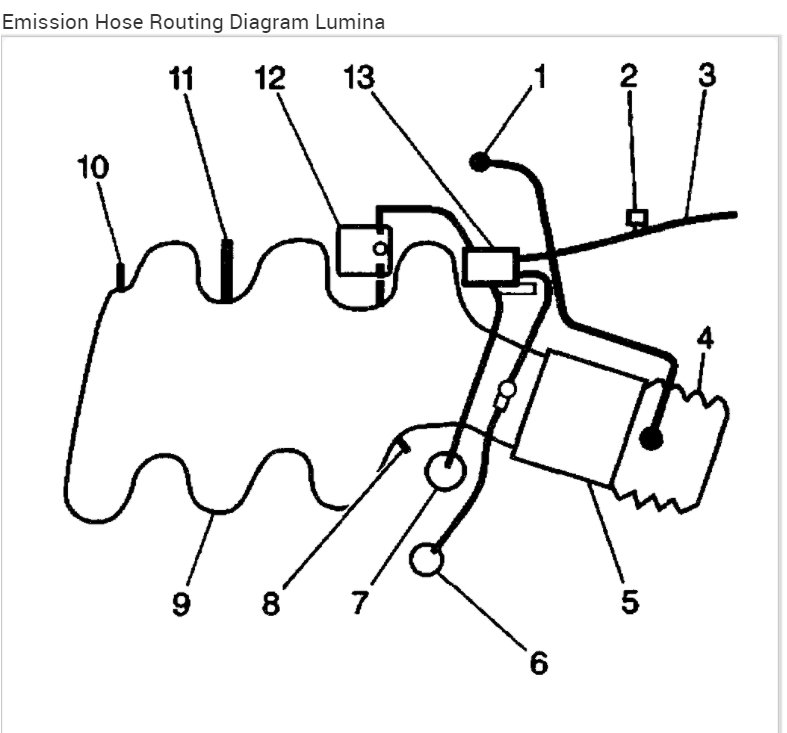

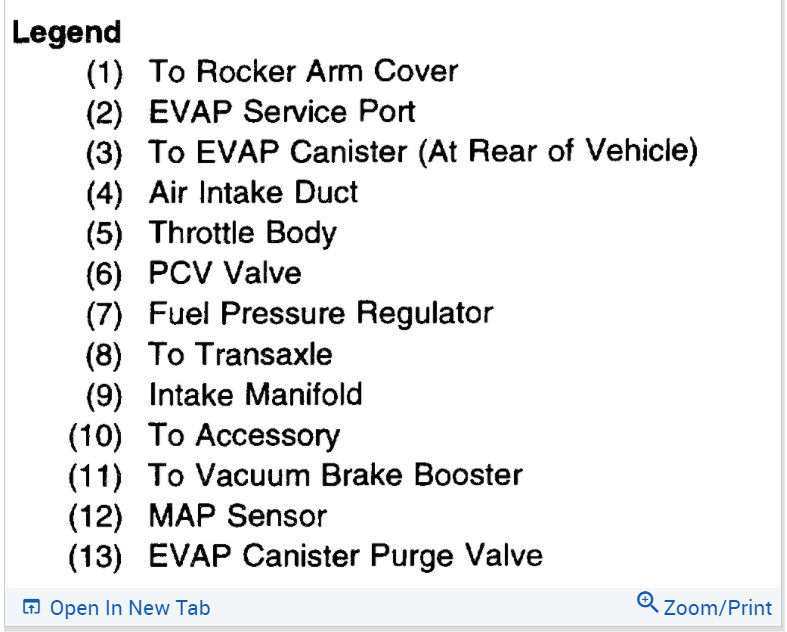

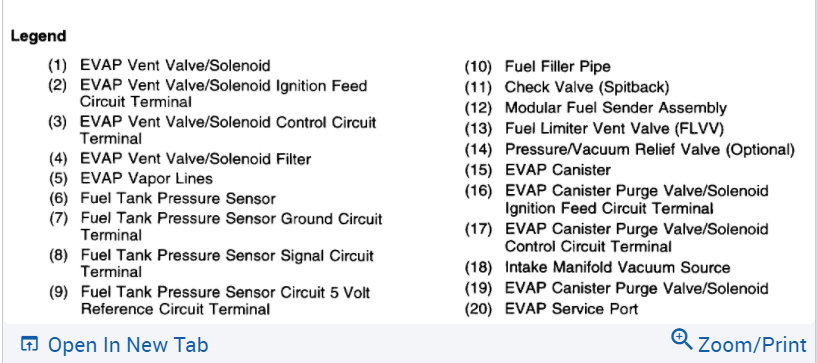

Hello, here are the diagrams for the Evap at the gas tank and the one for the Intake Manifold. Are you getting a leak code? Is the check engine light on?


https://www.2carpros.com/articles/evap-system-code-repair

https://www.2carpros.com/articles/how-emission-control-systems-work
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
