Vacuum hose problem

1991 MAZDA PROTEGE
99,000 MILES • 1.8L • 4 CYL • 2WD • AUTOMATIC
Avatar
RDHII
  • MEMBER
  • 1 POST
Some of the vacuum hoses were cut and some missing. Does any one know where I can find a diagram?
Jan 10, 2017 at 3:14 PM
Advertisement
Avatar
CARADIODOC
  • CAR REPAIR CONTRIBUTOR
  • 34,309 POSTS
That is shown on the vacuum hose routing diagram on the emissions sticker under the hood.
Jan 10, 2017 at 3:25 PM
Avatar
STEVE W.
  • CAR REPAIR CONTRIBUTOR
  • 15,160 POSTS

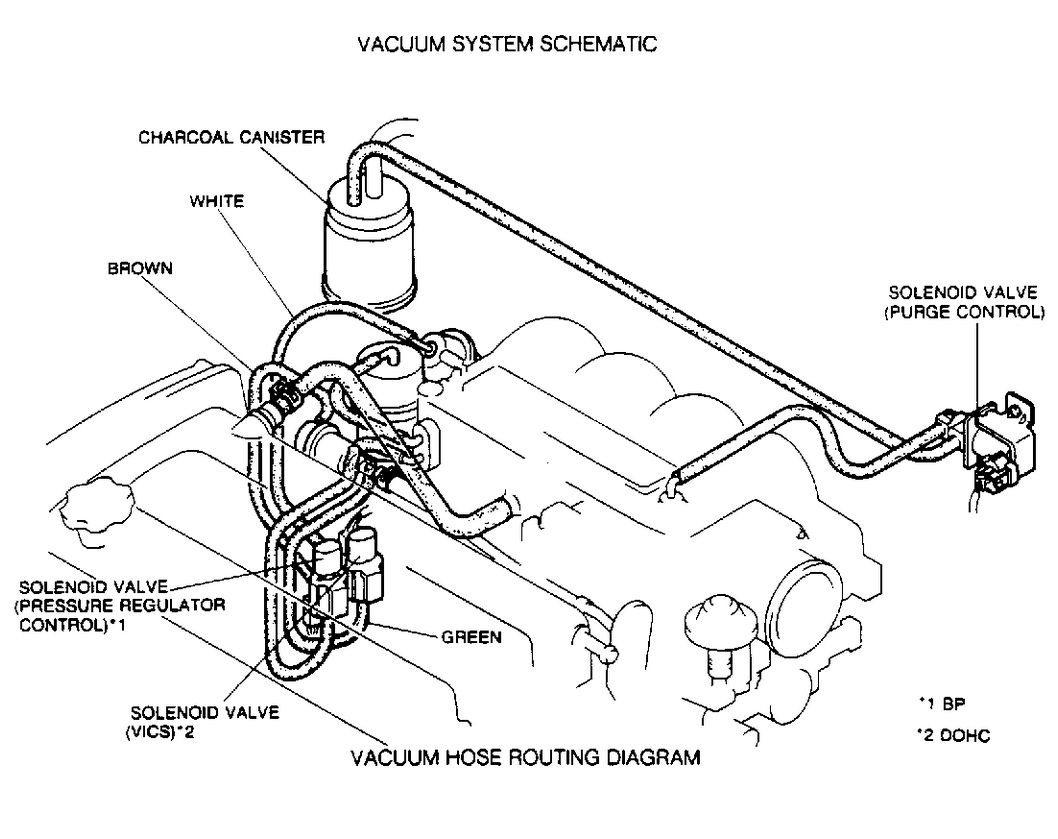

Try this.
