Vacuum hose layout?

1996 DODGE RAM
150,000 MILES • 5.9L • 4WD • AUTOMATIC
Avatar
RAFAEL BAUTISTA
  • MEMBER
  • 1 POST

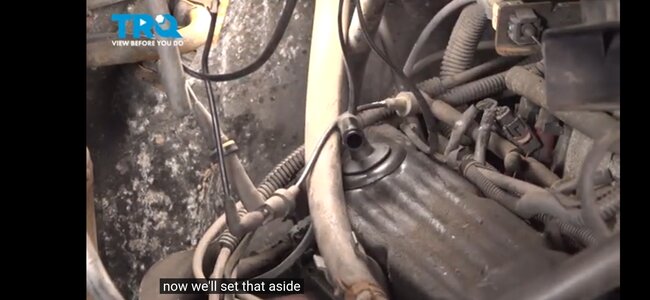

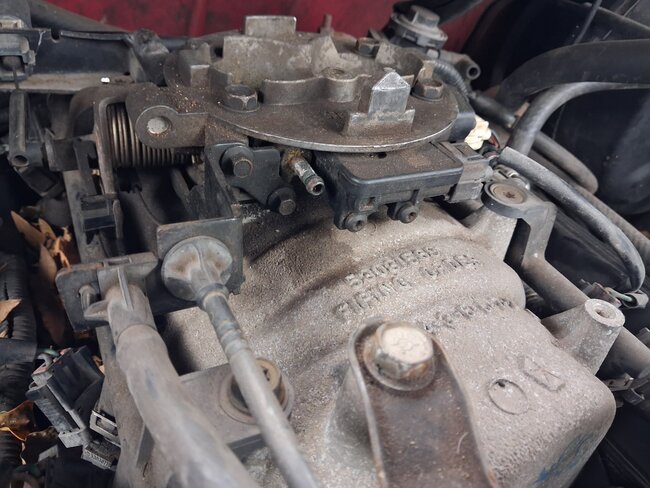

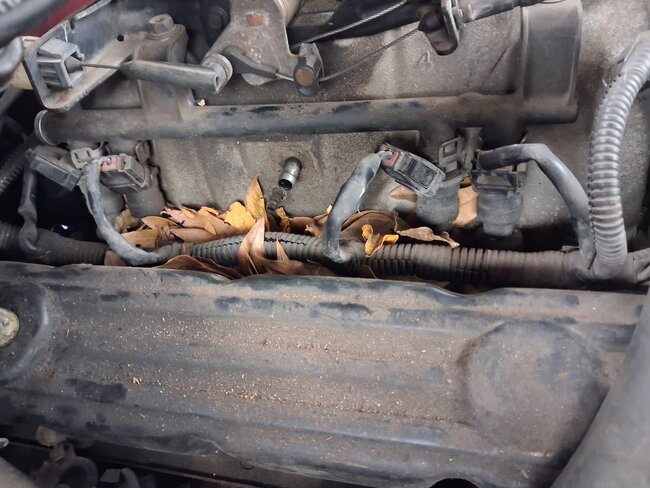

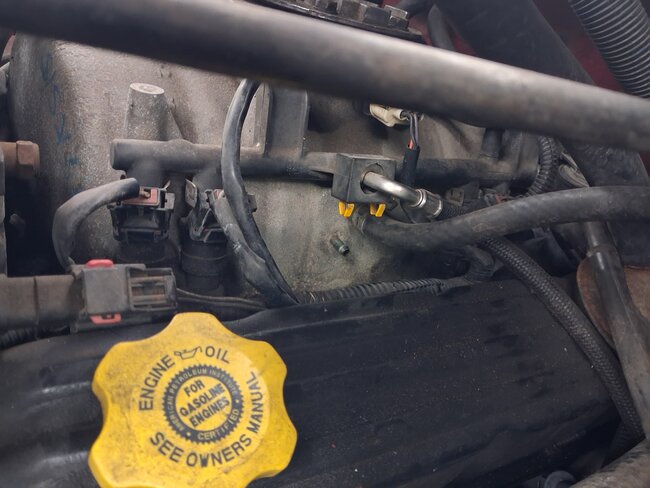

Ok goodmorning im trying to figure out all the vacuum lines and which ports go to what vacuum lines and also the hose that come from the transmission and transfer case. I tried looking for a image online and no luck but if any visual description could be a nice help but any help is appreciated. Thank you
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Oct 14, 2026 at 4:51 AM
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,491 POSTS

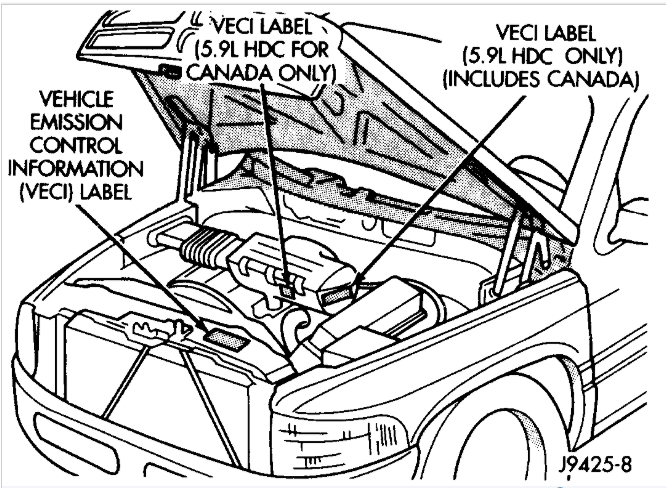

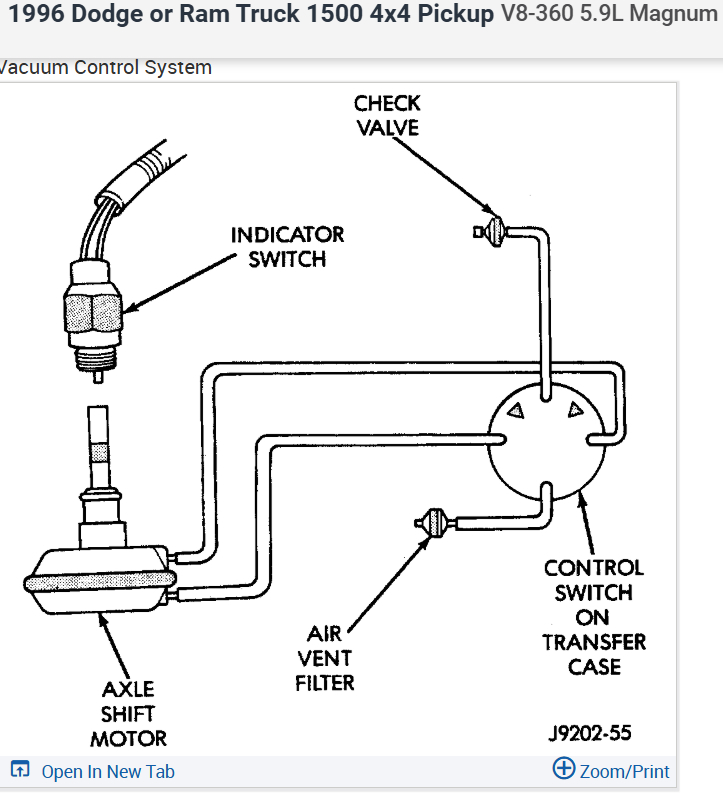

Here is the vacuum line diagrams for the transfer case and the location of the diagram for the engine which is on your truck already.
